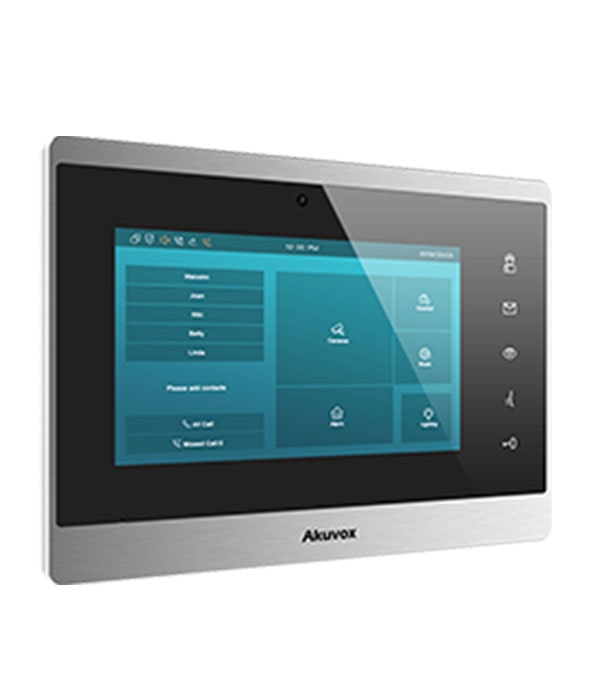

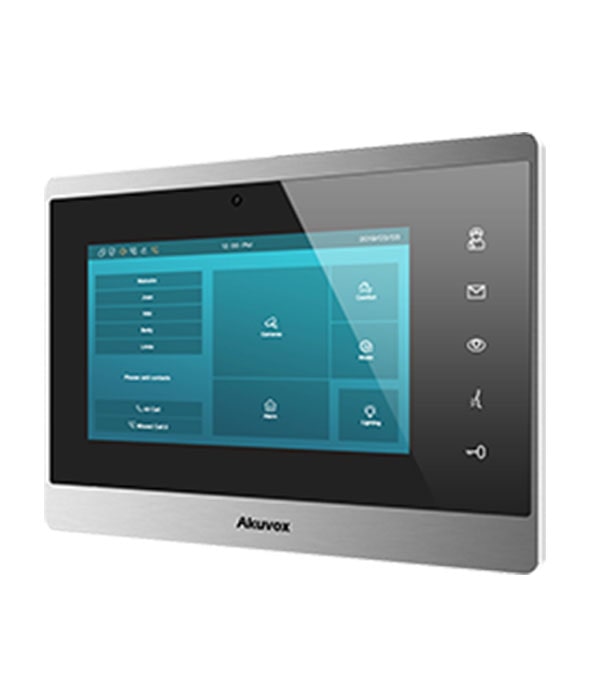

AKUVOX IT82W INDOOR MONITOR WITH PROGRAMMABLE SOFT-TOUCH BUTTONS STANDARD VERSION
SIP Indoor unit (Android Version)
1.7? capacitive touch screen with energy-saving mode
2.Reception of an HD picture from the door communicator
3.Two-way communication based on SIP v2.0 protocol
4.Powered by PoE or external source
5.Supports US or European electrical wall box mounting
At a Glance
- Ultra-clear, stylish appearance;
- 7-inch capacitive touch screen with energy saving mode;
- Built-in 1MP CMOS camera;
- Two-way audio communication with other units in the network;
- Complies with SIP standard for easy integration in every SIP capable PBXes;
- Powered by PoE or external source
- Support US or European electrical wall box mounting
Physical & Power
- Front panel: Aluminum
- RAM / ROM: 2GB / 8GB
- Display: 7 Inch TFT LCD
- Screen: 7 Inch capacitive touch screen
- Wi-Fi: IEEE802.11 b/g/n, @2.4GHz
- Camera: 1MP camera, CMOS
- Buttons: 5 capacitive buttons, programmable
- Memory slot: 1 SD slot
- RS485 port: Support
- Relay out: 1
- I/O: 8
- Microphone: -38dB
- Speaker: 4? / 2W
- Ethernet ports: 2xRJ45, 10/100Mbps adaptive
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Installation: Wall-mounted & Desktop
- Dimension: 232x160x27.8mm
- Working Humidity: 10~90%
- Working Temperature: -10?C ~ +45?C
- Storage Temperature: -20?C ~ +70?C
Touch Screen Display
- Display Mode: Active matrix TFT, Transmissive
- LCD Size: 7inch (Diagonal)
- Aspect Ratio: 16:9
- Resolution: 1024×600
- Contrast ratio: 800:1
- Luminance: 270 cd/m2
- Viewing Angle: 75 Left, 75 Right, 70 Upper, 75 Lower
- Touch Screen: Projected capacitive
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711?, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Automatic Gain Control
Video
- Streaming formats: H.263 & H.264
Networking
- Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
Deployment & Maintenance
-
- Auto-Provisioning
Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
