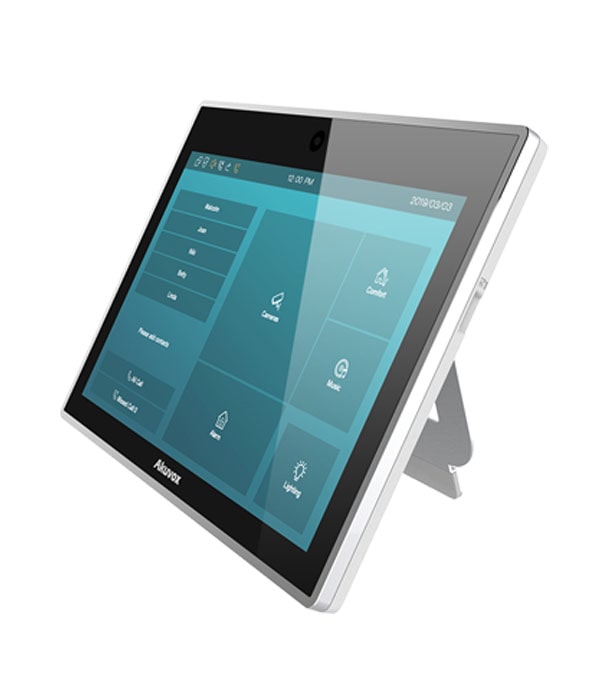

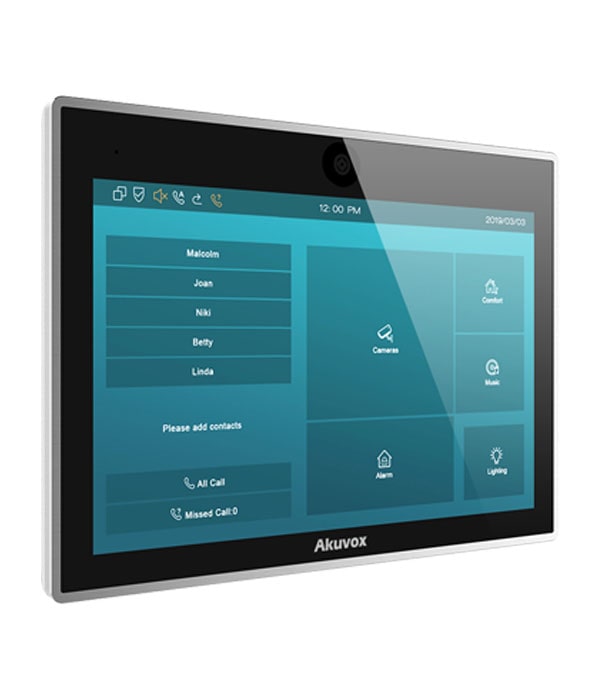

AKUVOX IT83R AN INDOOR MONITOR AS WELL AS AN IPPBX STANDARD VERSION
SIP Indoor unit (Android Version)
1.Ultra clear, stylish, and metal appearance
2.10? capacitive touch screen with energy-saving mode
3.Reception of an HD picture from the door communicator
4.Two-way communication based on SIP v2.0 protocol
5.Powered by PoE or external source
6 Supports the US or European electrical wall box mounting 7.Tamper resistant design Stand (optional)
At a Glance
- Ultra-clear, stylish appearance;
- 10-inch capacitive touch screen with energy saving mode;
- Reception of a HD picture from the door communicator;
- Two-way audio communication with other units in the network;
- Complies with SIP standard for easy integration in every SIP capable PBXes;
- Powered by PoE or external source
- Support US or European electrical wall box mounting
- Tamper resistant design
Physical & Power
- Front panel: Aluminum
- RAM / ROM: 2GB / 8GB
- Display: 10 Inch IPS LCD
- Screen: 10 Inch capacitive touch screen
- Memory slot?1 Micro SD slot
- RS485 port: Support
- Relays out: 2
- Bell in: 1
- I/O: 8
- Microphone: -58dB
- Speaker: Dual speakers, 4? / 2W
- Ethernet ports: 2xRJ45, 10/100Mbps adaptive
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Tamper resistant: Support
- Installation: Wall-mounted & Desktop
- Dimension: 251×182.5×29.75mm
- Working Humidity: 10~90%
- Working Temperature: -10?C ~ +45?C
- Storage Temperature: -20?C ~ +70?C
Touch Screen Display
- Display Mode: Normally black, Transmissive
- LCD Size: 10inch (Diagonal)
- Aspect Ratio: 16:10
- Resolution: 1280×800
- Contrast ratio: 900:1
- Luminance: 280 cd/m2
- Viewing Angle: 80? Left, 80? Right, 80? Upper, 80? Lower
- Touch Screen: Projected capacitive
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711?, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
- Automatic Gain Control
Video
- Streaming formats: H.263 & H.264
Networking
- Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP
p style=”font-size:18px;”>Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Villas
- Apartment complexes
- Home automation systems
- Modern interiors
