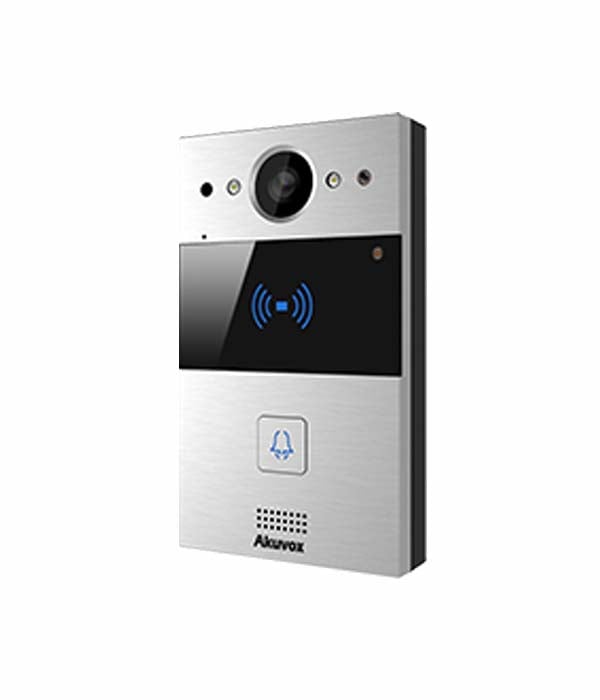

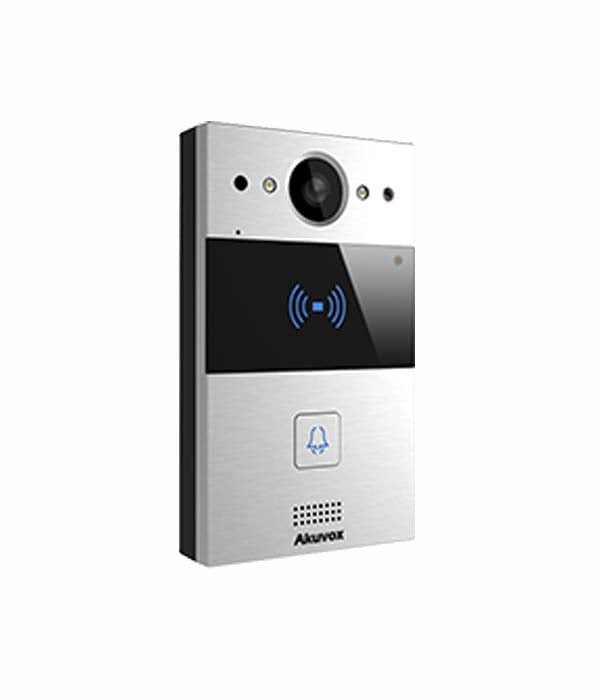

AKUVOX R20A SIP INTERCOM WITH ONE BUTTON (VIDEO & CARD READER)

AKUVOX R20A SIP INTERCOM WITH ONE BUTTON (VIDEO & CARD READER)

Physical & Power

• Front panel: Aluminum alloy
• Camera: 2M pixels, automatic lighting
• Button: 1 call button
• Light sensor: Support
• Infrared sensor: Support
• Wiegand port: Support
• RS485 port: Support
• RF card reader: 13.56MHz (with NFC) & 125kHz
• Relays out: 2
• Inputs: 2
• Microphone: -40dB
• Speaker: 4Ω / 3W
• Ethernet port: RJ45, 10/100Mbps adaptive
• 802.3af Power-over-Ethernet
• 12V DC connector (if not using PoE)
• Water-proof & Dust-proof: IP65
• Installation: Flush-mounted or Wall-mounted
• Flush-mounted DIM: 189x120x56.5mm
• Wall-mounted DIM: 145x85x27.5mm
• Working Humidity: 10~90%
• Working Temperature: -40°C ~ +65°C
• Storage Temperature: -40°C ~ +70°C

Video

• Sensor: 1/2.7”, CMOS
• Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
• Video codec: H.264, H.265
• Video resolution: up to 1920x1080p
• Max. image transfer rate: 1080p – 25fps
• Viewing angle: 110°(H) / 58°(V)
• High intensity IR LEDs for picture lighting during dark hours with internal light sensor
• Compatible to 3rd-Party-Video components, e.g. NVRs

Networking & Protocol

• Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Application Scenario

• • Office door phone with on-site or hosted IP-PBX
  • Remote site entry over Internet
  • Apartment/flat intercom with door access control
