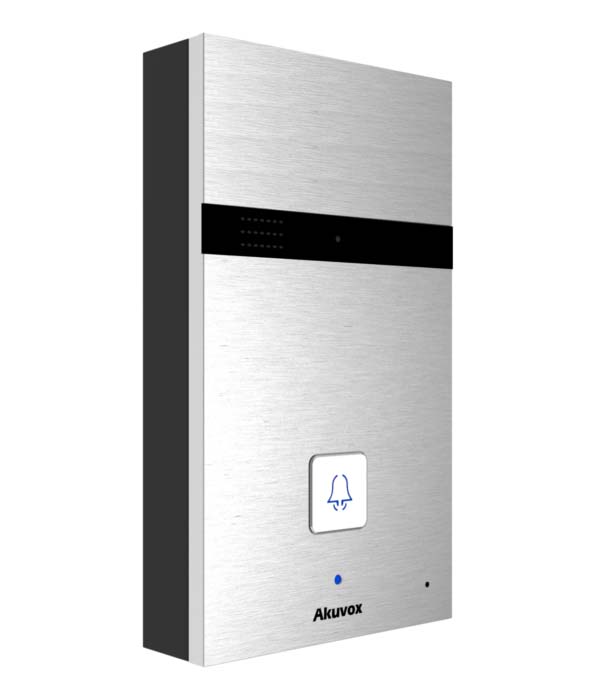

AKUVOX R23P SIP ONE-BUTTON DOORPHONE WITHOUT RF CARD READER
SIP Intercom with one Button (Audio)
Body material: all-aluminum
Output Relay: 2 output relays for door opener 3.Water-proof &
Dust-proof: IP65
Installation: Surface Mount
PoE (IEEE802.3af, Power-over-Ethernet);
Two-way audio communication over IP networks with Echo Cancel
Complies with SIP standard for easy integration in every SIP PBX
Features
- Front panel: Aluminum
- Button: 1 call button
- Wiegand port: Support
- RS485 port: Support
- Relays out: 2
- Inputs: 3
- Microphone: -40dB
- Speaker: 8 / 2W
- Ethernet port: RJ45, 10/100Mbps adaptive
- Power out: 12V/400mA
- 802.3af Power-over-Ethernet
- 12V DC connector (if not using PoE)
- Water-proof & Dust-proof: IP65
- Installation: Flush-mounted or Wall-mounted
- Flush-mounted DIM: 213x124x68mm
- Wall-mounted DIM: 190x110x40mm
- Working Humidity: 10~90%
- Working Temperature: -20C ~ +55C
- Storage Temperature: -40C ~ +70C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833),
Deployment
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
Door Entry Feature
- Relays controlled individually by DTMF tones
Networking & Protocol
- Protocols support: IPv4, HTTP, HTTPS, FTP,SNMP, DNS, NTP, TCP, UDP, ICMP, DHCP, ARP
Application Scenario
- Office door phone with on-site or hosted IP-PBX
- Remote site entry over Internet
- Apartment/flat intercom with door access control
SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
