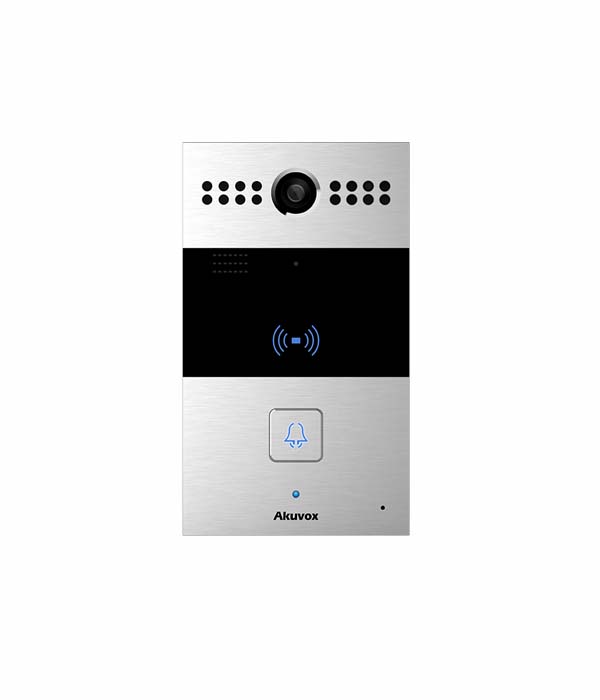

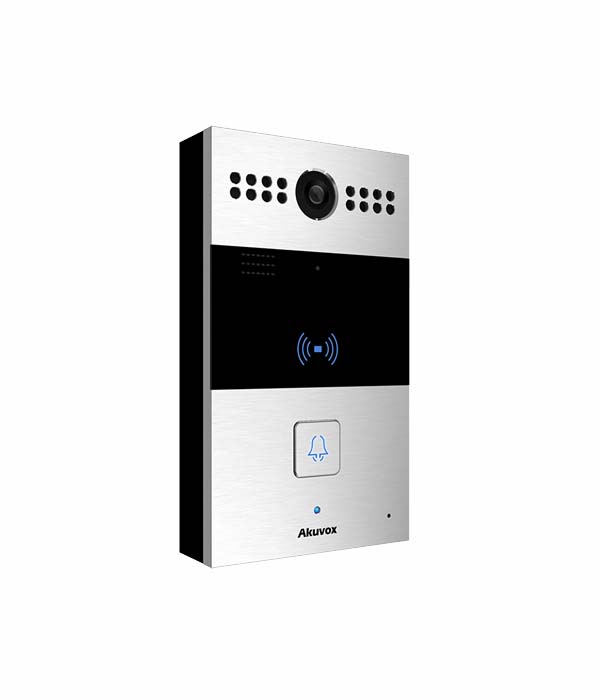

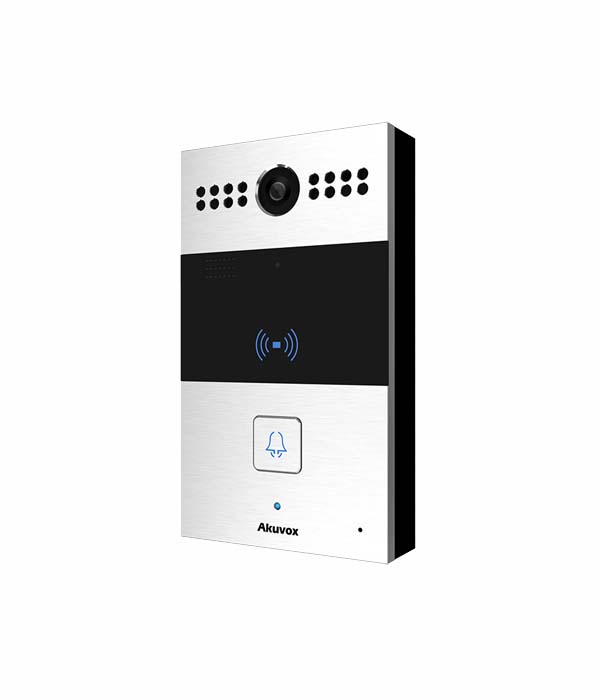

AKUVOX R26C SIP VIDEO ONE BUTTON DOORPHONE WITH RF CARD READER
SIP Intercom with one Button (Video & Card reader)
Body material: Zinc alloy
Camera: 3M pixels, automatic lighting, Wide-angle camera: 120?
RF Card Reader 13.56MHZ&125KHZ Card reader
Output Relay: 2 output relays for door opener 5.Water-proof &
Dust-proof: IP65
Installation: Surface Mount model or Flush Mount model
PoE (IEEE802.3af, Power-over-Ethernet);
Two-way audio communication over IP networks with Echo Cancel
Complies with SIP standard for easy integration in every SIP PBX;
Physical & Power
- Front panel: Aluminum
- Camera: 2M pixels, automatic lighting
- Button: 1 call button
- Light sensor: Support
- Infrared sensor: Support
- Wiegand port: Support
- RS485 port: Support
- Speaker: 8? / 2W
- Power out: 12V/400mA
- ?802.3af Power-over-EthernetMicrophone: -40dB
- Ethernet port: RJ45, 10/100Mbps adaptive
- 12V DC connector (if not using PoE)
- Water-proof & Dust-proof: IP65
- Installation: Flush-mounted or Wall-mounted
- RF card reader: 13.56MHz
- Relays out: 2
- Inputs: 3
- Microphone: -40dB
- Flush-mounted DIM: 213x124x68mm
- Wall-mounted DIM: 190x110x40mm
- Working Humidity: 10~90%
- Working Temperature: -20C ~ +55C
- Storage Temperature: -40C ~ +70C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711?, G.729
- Broadband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/3?, CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 720p
- Video codec: H.264
- Video resolution: up to 1280x720p
- Max. image transfer rate: 720p x 30fps
- Viewing angle: 120(H) / 64(V)
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- Compatible to 3rd-Party-Video components, e.g. NVRs
Door Entry Feature
- Relays controlled individually by DTMF tones
- Camera permanently operational
- Auto-night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
- Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP,DHCP, ARP
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
- Office door phone with on-site or hosted IP-PBX
- Remote site entry over Internet
- Apartment/flat intercom with door access control
