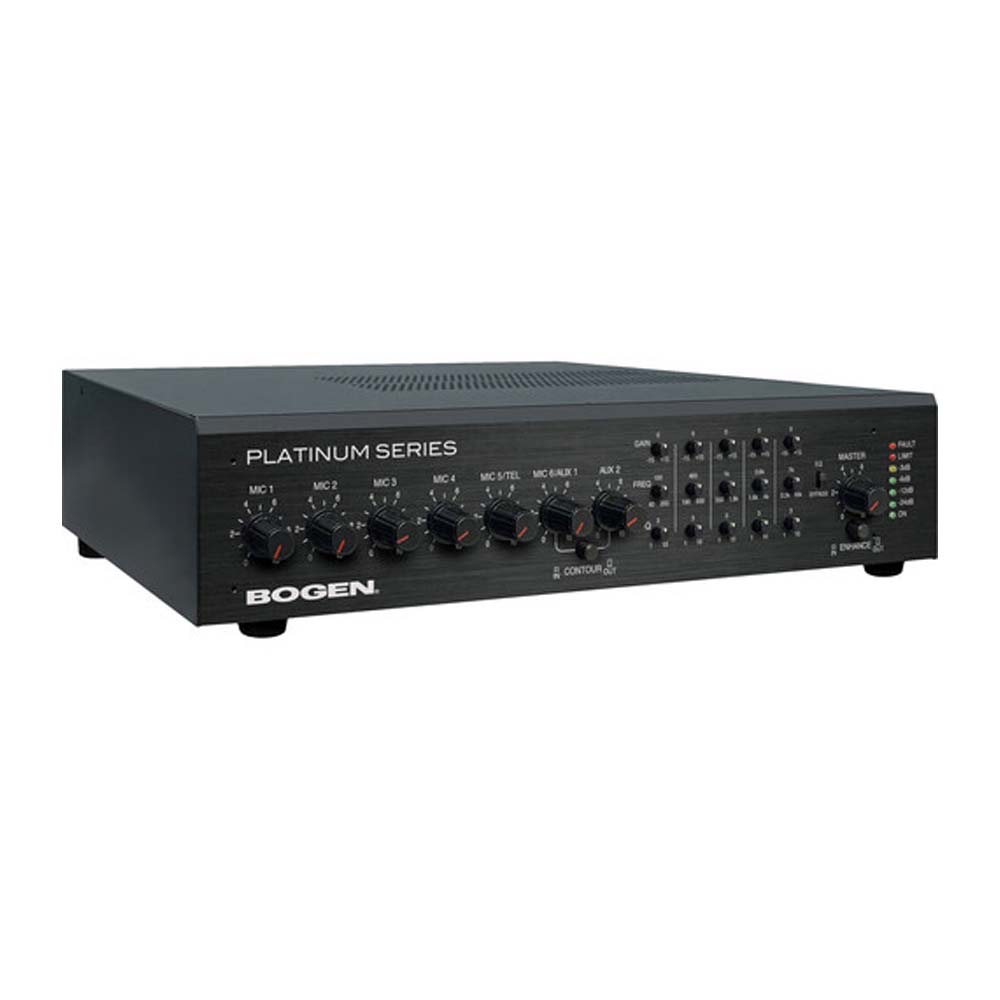

Bogen PS60 Platinum Series 60W,8-OHM,70V Amp

SKU : PS60 Category

The Platinum Series model lineup includes the PS60 (60W), PS120 (120W), PS240 (240W), and PS600 (600W). Bogen?s Platinum Series Public Address Amplifiers offer powerful features rarely found in other commercial amplifiers ? such as a 5-band full parametric EQ.

Bogen PS60 Platinum Series 60W,8-OHM,70V Amp

The Platinum Series model lineup includes the PS60 (60W), PS120 (120W), PS240 (240W), and PS600 (600W). Bogen?s Platinum Series Public Address Amplifiers offer powerful features rarely found in other commercial amplifiers ? such as a 5-band full parametric EQ.

With seven input channels, 5-band parametric EQ, and capable paging functionality, the Bogen Communications PS60 Platinum Series 60W RMS public address amplifier delivers a powerful, value-rich feature set for restaurants, retail stores, hotels, schools, and houses of worship using 8-ohm or 25/70V speaker systems. Plus, its universal power supply, integrated thermal and overload protection, and tamper-resistant front cover make it ideal for installed sound applications.

The PS60 can accept four microphones via balanced XLR inputs with switchable-per-channel 13V phantom power, a Euroblock mic/tel input, a mic/aux input, and a dedicated aux input. Use the preamp out and power amp input to insert outboard processing, and route the tape output to an external audio recorder. The PS60 sports several features designed to improve the quality and intelligibility of the audio?Audio Enhancement for all inputs, automatic level control, loudness equalization for the aux inputs, low-cut filtering, and more.

Specifications

  • Number of Channels
    7
  • Power Rating
    60 W RMS
  • Load Impedance / Voltage
    8 Ohms
    25 / 70 V
  • Protections
    Output Limiter, Thermal
  • Input Sensitivity
    Mic:
    11 mV
    Aux:
    0.09 V
    Telephone:
    0.07 V
  • Input Impedance
    Mic:
    200 Ohms
    Aux:
    10 Kilohms
    Telephone/PBX:
    600 Ohms
  • EQ
    5-Band Parametric EQ
  • Display & Indicators
    Front Panel:
    1 x Multi-Segment LED Meter (Fault/Level/Limit/Power)
  • Cooling
    Convection
  • Dimensions
    16.5 x 3.5 x 13.5″ / 41.9 x 8.9 x 34.3 cm

Features

  • 60W RMS Power Rating
  • 4 x XLR Mic Inputs with Phantom Power
  • Power Amp In, Preamp Out, and Tape Out
  • Audio Enhancement and Auto-Level Control
  • Universal Power Supply
  • Supports 8-Ohm or 25/70V Operation
  • 2 x Euroblock Mic In, 2 x Aux In
  • 5-Band Parametric EQ and Low-Cut Filter
  • Thermal and Overload Protection
  • Includes Tamper-Resistant Front Cover
