BOSCH SECURITY SYSTEMS ENKIT-SDI2 Inovonics Wireless Interface Kit for GV4 Panels, Includes B820 SDI2 Interface, Inovonics EN4200 Receiver, Enclosure
Inovonics Wireless Interface Kit For Gv4 Panels. Includes B820 Sdi2 Interface, Inovonics En4200 Receiver And Enclosure. The EN4200 Serial Receiver is a gateway between security transmitters and a Security Systems, Inc. control panel. The EN4200 decodes radio frequency (RF) transmissions from end devices and high-power repeaters, and then outputs the data to the panal via a wireless interface module.

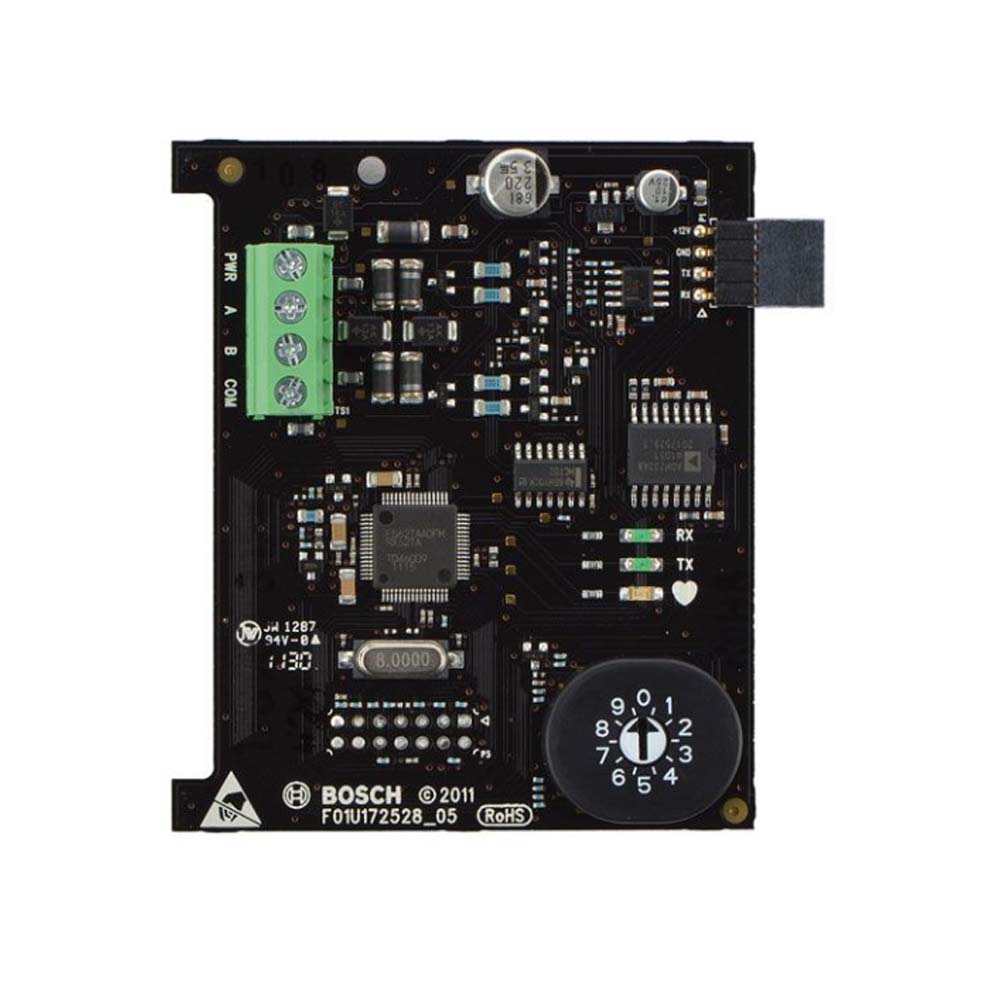

The B820 Inovonics Interface Module is a fully supervised, addressable SDI2 bus device that allows communication between control panels and an Inovonics EN4200 EchoStream Serial Receiver with EchoStream Wireless transmitters. Industrial, commercial, and institutional facilities are typical installations for the B820 module. Paired with an Inovonics EchoStream EN4200 Receiver, the B820 Inovonics Interface Module provides a wireless security solution when connected to the control panel’s SDI2 bus. The B820 switch provides for simple, visual addressing.
Specifications
- Condition New
- Brand /li>
- Home Control Wi-Fi
- Alarm I/O 2/2
Features
- Decoding of RF transmissions for use by the interface and control panel
- Uses reliable frequency-hopping, spread-spectrum technology
- Serial integration with hundreds to thousands of wireless devices
- Provides connectivity to Inovonics EchoStream EN4200 Serial Receiver
- May be installed up to 1000 ft from the control panel, allowing for optimal wireless reception
- Capacity to store any combination of point and keyfob ID’s for a total of 350 wireless devices (combined types) and up to 8 repeater ID’s
- Mounts directly inside the EN4200 Receiver housing, no separate enclosure required
- UL and CSFM Listed
