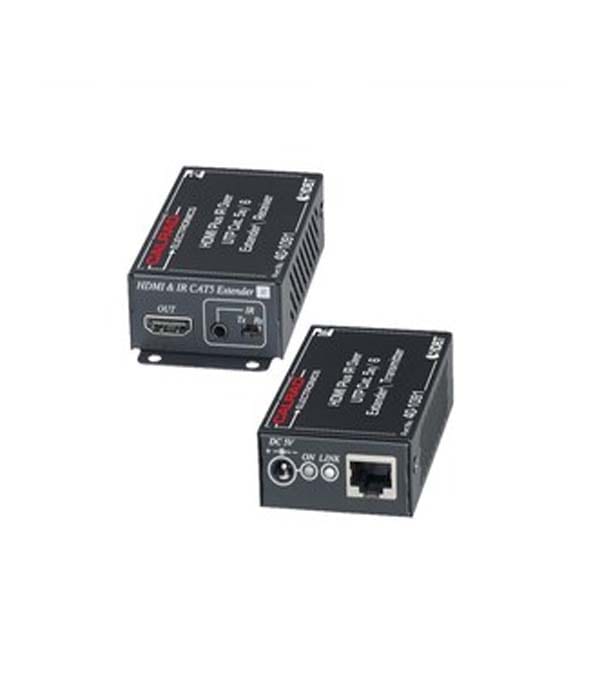

Calrad 40-1091 HDMI HDBaseT EXTENDER 220FT W/IR

Calrad 40-1091 HDMI HDBaseT EXTENDER 220FT W/IR

Calrads small and innovative HDMI & IR Signal over One UTP category 5e/6 cable with HDBaseT classification technology for an extend solution over 70m/230ft; use for small projects that may not need the full feature set of HDBaseT yet still benefit from the signal stability and functions offered by this powerful technology. These devices are a perfect solution for replacing costly standard HDMI cables that are difficult to route thru walls and cabinets. One Cat5e, Cat6 wire using RJ45 terminations deliver digital signals & IR from the transmitter to the receiver. A small class 2 power supply may be required at the receiver side if power from the HDMI source is not sufficient.

Specifications:

• HDTV Resolutions: 480p, 720p, 1080i, 1080p (Max 10.2Gbps, HDMI HIGH SPEED)
• HDBaseT Classification ? HDCP Compliant ? Input TMDS Signal: 5Vpp, Input DDC 5Vpp
• Vertical Frequency Range: 50/60Hz ? 4K by 2K
• HDMI ln/ Out Connectors: 19 pin Female Jack, 1 x RJ45 Shielded Jack each unit.
• DC Power Supply: 2 x 5V, 2A, Switchmode Regulated, 110-220Vac
• Housing: Metal, Black Color
• Dimensions: Transmitter/ Receiver: 3.90″ L x 2.77″ W x 1.10″ H
• Weight: 300g each
