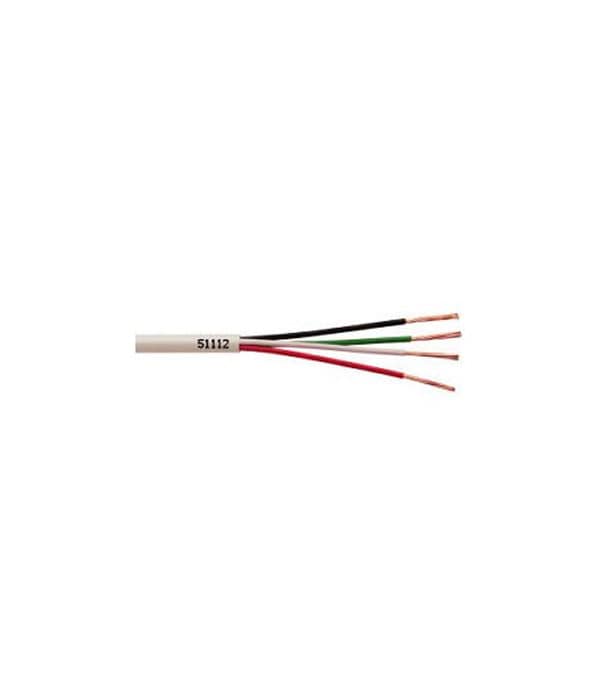

Coleman Cable 511124601 22/4C STR CM 1000ft – White

Coleman Cable 511124601 22/4C STR CM 1000ft – White

The Coleman Cable 511124601 is a 22-gauge 4-conductor cable designed for communication and signaling applications. It features a stranded copper conductor construction, which provides flexibility and ease of installation. The cable is specifically rated for in-wall installation and is suitable for use in both residential and commercial settings.

The “CM” designation indicates that the cable has a flame-retardant jacket, making it safe for use in general-purpose applications. This type of cable is commonly used for low-voltage applications such as security systems, intercom systems, and audio/video installations.

With a length of 1000 feet, the Coleman Cable 511124601 provides ample cable for various installation scenarios. The white color of the cable jacket allows for easy identification and blending with the surroundings.

It is important to note that the specific use and installation requirements may vary depending on the application. It is recommended to consult the manufacturer’s guidelines and local electrical codes to ensure proper installation and compliance.

Features:

• 22 AWG stranded conductors
• 4 conductors
• CM rated for in-wall use
• 1000ft length
• White color
• Sequential footage marking for easy measuring and cutting

Specifications:

• Conductor Size: 22 AWG
• Conductor Material: Stranded Bare Copper
• Number of Conductors: 4
• Cable Length: 1000ft
• Cable Type: CM
• Jacket Color: White
• Insulation Material: PVC
• Voltage Rating: 300V
• Temperature Rating: -20?C to 75?C
• Approvals: UL, RoHS compliant
