Corbin Russwin ML2010-LWA-630-M31 ML2010 Mortise Passage Lockset Lever Trim Only

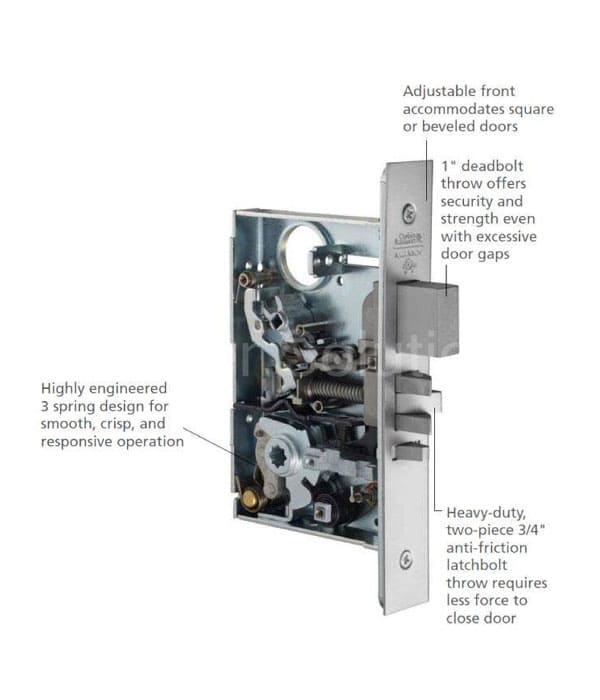

The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Constructed of heavy-gauge steel, the lockbody features our patented Quick Reversible latchbolt, and a 1″ stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000?s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
Further discourage intrusion and abuse with the ML2000VR (Vandal Resistant) Series mortise lock featuring vandal-resistant stainless steel escutcheons with tapered edges and Torx? pin tamper resistant screws. When matched with Corbin Russwin patented high-security Pyramid or Access 3? cylinders, any door can become a formidable barrier to intruders.
The ML2000 Series has a multi-function capability, allowing 12 functions to be configured from one lockbody. The ML2054 entrance function (ANSI F04) uses a universal lockbody with the ability to reconfigure into other functions without disassembling the lock case.
Complement any application with the full range of trim designs and finishes offered with ML2000 Series. From stainless steel security trims to bright brass Vineyard? levers, design continuum can be achieved without forfeiting aesthetics.
Specifications
- Finish: 630/US32D-Satin Stainless Steel
- Finish Description: Satin Stainless Steel
- Function: M31-Full Working Trim-Passage
- Grade: ANSI/BHMA Grade 1

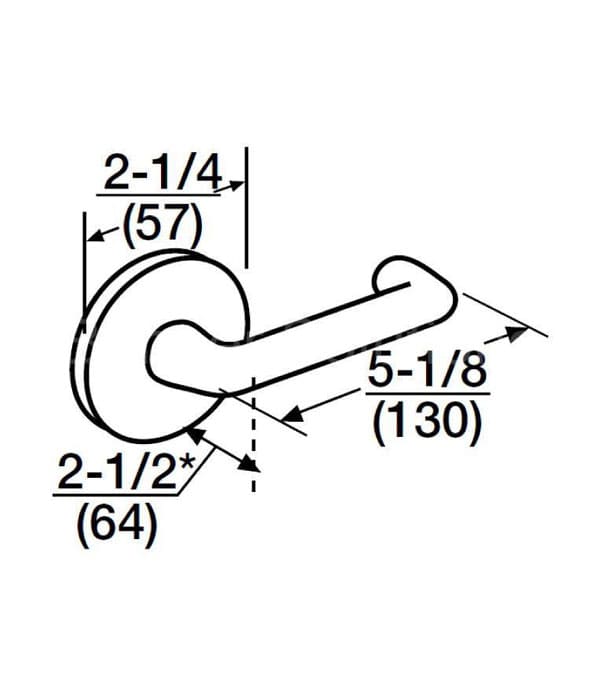

- Lever Style: LW-Lustra
- Manufacturer: Corbin Russwin
- Product Type: Mortise Lock
- Rose/Escutcheon Trim: A-Wrought Rose
- Series: ML2000 Series
Key Advantages
- Patented Quick Reversible feature enables reversal of hands without disassembling the lock case
- Security trims provide a vandalresistant barrier
- Can be used with new or existing Corbin Russwin key systems. Also accepts cylinders of most other manufacturers.
- Provides life safety and security in a single door prep, saving the additional cost of a deadlock
- Thru-bolted trim designs for proper alignment and increased security
- Multi-function lockbody
- Status indicator options provide peace of mind on the locked/unlocked status of a door
Certification
- ANSI/BHMA:
Certified A156.13 Series 1000, operational and security Grade 1
Meets A117.1 Accessibility Code - Federal:
Meets FF-H-106C - UL/cUL-UL10C Positive Pressure:
All locks listed for A label and lesser class doors, 4′ (122cm) x 10′ (305cm) single or 8′ (244cm) x 10′ (305cm) pair (3 hour fire door). Letter F and UL symbol on armored front indicate listing. - California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)
All levers with returns, return to within 1/2″ (13mm) of door face - Windstorm/Hurricane:
Certified (refer to local codes)
