Corbin Russwin ML20906-LL-630-SAF-M92 ML20906 Mortise Electrified Lever Lock Body Only x REX

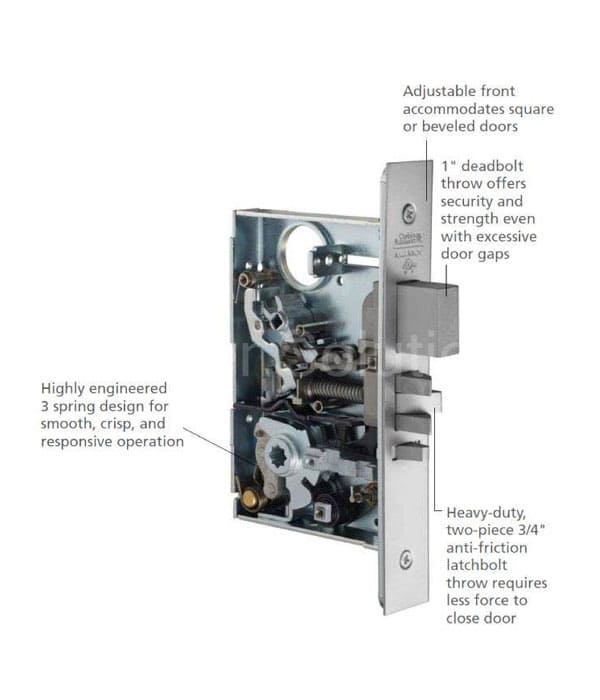

Combine simplicity and access control with the Corbin Russwin ML20900 ECL series electrically controlled mortise lock. Utilizing the proven ML2000 Series mortise lockset with the patented quick reversible latchbolt, the ML20900 series provides remote locking and unlocking. The electrified lock can be installed in a standard mortise prep with slight modification by door manufacturer. The ML20900 ECL is ideal for use where increased security is necessary at all times, such as tenant space, pharmacies, computer rooms, and high security areas.
In applications where increased security is required, look no further than the ML2000VR Vandal Resistant Trim. This cast stainless steel trim features tapered edges, double through bolts, torx-pin tamper resistant screws and the lever remains attached to the escutcheon when the spindle is broken.
Access control doesn?t mean a loss of visual appeal. The Vineyard? Collection and the Mus?o? Collection feature beautifully designed levers, perfect for high-profile applications where pleasing aesthetics is a must.
Specifications
- Electric Options: M92-Request To Exit
- Finish: 630/US32D-Satin Stainless Steel
- Finish Description: Satin Stainless Steel
- Function: 906-Electrified Fail Safe
- Lever Style: Lockbody
- Manufacturer: Corbin Russwin
- Product Type: Electronic Mortise Lock
- Series: ML2000 Series
Key Advantages
- Patented Quick Reversible feature enables reversal of hands without disassembling the lock case
- Security trims provide a vandalresistant barrier
- Can be used with new or existing Corbin Russwin key systems. Also accepts cylinders of most other manufacturers.
- Provides life safety and security in a single door prep, saving the additional cost of a deadlock
- Thru-bolted trim designs for proper alignment and increased security
- Multi-function lockbody
- Status indicator options provide peace of mind on the locked/unlocked status of a door
Certification
- ANSI/BHMA:
Certified A156.13 Series 1000, operational and security Grade 1
Meets A117.1 Accessibility Code - Federal:
Meets FF-H-106C - UL/cUL-UL10C Positive Pressure:
All locks listed for A label and lesser class doors, 4′ (122cm) x 10′ (305cm) single or 8′ (244cm) x 10′ (305cm) pair (3 hour fire door). Letter F and UL symbol on armored front indicate listing. - California State Reference Code:
(Formerly Title 19, California State Fire Marshal Standard)
All levers with returns, return to within 1/2″ (13mm) of door face - Windstorm/Hurricane:
Certified (refer to local codes)
