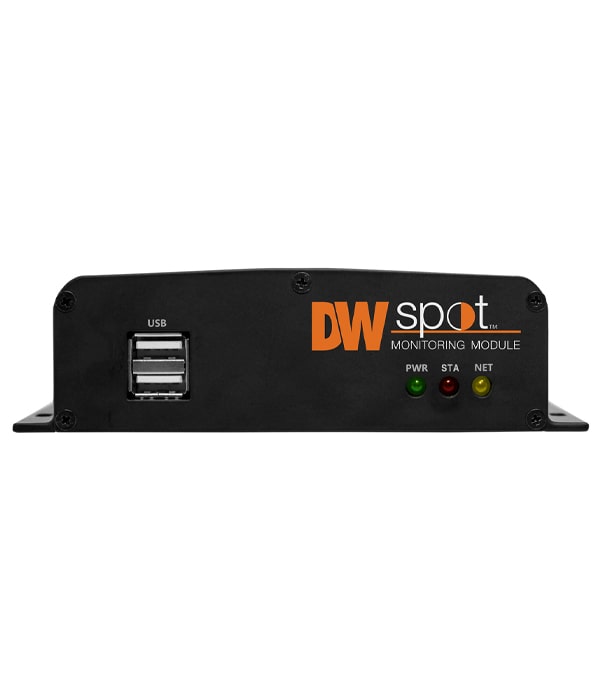

Digital Watchdog DW-HDSPOTMOD Spot Monitoring Module
The DW-HDSPOTMOD from Digital Watchdog is a monitoring module that allows you to directly view up to 4 cameras simultaneously without connecting them to a PC or server. This device automatically searches the network and identifies ONVIF-compliant IP cameras, VMAX A1 DVRs, or VMAX IP Plus NVRs.
HD video can be sent to an external monitor (available separately) via HDMI and VGA outputs. H.264 video compression maximizes bandwidth efficiency without compromising video quality. Remote management can be done by CMS, a mobile application, and Internet Explorer. A USB mouse is included for system operation.
Features:
- Suitable for providing public views in retail and office environments, along with providing views
- for security personnel
- Embedded Linux OS
- HDMI and VGA video outputs
- Display frame rate up to 120 fps
- Automatic network search and device registration
- Identifies an unlimited number of ONVIF-compliant IP cameras, Universal HD over Coax VMAX A1 DVRs (via RTSP), or VMAX IP Plus NVRs on your network
- Supports IP cameras up to 5MP
- Drag and drop camera selection from DVRs and NVRs
- Live monitoring of 4 cameras simultaneously, single camera view, and 4-camera full screen sequencing
- Support for 4 AHD, HD-TVI, HD-CVI, and all analog signals to 960H, up to 1080p resolution
- Advanced functions include firmware upgrade by USB and CMS, import & export settings, warning alarm for system overheating, and digital zoom
- 2 USB ports
- Remote management via CMS, mobile application, and Internet Explorer
- System recovery after power failure via auto-reboot and log file system
- Includes USB mouse for system operation
- Hook-and-loop fastener for mounting to the back of a monitor
