Digital Watchdog DW-VA1P164T VMAX A1 Plus 16-Channel 5MP Analog HD DVR with 4TB
Stream and record up to 16 video channels with the VMAX A1 Plus 16-Channel 5MP Analog HD DVR with 4TB HDD from Digital Watchdog. Supporting AHD and HD-TVI signals up to 5MP and CVBS signals up to 960H, this recorder offers a seamless upgrade to HD resolution using standard coax cabling. The VMAX A1 Plus can record 5MP video at up to 10 fps per channel or 1080p video at up to 30 fps per channel. Up-the-coax (UTC) remote configuration is available with all compatible cameras.
The DVR supports up to 20TB of HDD storage and comes with a 4TB HDD preinstalled. H.264 compression is used to keep file sizes manageable while maintaining recording and playback quality. The recorder’s interface includes ports for two-way audio communication and an RS-485 serial port for keyboard & PTZ control, as well as HDMI & VGA connections for video output. The HDMI connection can output up to 4K UHD resolution video.
Features:
- Universal HD-over-coax DVR
- Records AHD and HD-TVI signals up to 5MP
- Records CVBS signals up to 960H
- H.264 video compression
- Dual streams for separate local recording and network transmission
- Network bandwidth control (25 kb/s to 1000 Mb/s)
- Time synchronization by NTP server
- Local backup by USB and CMS over the network and FTP
- Auto-reboot and journaling file system
- Embedded Linux operating system
- 16-channel recording at 5MP resolution, 160 fps total frame rate
- 16-channel recording at 1080p resolution, 30 fps per channel
- PathFinder P2P auto port forwarding
- C3 CMS and event server software for up to 144 channels
- Event camera group recording
- Complete system analysis with real-time system and network status monitoring
- Applications for iOS & Android smartphones/tablets and Apple TV
- Mac-compatible remote ACS software
- OSD and PTZ control via coax (UTC)
- Hybrid signal support with automatic camera detection
- Instant channel swap?no need to disconnect or reboot the DVR
- Snapshot Notify sends camera notifications to email CMS

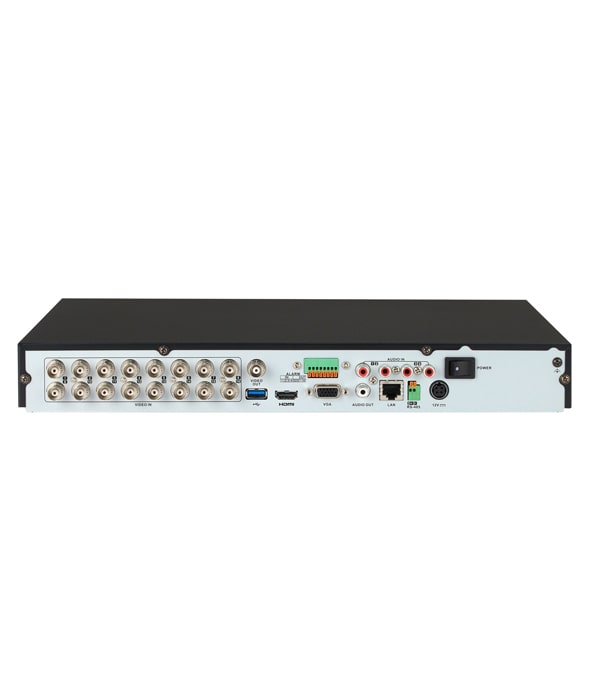

- HDMI, VGA, and spot video outputs
- HDMI output supports resolutions up to UHD 4K (3840 x 2160)
- Digital spot monitoring output at D1 resolution
- Two SATA HDD interfaces support a total of up to 20TB (4TB HDD preinstalled)
- HDD calculation and auto recording configuration
- Thumbnail search with 1-hour and 5-minute previews
- 10-second-jump buttons for playback and fast forward
- Event notifications via email, text, and C3 CMS, and push notifications to mobile devices
- Multiplex?live, playback, recording, backup, network, configuration
- 4 x audio inputs and 1 x audio output
- 4 x sensor inputs and 1 x relay output
- Free DDNS service
- Push notifications via DW Mobile
- Easy web-based client with multi-user access
- Help menu on major functions
- Auto and manual firmware upgrades
