Digital Watchdog DWC-MV72Wi28ATW 2.1MP/1080p vandal Dome Cam, 2.8mm

SKU : DWC-MV72Wi28ATW Categories ,

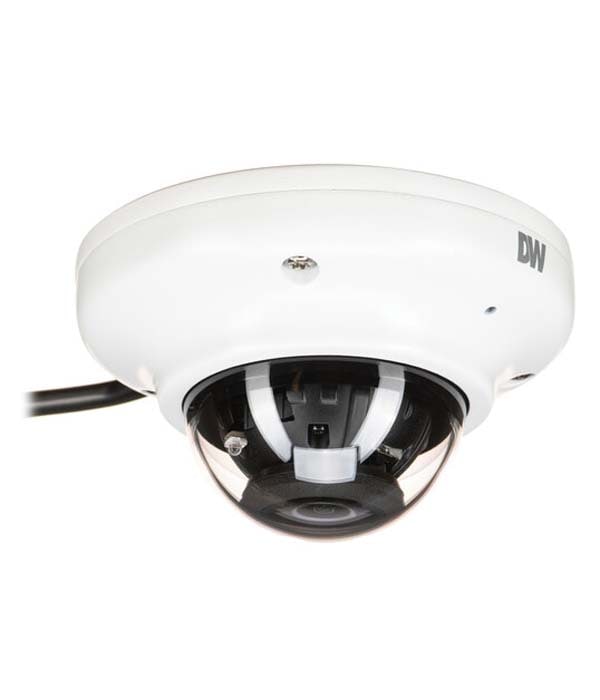

Monitor an indoor or outdoor area with the low-profile MEGApix DWC-MV72WI28ATW from Digital Watchdog. This unit uses a 1/2.8″ CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Smart IR provides up to 80′ of night vision. The camera features a 2.8mm fixed lens that delivers a 111? horizontal field of view, a built-in microphone, and an onboard memory card slot that supports microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

Digital Watchdog DWC-MV72Wi28ATW 2.1MP/1080p vandal Dome Cam, 2.8mm

Features

  • Star-Light Plus color technology for low-light visibility
  • Mechanical IR cut filter enables true day and night functionality
  • Smart IR with intelligent camera sync
  • H.265, H.264, and MJPEG codecs with simultaneous streaming
  • Automatic gain control
  • Dual streaming
  • Motion detection
  • IVA license includes; intrusion, line crossing, counting line, loitering, enter, exit, and tamper detection
  • 100M RJ45 Ethernet port
  • Compatible with DW Spectrum IPVMS, Windows, Mac OS, Linux, Internet Explorer, Chrome, Firefox, Safari, iOS, and Android
  • Mirror and flip orientation
  • PoE and 12 VDC power (power adapter available separately)

Specifications

  • Sensor
    2.1 MP 1/2.8″ CMOS
  • Focal Length
    2.8mm
  • Lens Field of View
    Horizontal: 111?
    Vertical: 62?
  • Power Source
    DC, PoE 802.3af (15 W)
  • Illumination
    IR LEDs up to 80′ / 24.38 m
  • IR Cut Filter
    Mechanical
  • Streaming Resolution
    1920 x 1080 at 30 fps (10 Mb/s )
  • Supported Video Compression
    H.264, H.265, MJPEG
  • Multi-View Streaming
    Yes, 2 Streams
  • Supported Protocols
    APIPA, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IPv4/v6, NTP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP
  • Analytics
    Motion Detection, Intrusion, Line Crossing, Line Counting, Loitering, Enter, Exit, Tamper
  • Event Action
    Recording, Notification, Alarm
