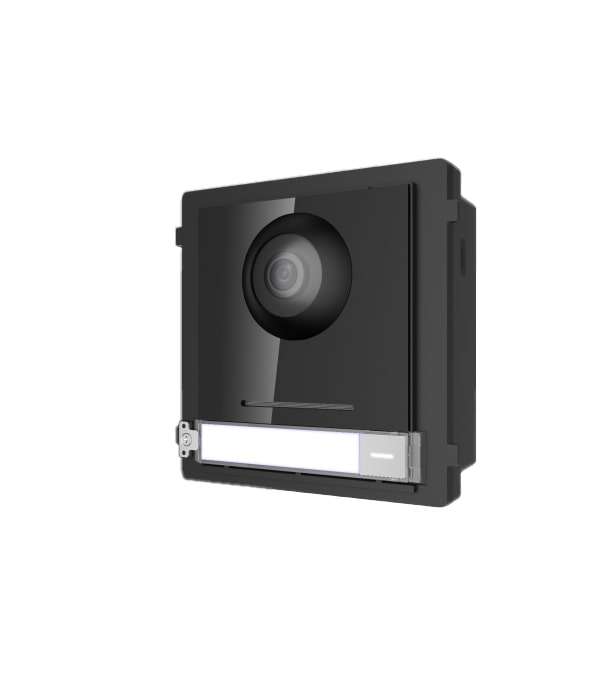

ENS SID-MM1 Video Intercom Module Door Station

ENS UN-OET213HBTS1 Face Recognition Access Control Termina

Features:

• 2 MP HD video intercom function
• Access control function
• Noise suppression and echo cancellation
• Low illumination
• Tampering alarm supported
• Fisheye camera with IR supplement light
• Supports sub-modules? access (max. 8)
• Nametag customization
• Easy to and extend

System parameters:

• Processor: Embedded MCU Processor
• Operation system: Embedded Linux operation system
• Operation method: Physical button

Video Parameters:

• Camera: Low illumination 2 MP HD IR camera
• Video Compression Standard: H.264
• Resolution Mainstream : 1920 ? 1080, Sub stream : 720 ? 480
• BLC Supported
• DNR Supported
• WDR Supported
• Anti-flicker 50 Hz, 60 Hz
• Field of view Horizontal: 180? Vertical: 96?

Audio parameters:

• Audio input: Built-in omnidirectional microphone
• Audio output: Built-in loudspeaker (More than 85 dB within 20 cm)
• Audio compression standard: G.711 U
• Audio compression Rate: 64 Kbps
• Audio quality Noise suppression and echo cancellation
• Light supplement mode: IR supplement

Network:

• Ethernet: 10/100 Mbps self-adaptive Ethernet
• Network protocol: TCP/IP, RSTP
• Tampering alarm: 1

Interfaces:

• Module- connecting: 1
• I/O input: 4
• Debug: 1
• Relay: 2 (30 V, 1 A)

General:

• Physical button: 1
• Power supply: 12 VDC/PoE (IEEE 802.3af)
• Power consumption: ? 10 W
• Working temperature: -40? C to +55? C(-40? F to 131? F)
• Working humidity: 10% to 95%
• Installation: Flush mounting, surface mounting
• Dimension: 98 mm ? 99.8 mm ? 43.9 mm (3.86″ ? 3.93″ ? 1.73″)
