HES 1006CS-630 door strike flush mount

CATEGORIES

HES 1006CS-630 door strike flush mount

SKU : 1006CS-630 Category ELECTRIC STRIKES

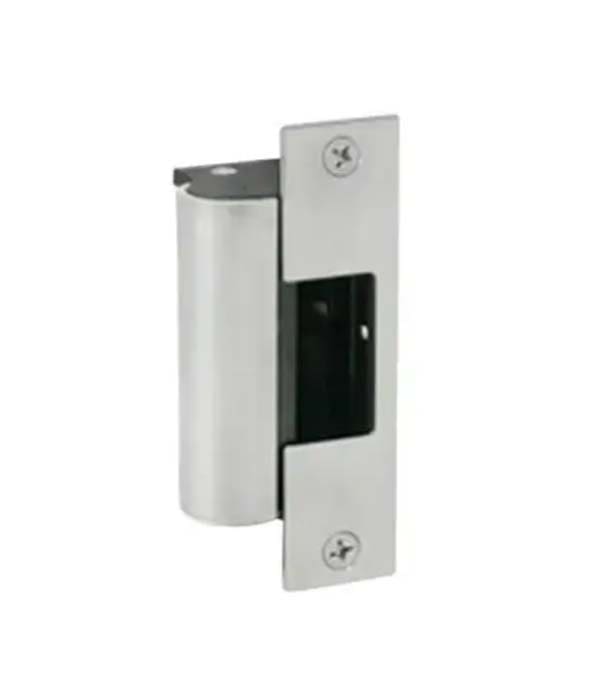

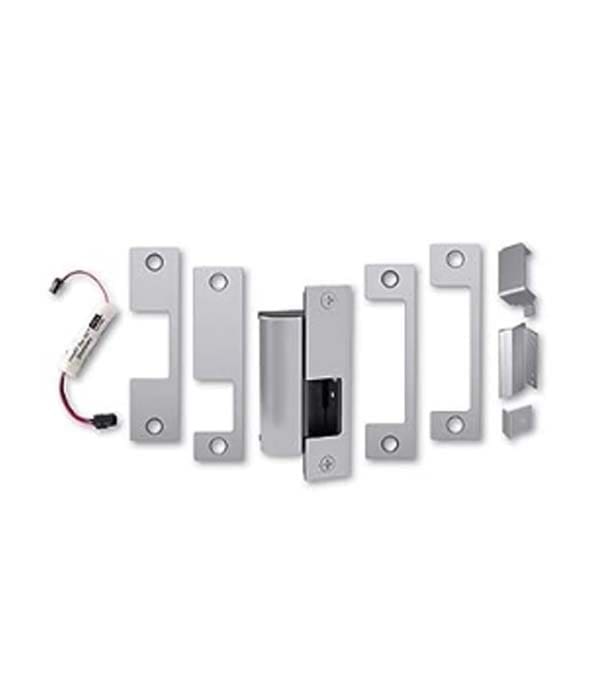

The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8″ strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

HES 1006CS-630 door strike flush mount

Features

Stainless steel construction
Tamper resistant
Static strength 2,500 lbs. (fail secure)
Dynamic strength 350 ft-lbs. (fail secure)
Endurance 1,000,000 cycles
Fail secure (standard)
Accommodates up to 1″ deadbolt
Plug-in connector
ull keeper shims for horizontal adjustment
Dual voltage 12 or 24 VDC continuous duty

Specifications

Adjustability : Horizontal
Surface Mounting : Cutting required
Shim Type : Field Adjustable
Latchbolt Accommodation : 1/2″ – 5/8″
Monitoring Installation : Factory Configured
Monitoring Options : Latchbolt Strike Monitor|Latchbolt Monitoring
Endurance (cycles) : 1,000,000
Dynamic Strength (ft-lbs) : 350
Warranty : SecuriCare five-year, no fault, no questions asked warranty
Lock Type : Cylindrical Lock|Mortise Lock|Mortise Lock with Deadbolt

Brand	HES
