Honeywell 5881ENHC Wireless Reciever W/Encription

Honeywell 5881ENHC Wireless Reciever W/Encription

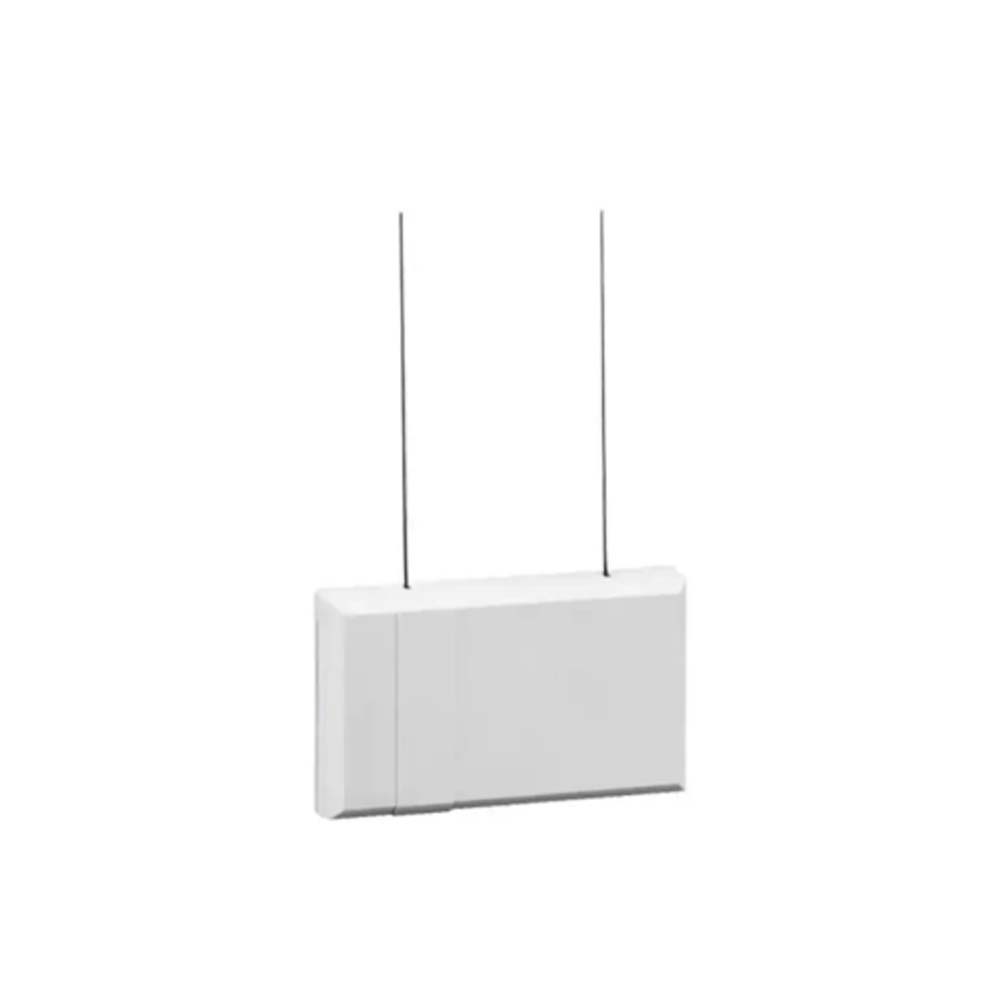

The Honeywell 5881ENH is a wireless receiver that supports as many radio frequency (RF) zones as its security system will support. We recommend checking your security system’s installation guide to ensure your system can handle more than (16) wireless zones. If your Honeywell security system cannot handle more than (16) wireless zones, you may want to purchase the Honeywell 5881ENM instead.

The 5881ENH provides up to 200′ of wireless coverage allowing you to upgrade your security system with any of the easy to install 5800 series wireless devices. You can remotely mount the 5881ENH away from your alarm control panel using a 4-wire connection to get a more centrally located point of wireless reception. Keep in mind that most Honeywell security systems are only capable of using (1) wireless receiver. Therefore, consider where you will be mounting your wireless devices before you mount your wireless receiver. You can use a Honeywell 5800RP wireless repeater to extend the range of your wireless receiver to different areas of your home or business.

The 5881ENH wireless receiver sensitivity and noise rejection feature are both dynamically adjusted to match the ambient conditions of your property. If unacceptably high noise levels or low RF signal levels are detected, a trouble signal will be generated by your security system. Anytime the Honeywell 5881ENH sees an RF signal at the 345MHz frequency, the red LED on the circuit board will pulse quickly. If the wireless receiver is picking up interference, it will flash constantly or go solid. As you will not see the LED when the 5881ENH is installed remotely using the plastic cover, the wireless receiver can generate an RF jam detection signal as long as the feature is enabled in your security system’s programming menus. Anytime the wireless receiver detects a condition that could prevent proper wireless reception, it will trigger the RF jam detection trouble signal.

Features

• UP to 64 zones depending on control panel
• Supports all 5800 Wireless Series non-bidirectional wireless devices
• UL Listed for commercial fire applications
• Front and back tamper for commercial fire/burglary installations
• One or two receivers can be used to provide redundant coverage or extend coverage in large areas
• Spatial diversity system virtually eliminates nulls and dead spots within the coverage area
• Can be mounted remotely, anywhere on the keypad bus, for extended coverage
• Compatible with all Honeywell 5800 Series wireless devices
• Connects to control panel via the keypad bus
