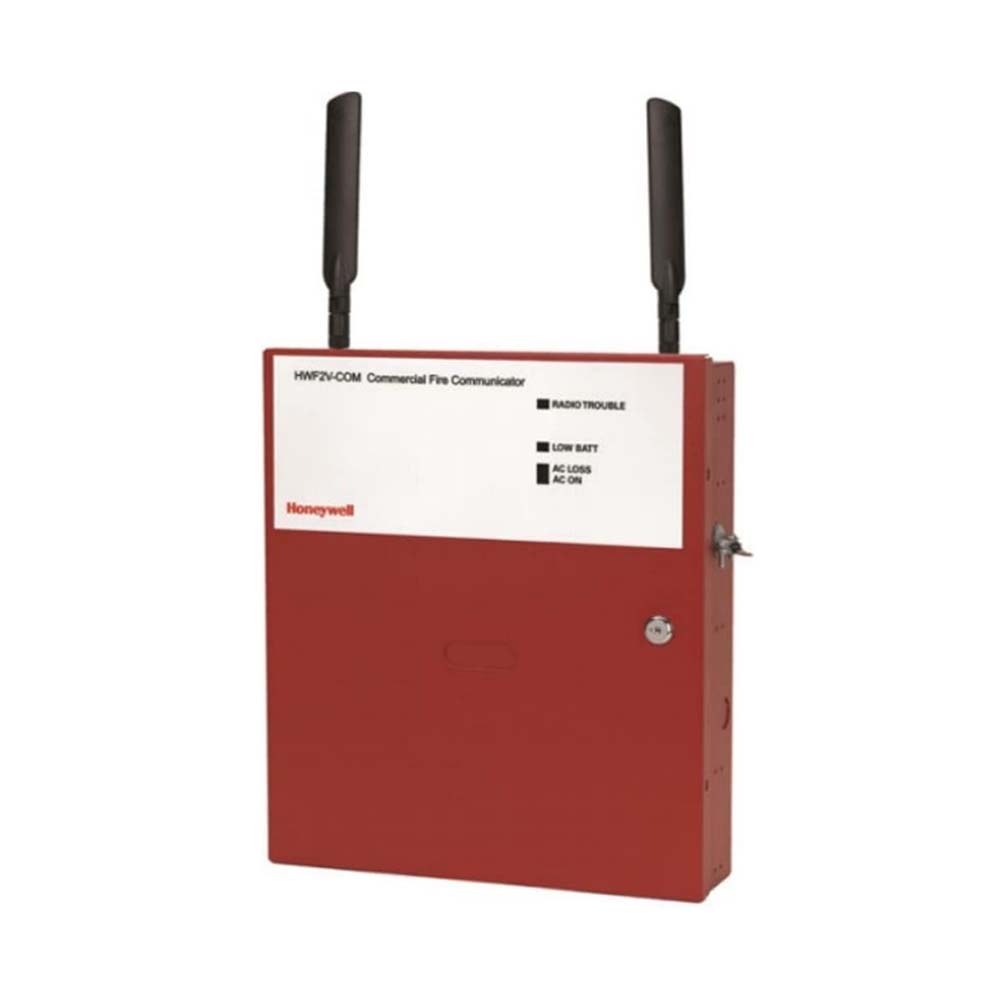

Honeywell HWF2V-COM Fire Alarm Communicator for Verizon LTE

Honeywell HWF2V-COM Fire Alarm Communicator for Verizon LTE

The HWF2-COM Series LTE / IP fire communicators are single or dual path commercial fire alarm communicators that offer Contact ID reporting with any FACP (fire alarm control panel) with a built-in dialer

Models include:
HWF2V-COM (Verizon LTE & IP)
HWF2A-COM (AT&T LTE & IP)
Both models connect directly to the primary or secondary communication ports of a fire panel’s digital alarm communicator transmitter (DACT).

Three selectable reporting paths include: LTE cellular only, IP only, or IP primary with LTE cellular backup. All signals from the HWF2-COM Series are delivered to the AlarmNet? network control center which routes highly encrypted, cybersecured Ethernet data packets via a customer-provided Internet connection or LTE cellular network to the appropriate central station. The AlarmNet? network control center is fully redundant and monitored 24/7

Installation and programming are easy through the AlarmNet 360? website, using the handheld 7720P Programming tool, or using the control panel’s programming mode (for panels that support this option)

Features

• LTE and IP connection tested every day
• Three selectable reporting paths: LTE cellular only, IP only, or IP Primary with LTE cellular backup
• Requires no change to the existing FACP configuration
• Connects directly to the primary and secondary telephone ports of a DACT
• Plan choices range from 5 minute, 60 minute, 6 hour, and 24 hour supervision intervals
• Operates over the following communication protocols: LTE, HSPA+(4G) HSPA (3G)
• Works over any type of customer provided Ethernet 10/100 based network connection (LAN or WAN), DSL model or cable modem
• Data transmits over standard Contact ID protocol but is secured with the industry’s advanced encryption standard (AES 256 bit)
• Supports both dynamic (DHCP) or public and private Static IP addressing
• Reliable connection: IP and cellular connection tested every day
• Built-in, standalone power supply module. Onboard charging circuit design accommodates battery backup. Includes primary power and battery supervision
• Diagnostic LEDs indicate signal strength and status
• Choice of LTE provider services
• QOS: Quality of Service diagnostics via AlarmNet conveys vital communicator information including signal strength, message path used, and when the message was received
• 7720P Handheld programmer for easy setup
