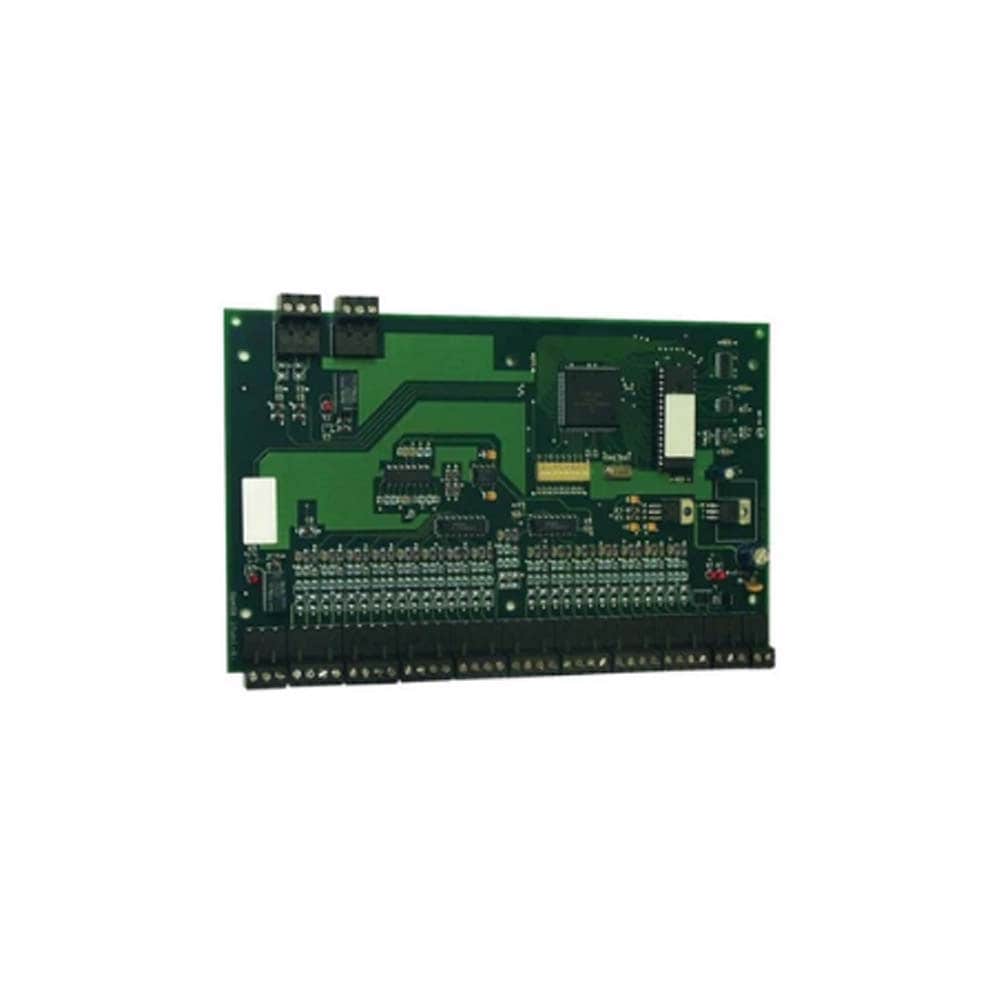

Honeywell PRO32IN PRO3200 INTELLIGENT INPUT BOARD
The PRO3200 professional series family of access control
modules is designed for high density installations.
Supporting up to 16 readers per enclosure and 32 readers
per intelligent controller along with up to 100,000 card
capacity provides a combination of small installation
footprint and superior cost per door ratio.
The PRO22R1 provides I/O support for one card access
reader, while the PRO32R2 supports two card access
readers. Both interface with the intelligent control module
(PRO32IC). In the event that communication to the
intelligent control module is lost, the card access readers
can be individually configured to allow entrance based on
security needs. This customization allows for a door to be
configured as locked, unlocked, or access only via valid
facility code.
The PRO32OUT interfaces with the intelligent control
module
(PRO32IC) providing up to 12 or 16, Form C, 12 VDC, 2A
relay output controls depending if the board is rack or tilemounted and power fail and panel tamper when tile
mounted. Relays may be used for elevator control, status
annunciation and for general facility control, such as door
monitoring.
Features
- Modular design fits a wide variety of applications
- Up to 9 modules, power-supply and battery can be
accommodated by the PRO22ENC1, PRO22ENC2 and
PRO22ENC5 (no battery) enclosures - User programmable relay outputs allow for specific
control needs - User programmable alarm inputs offer flexible system
configuration and control - RS485 communication to all modules
- Analog to digital converter technology provides digital
filtering and input conditioning - Dedicated cabinet tamper and power monitor inputs
- Supports the choice of normally open, normally closed,
supervised, and non-supervised circuits - Supports a wide range of reader technologies including
Wiegand, magnetic stripe, proximity, and keypad - System off-line modes customizable per reader include
facility code access, locked (no access), and unlocked
(full access) - Supports multiple reader and card formats for maximum
flexibility and security options - Operating modes include locked, unlocked, facility code, card
only, card and PIN, card or PIN and PIN only - Communication to the host is via either 10/100 Ethernet or
RS-232(both are standard) - Alarm circuit type – normally open, normally closed, nonsupervised, supervised (with correct EOL). Meets
requirements for UL294 and CUL - Any combination of 16 I/0 or readers modules may be
connected to the PRO32IC RS485 ports. 4,000 ft
(1,250 m) total bus length per port - Supports over 50,000 cards and 50,000 transactions
