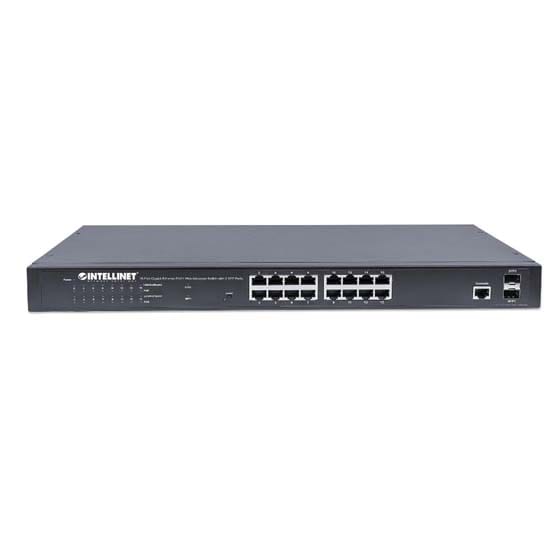

The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports (561341) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with sixteen Gigabit Ethernet ports, all of which support 802.3at/af Power over Ethernet (PoE/PoE+), this switch can power Wireless LAN access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras and more while delivering network speeds of up to 1,000 Mbps.

The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Web-Managed Switch with 2 SFP Ports supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af or IEEE802.3at compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter.

The Intellinet Network Solutions 16-Port Gigabit Ethernet PoE+ Web-Managed Switch provides detailed, real-time information about the connected PoE devices, how much power they draw and how much power is still available. The delay-time-per-port feature reduces the power hike that usually happens at system start, and the PoE priority feature (low, medium, high) allows you to define mission-critical ports that will continue to receive power even if the switch’s power budget limit has been exceeded. Furthermore, you can define the maximum available power per port, turn PoE on and off per port and monitor the current power draw of all connected PoE devices. Finally, the Intellinet Network Solutions switch can send SNMP-traps messages to alert the administrator that the total power draw on the switch exceeds the user-defined threshold value. The Powered Device Monitor (Intellinet Network Solutions PDM) feature keeps an eye on connected PoE devices and restarts them in case they stop responding. What’s more, you can also program the Intellinet Network Solutions PoE switch to restart connected PoE devices based upon a schedule, ensuring that the PoE devices remain stable and operational.

Specifications

• IPv4/v6 dual protocol
• Supports VLAN (tag-based and port-based)
• Supports link aggregation (trunking)
• Supports bandwidth control per port
• Supports port mirroring
• Supports two types of QoS: port-based and DSCP
• 512 kBytes buffer memory
• Supports 8k MAC address entries
• Supports jumbo frames up to 9 kBytes
• Supports Rapid Spanning Tree/Spanning Tree protocol
• Store and forward switching architecture
• Full/half duplex operation
• IEEE 802.3x flow control for full duplex
• Remote Reboot/restart
• LEDs for power, link/activity and PoE

Features

• Provides power and data connection for up to 16 PoE network devices
• Save installation cost by delivering data and power over existing network cables
• Self-Healing Network – the Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic
• Domotz compatible for cloud management (may require firmware upgrade)
• 10/100/1000 auto-sensing ports automatically detect optimal network speeds
• Two small form-factor pluggable GBIC module slots (SFP)
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
• Power output up to 30 watts per port*
• PoE power budget of 220 watts
• 36 Gbps switch fabric
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras, etc.)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• All RJ45 ports with Auto-MDIX and NWay auto-negotiation support
• Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
• IEEE 802.3az (Energy Efficient Ethernet EEE) can be deactivated
• PoE management functions include PoE port settings, priority, power-on delay, scheduled PoE device restart and PoE device monitoring
• SNMP Management and Remote Monitoring (RMON)
• SNMP V1, V2C, V3 with RMON groups 1, 2, 3 & 9
• Fully NDAA-compliant
• Three-Year Warranty
