JBL CONTROL 14C/T-BK 4 INCH CO-AX CEILING SPEAKER BLACK

JBL CONTROL 14C/T-BK 4 INCH CO-AX CEILING SPEAKER BLACK

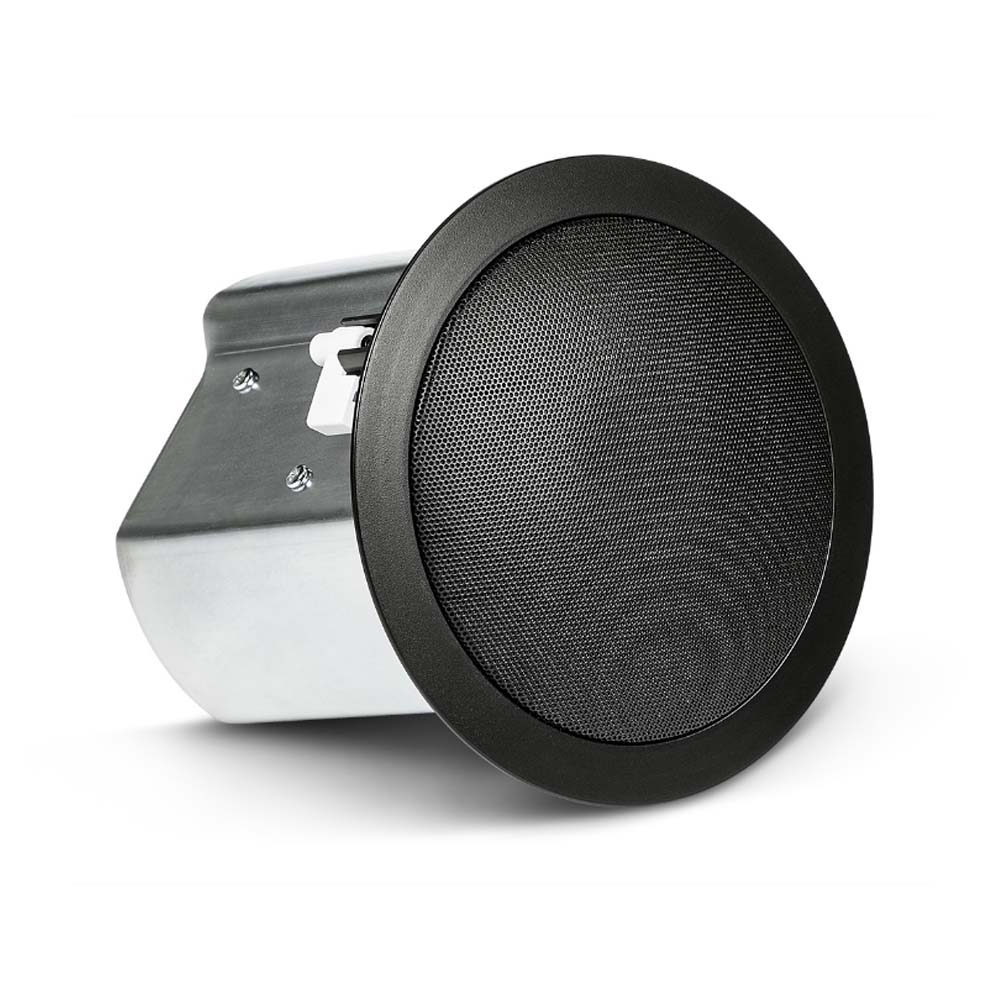

The JBL Control 14C/T-BK is a 4-inch coaxial ceiling speaker designed for commercial audio installations. It delivers high-quality audio performance in a compact and easy-to-install design. The speaker features a 4-inch woofer and a 0.75-inch tweeter, providing a wide frequency response and balanced sound reproduction.

With its low-profile design and sleek black finish, the Control 14C/T-BK blends seamlessly into any ceiling environment. It is ideal for use in restaurants, retail stores, hotels, conference rooms, and other commercial spaces where discreet audio integration is desired.

The speaker has a 70V/100V multi-tap transformer, allowing for easy connection to distributed audio systems. It also features a built-in crossover network, ensuring smooth transition between the woofer and tweeter for optimal sound performance.

The Control 14C/T-BK offers a wide coverage angle, ensuring even sound distribution throughout the listening area. It can be easily installed using the included tile rails, making it convenient for both new installations and retrofit projects.

The JBL Control 14C/T-BK provides reliable and high-quality audio in a compact and visually unobtrusive form factor, making it a versatile choice for a wide range of commercial audio applications.

Features:

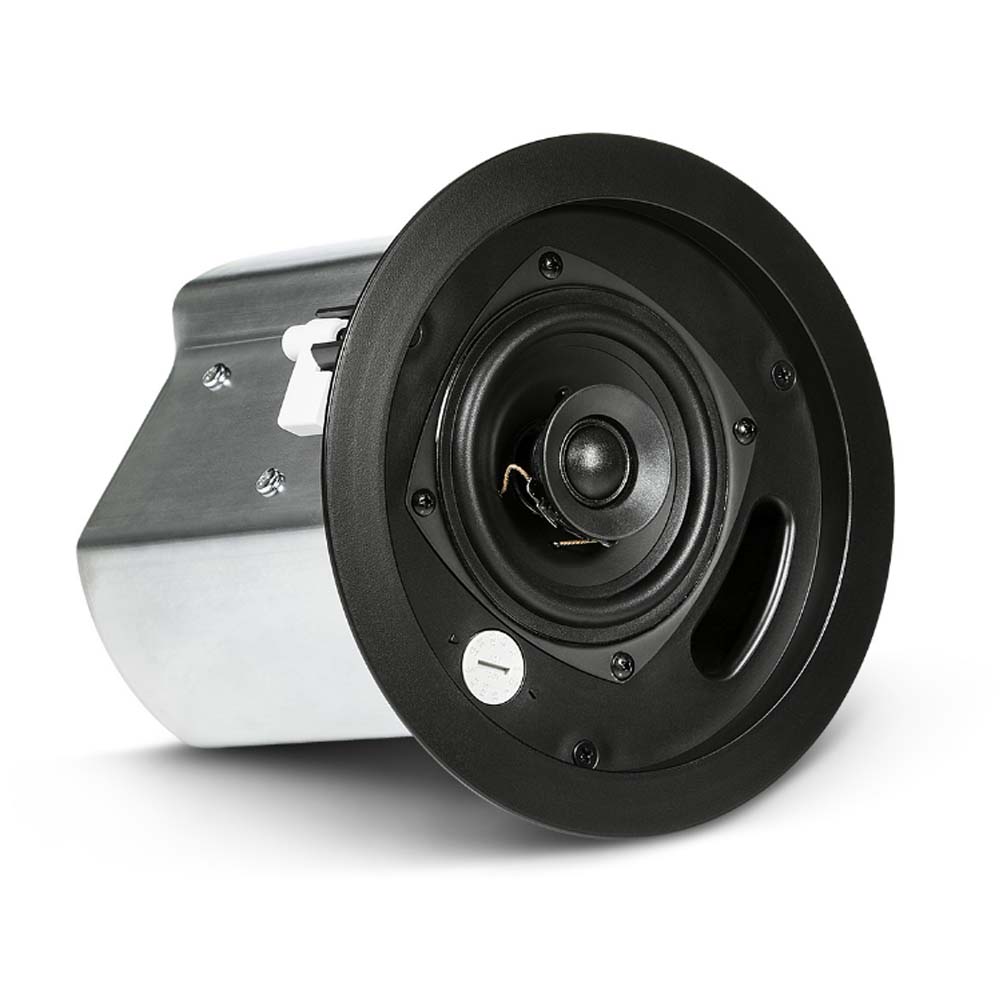

• Coaxial Design: The speaker features a coaxial driver design, with a 4-inch woofer and a 0.75-inch tweeter integrated into a single unit for precise audio reproduction.
• Wide Frequency Response: The speaker offers a frequency response range of 85Hz to 18kHz, allowing for accurate reproduction of both low and high frequencies.
• Smooth Coverage: It provides a wide 90-degree coverage angle, ensuring consistent sound dispersion across the listening area.
• Low-Profile Design: With a compact and low-profile design, the speaker seamlessly blends into any ceiling, providing a clean and unobtrusive appearance.
• Easy Installation: The speaker comes with a built-in mounting system and tile rails for quick and secure installation in drop ceilings. It also includes a cutout template for precise placement.
• Transformer Taps: The speaker features a 70V/100V multi-tap transformer with wattage selector switch, allowing for easy integration into distributed audio systems.
• Sealed Backcan: The sealed enclosure design enhances the speaker’s low-frequency performance and prevents sound leakage into adjacent spaces.
• Paintable Grille: The paintable grille enables customization to match the surrounding d?cor, ensuring a seamless integration with the environment.

Specifications:

• Power Handling: 30 Watts Continuous Program Power, 15 Watts Continuous Pink Noise
• Transformer Taps: 7.5W, 15W, 30W, 60W (70V), 15W (100V)
• Sensitivity: 84 dB (1W/1m)
• Nominal Impedance: 8 Ohms
• Crossover Frequency: 7kHz
• Dimensions (Diameter x Depth): 229 mm x 133 mm (9 in x 5.25 in)
• Cutout Size (Diameter): 200 mm (7.8 in)
• Weight: 1.9 kg (4.2 lbs)
