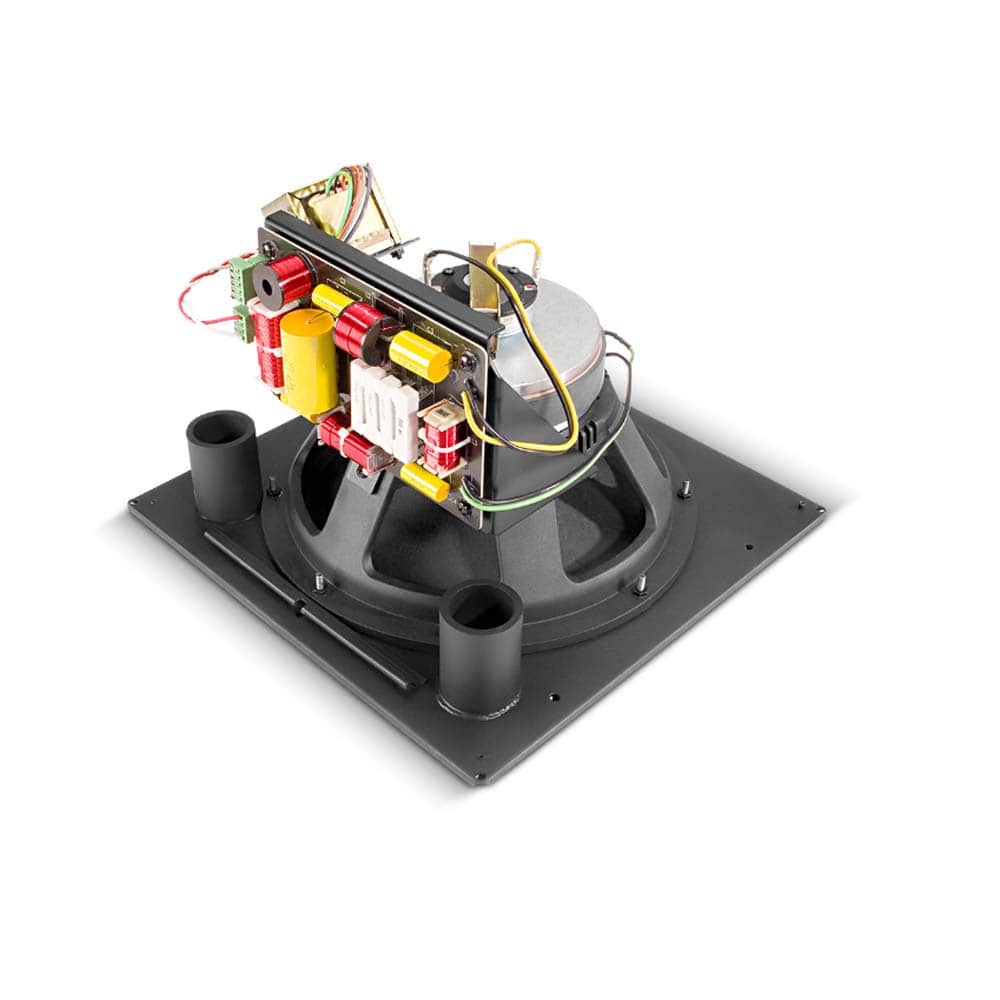

JBL CONTROL 322C High-output 12 in Coaxial Ceiling Speakr

JBL CONTROL 322C High-output 12 in Coaxial Ceiling Speakr

The JBL Control 322C is a high-output coaxial ceiling speaker designed to deliver powerful and immersive sound in a wide range of applications. Featuring a 12-inch woofer and a coaxially-mounted compression driver, this speaker provides a full and detailed audio reproduction with excellent clarity and dynamics.

With a power handling capacity of 300 Watts continuous program power and 1200 Watts peak power, the Control 322C can handle high volume levels without distortion, making it suitable for large venues and installations where robust sound reinforcement is required.

The speaker offers a wide frequency response range of 40Hz to 18kHz, ensuring accurate reproduction of both low and high frequencies. It features a high sensitivity of 95 dB, allowing for efficient power utilization and increased coverage.

The Control 322C comes with a built-in 70V/100V multi-tap transformer, providing versatility for distributed audio systems. It also includes a 16-ohm bypass setting for use in low-impedance applications.

Designed for easy installation, the speaker features a front-mounted tap selector switch that allows for quick adjustment of the power tap settings. It also comes with a tile bridge and mounting hardware for secure and hassle-free ceiling installation.

With its high-output capability, wide frequency response, and convenient installation features, the JBL Control 322C is an ideal choice for commercial spaces, theaters, houses of worship, and other applications where high-quality, ceiling-mounted audio is essential.

Features:

• Coaxial Design: The speaker utilizes a coaxial driver configuration, with a 12-inch woofer and a compression driver mounted at the center, ensuring precise alignment and coherent sound dispersion.
• Coverage Pattern: The Control 322C offers a wide 120-degree coverage pattern, providing consistent sound distribution throughout the listening area.
• SonicGuard Overload Protection: The speaker incorporates JBL’s SonicGuard technology, which protects the compression driver from damage due to excessive power or signal clipping, ensuring long-term reliability.
• Frequency Range (-10 dB): The speaker has a frequency response range of 40Hz to 18kHz, covering a wide spectrum of audio frequencies for accurate and balanced sound reproduction.
• Transformer Taps: The built-in 70V/100V multi-tap transformer provides flexibility in system design, allowing the speaker to be used in both high-impedance distributed audio systems and low-impedance setups. It offers power taps at 30W, 15W, 7.5W, and a bypass setting at 16 ohms.
• Sensitivity: The Control 322C has a sensitivity rating of 95 dB, which means it can deliver powerful sound even with lower input power, making it efficient and suitable for applications with varying amplification capabilities.
• Mounting Options: The speaker is designed for ceiling installation and comes with a tile bridge and mounting hardware for secure and easy installation. It features a convenient front-mounted tap selector switch for quick adjustment of power tap settings.
• Durable Construction: The Control 322C is built to withstand demanding environments, with a rugged and weather-resistant enclosure that ensures reliable performance in both indoor and outdoor applications.
• Size and Weight: The speaker has dimensions of 14.8 inches in diameter and a depth of 12.3 inches. It weighs approximately 18.7 pounds (8.5 kg).
