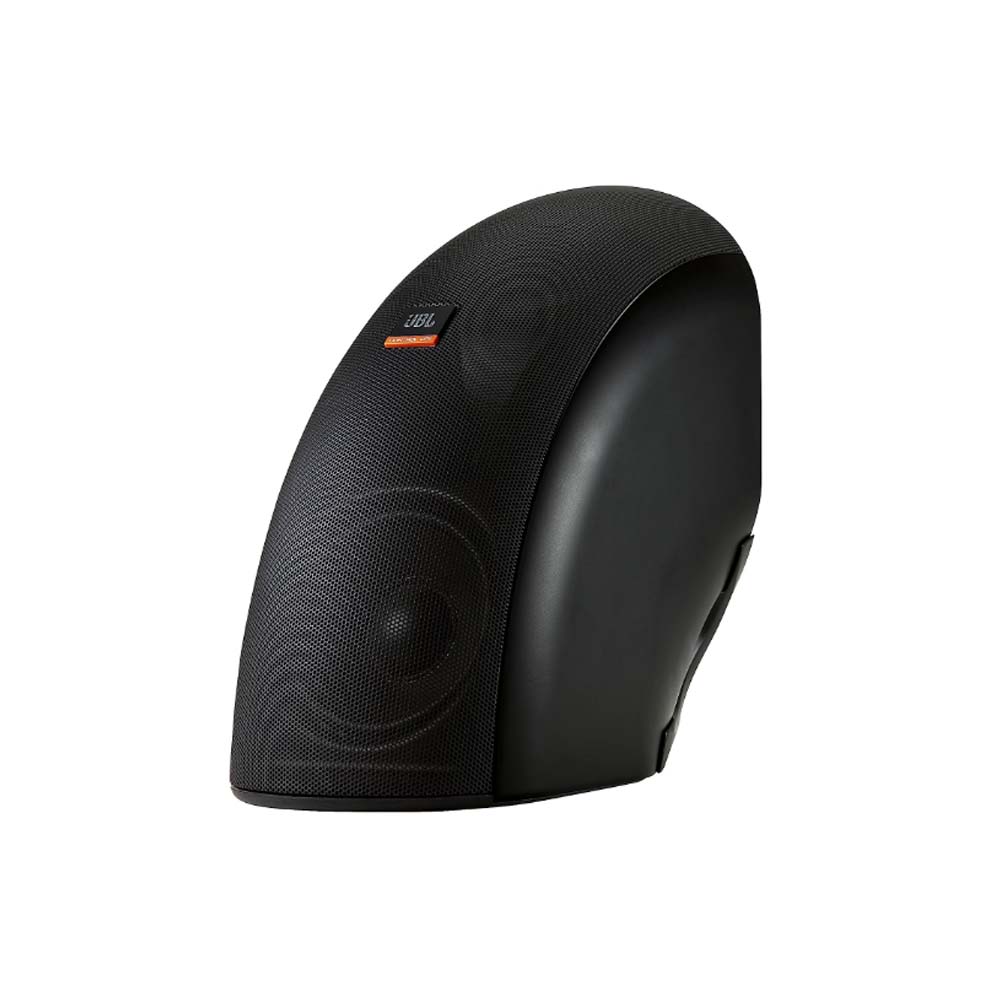

JBL CONTROLCRV Weather-Resistant 70/100V Loudspeaker BK

JBL CONTROLCRV Weather-Resistant 70/100V Loudspeaker BK

The JBL CONTROL CRV is a versatile and reliable weather-resistant loudspeaker designed for outdoor installations. It is built to withstand harsh outdoor conditions, making it ideal for use in stadiums, theme parks, outdoor venues, and other outdoor applications.

The loudspeaker features a high-quality 5.25-inch woofer and a 0.75-inch tweeter, delivering a wide frequency response and exceptional audio clarity. With a power rating of 150W continuous and 300W peak, it can handle high-power audio signals with ease, providing powerful and dynamic sound reproduction.

One of the key features of the JBL CONTROL CRV is its wide coverage pattern. It offers a broad dispersion angle of 150 degrees horizontally and 120 degrees vertically, ensuring even sound distribution throughout the coverage area. This makes it suitable for applications where consistent audio coverage is required.

The JBL CONTROL CRV is designed for use in 70V/100V distributed audio systems. It features a built-in multi-tap transformer, allowing easy integration into existing sound systems. The transformer offers multiple power taps, providing flexibility in adjusting the loudspeaker’s output level to match the specific application requirements.

With an IP55 rating, the JBL CONTROL CRV is protected against dust ingress and water splashes, ensuring reliable performance even in outdoor environments. Its rugged enclosure is made from durable materials, providing long-lasting durability and resistance to wear and tear.

The loudspeaker comes with a mounting bracket, offering easy and secure installation on walls, ceilings, or other mounting surfaces. The bracket allows for adjustable angling, allowing precise positioning of the loudspeaker for optimal sound coverage.

The JBL CONTROL CRV combines robust construction, high-quality audio performance, and weather-resistant design, making it an excellent choice for outdoor sound installations that require reliable and immersive audio reproduction.

Features:

• Design: The CONTROL CRV features a unique curved design that allows for wide sound dispersion and coverage.
• Weather Resistance: The speaker is designed to withstand various weather conditions, making it suitable for outdoor installations.
• Driver Configuration: It includes a 5.25-inch woofer for accurate bass reproduction and three 0.75-inch tweeters for clear and detailed high-frequency response.
• Frequency Response: The loudspeaker offers a frequency range of 80Hz to 20kHz, ensuring full-spectrum sound reproduction.
• Power Handling: It has a power handling capacity of 150 watts continuous program power, ensuring ample volume and dynamic range.
• Transformer: The speaker is equipped with a built-in 70/100V transformer, allowing for easy integration into commercial audio systems.
• Mounting Options: The CONTROL CRV provides versatile mounting options, including horizontal, vertical, and cluster configurations, enabling flexible installation in various environments.
• Sensitivity: It has a sensitivity rating of 88dB, ensuring efficient sound output with minimal power input.
• Impedance: The loudspeaker has a nominal impedance of 8 ohms, making it compatible with a wide range of audio equipment.
• Protection: The CONTROL CRV features a built-in overload protection circuitry to prevent damage from excessive power or voltage.
• Connectors: It comes with a terminal block connector for easy and secure wiring connections.

Specifications:

• Woofer Size: 5.25 inches (133 mm)
• Tweeter Size: 0.75 inches (19 mm)
• Coverage Pattern: 150 degrees horizontal, 120 degrees vertical
• Nominal Impedance: 8 ohms
• Power Rating: 150W continuous program power, 300W peak power
• Frequency Response (-10 dB): 80 Hz – 20 kHz
• Sensitivity: 88 dB SPL at 1W/1m
• Maximum SPL: 109 dB continuous, 115 dB peak
• Transformer Taps: 30W, 15W, 7.5W, 3.8W (70V/100V)
• Transformer Insertion Loss: 0.55 dB at 10W, 1.27 dB at 5W (70V/100V)
• Enclosure Material: High-impact polystyrene (HIPS)
• Environmental: IP55-rated for outdoor use
• Dimensions (H x W x D): 12.1″ x 8.9″ x 7.3″ (307 mm x 226 mm x 185 mm)
• Weight: 5.7 lbs (2.6 kg)
• Mounting Options: Includes mounting bracket for easy installation
