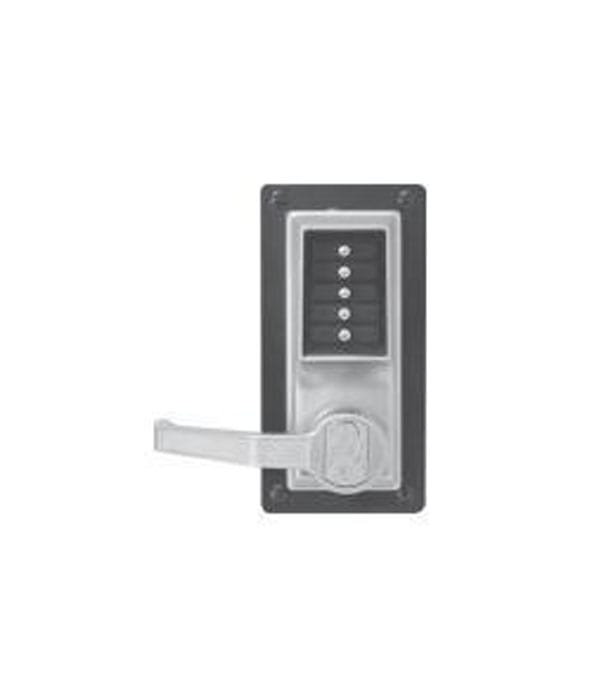

Kaba LRP101026D41 Mechanical 5 Push Button Exit Trim

SKU : LRP101026D41 Category

The Kaba LRP101026D41 is a mechanical exit trim designed for use with a rim or vertical rod exit device. It features five push buttons for code entry, with a free passage mode and key override function for added convenience and security. The lock is programmable for one, two, or three user codes and operates with a standard CR2 lithium battery. The Kaba LRP101026D41 is a mechanical push button exit trim with 5 buttons. It is designed for use in commercial or institutional settings and is compatible with most standard exit devices.
The Kaba LRP101026D41 Mechanical 5 Push Button Exit Trim offers a reliable and secure solution for exit doors. Its mechanical operation, combined with the push-button system, provides a simple and effective means of gaining access while maintaining security. Whether used in commercial buildings, educational institutions, or other facilities, this exit trim offers convenience, durability, and peace of mind.

Kaba LRP101026D41 Mechanical 5 Push Button Exit Trim

The Kaba LRP101026D41 is a mechanical exit trim designed for use with a compatible panic device or exit device. It is specifically designed for applications where a secure exit is required, such as in commercial buildings, offices, or public facilities.

This exit trim features a push-button system with five buttons, allowing users to input a combination to gain access through the exit door. The combination can be easily set and changed as needed, providing flexibility and enhanced security. The mechanical operation of the lock ensures reliable performance without the need for batteries or external power sources.

The LRP101026D41 exit trim is compatible with a variety of panic devices or exit devices, allowing for easy integration into existing door hardware. It is designed to work with left-hand or right-hand doors, offering versatility in installation. The satin chrome finish adds an attractive and professional look to the trim while providing resistance against corrosion and wear.

Installation of the exit trim is straightforward and can be done on compatible doors using the included hardware. It is important to ensure that the panic device or exit device is compatible with the LRP101026D41 exit trim for proper functionality and security.

Features:

  • Mechanical Operation: The exit trim operates mechanically, which means it does not require batteries or external power sources for its functionality. This ensures consistent operation and eliminates the need for regular battery replacements.
  • Push Button System: The exit trim features a push-button system with five buttons, allowing users to input a combination to gain access through the exit door. The buttons are easy to press and provide tactile feedback for precise input.
  • Combination Flexibility: The combination on the exit trim can be easily set and changed as needed. This allows for enhanced security, as the combination can be regularly updated to prevent unauthorized access. The combination can be easily changed without disassembling the lock.
  • Compatibility: The LRP101026D41 exit trim is designed to work with a variety of panic devices or exit devices, including rim exit devices and mortise exit devices. This ensures compatibility with different door types and hardware configurations.
  • Left-Hand or Right-Hand Doors: The exit trim is suitable for both left-hand and right-hand doors, providing flexibility in installation. It can be easily configured to accommodate the specific door handing requirements.
  • Satin Chrome Finish: The exit trim comes in a satin chrome finish, which not only adds a sleek and professional appearance but also provides durability and resistance against corrosion and wear. The finish is designed to withstand the rigors of everyday use and maintain its aesthetic appeal over time.
  • Installation and Hardware: The exit trim comes with the necessary installation hardware, including screws and mounting plates, to facilitate easy and secure installation. It is important to follow the manufacturer’s instructions and guidelines for proper installation.

Specifications:

  • Finish: Satin Chrome (26D)
  • Handing: Non-handed, fits both right and left hand doors
  • Backset: Adjustable for 2-3/4″ or 2-3/8″
  • Door thickness: 1-3/4″ to 2-1/4″
  • Latch: Stainless steel 1/2″ throw latchbolt
  • Fire rating: UL Listed for 3-hour fire doors
  • ADA compliant: Yes
Brand

Supplier

Reviews

There are no reviews yet.

Be the first to review “Kaba LRP101026D41 Mechanical 5 Push Button Exit Trim”

Your email address will not be published. Required fields are marked *

LRP101026D41 Specification Sheet

Download

LRP101026D41 Installation Instructions

Download
