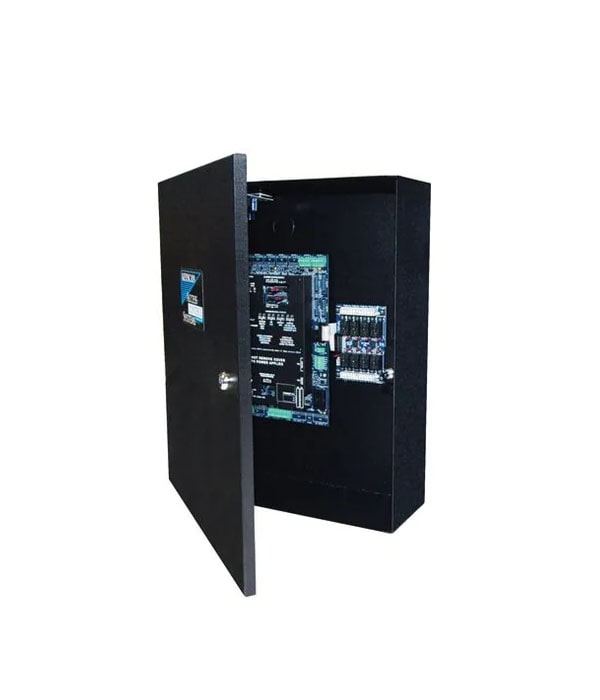

Keyscan CA4500 CA4500 – 4 Reader Access Control Panel
Features:
- The complete family of Keyscan access control units includes a 1, 2, 4, 8 and Elevator Floor Access Control panels tha can be mixed and matched to optimize system design and installation
- Uses network appliance-based architecture
- Easily configurable reader settings supporting Wiegand protocols
- Dual multi-threaded on-board processors ensure full panel operation even during system downloads
- System status LEDs for diagnostics and troubleshooting
- Communication options: TCP/IP, LAN/WAN, Internet, RS485

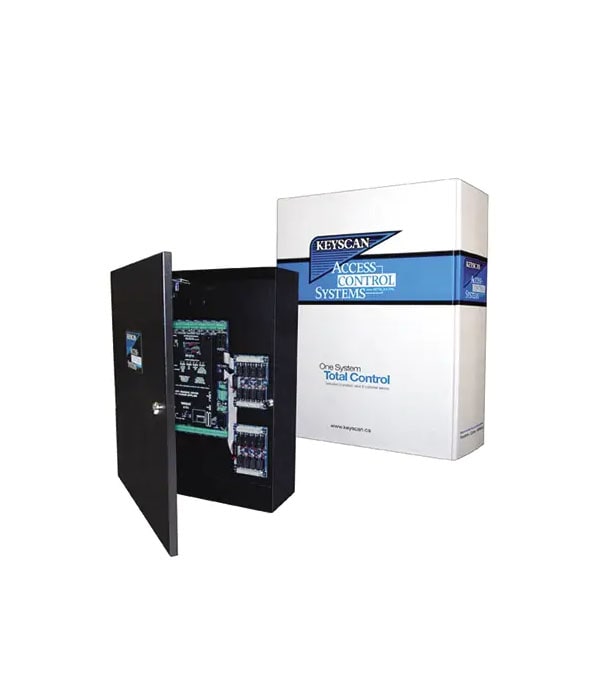

- mes with 1 – CA4500B PC109X ACU Main Board, 1 – OCB8 (PC110X) Relay Board, 1 – DPS-15 Power Supply and Black Metal Enclosure
- Requires 2 – 16 V AC 37 or 40 VA Transformers and 1 – 12 V 7Ah Battery
- Card Capacity 32,000 Cards, 4 Card Readers and/or Keypads, 4 Auxiliary Outputs and 16 Auxiliary Inputs
Specifications:
- Environmental : INDOOR
- Input Voltage : 16.5 VAC
- Number of Readers : 4
- Number of Users : MORE THAN 2000
- Sales Category : ELECTRIC SYSTEM CONTROLLER
- Interface : RS232
- Mounting : SURFACE MOUNT NO ELEC BOX
- Output Voltage : 12 VOLTS DC
- Product Type : IP HARDWIRED CONTROLLER
