Keyscan EC1500 EC1500 – 1 Cab Elevator Floor Access Control Panel
Features:
- CThe complete family of Keyscan access control units includes a 1, 2, 4, 8 and
Elevator Floor Access Control panels tha can be mixed and matched to optimize
system design and installation - Secure up to 40 floors with a single controller (requires optional OCB8 relay
boards) - Track/limit floor access by cardholder
- Provide independent control for every floor
- Interface with telephone entry systems (Contact Keyscan for more details)
- Support 1 Cab with 1 Reader (Out of the box 8-floor control)
- Uses network appliance-based architecture
- Easily configurable reader settings supporting Wiegand protocols
- Dual multi-threaded on-board processors ensure full panel operation even during
system downloads - System status LEDs for diagnostics and troubleshooting
- Communication options: TCP/IP, LAN/WAN, Internet, RS485

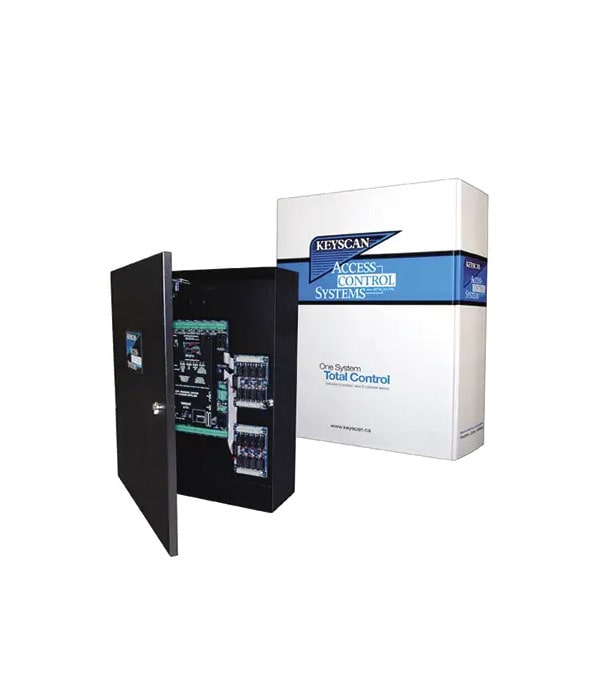

- Comes with 1 – EC1500B PC109X ACU Main Board, 1 – OCB8 Relay Board (PC110X), 1
– DPS-15 Power Supply and Black Metal Enclosure - Requires 2 – 16 V AC 37 or 40 V A Transformers and 1 – 12 V 7Ah Battery
- Card Capacity 32,000 Cards, 1 Card Reader and/or Keypad
- Manages 1 Elevator Cab up to 8 Floors (Expandable to 40 Floors)
- Includes Floor Monitoring Inputs for 40 Floors
Specifications:
- Environmental : INDOOR
- Input Voltage : 16.5 VAC
- Number of Readers : 1
- Number of Users : MORE THAN 2000
- Sales Category : ELECTRIC SYSTEM CONTROLLER
- Interface : RS232
- Mounting : SURFACE MOUNT NO ELEC BOX
- Output Voltage : 12 VOLTS DC
- Product Type : IP HARDWIRED CONTROLLER
