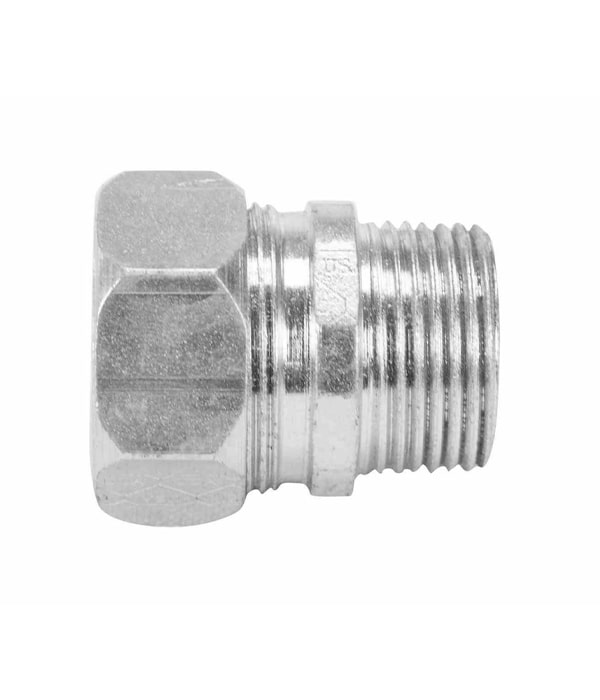

Larson Electronics CGB-100 1-inch Cord Grip (to use with EYM) to seal off wiring connections to explosion proof lights

Larson Electronics CGB-100 1-inch Cord Grip (to use with EYM) to seal off wiring connections to explosion proof lights

Description:

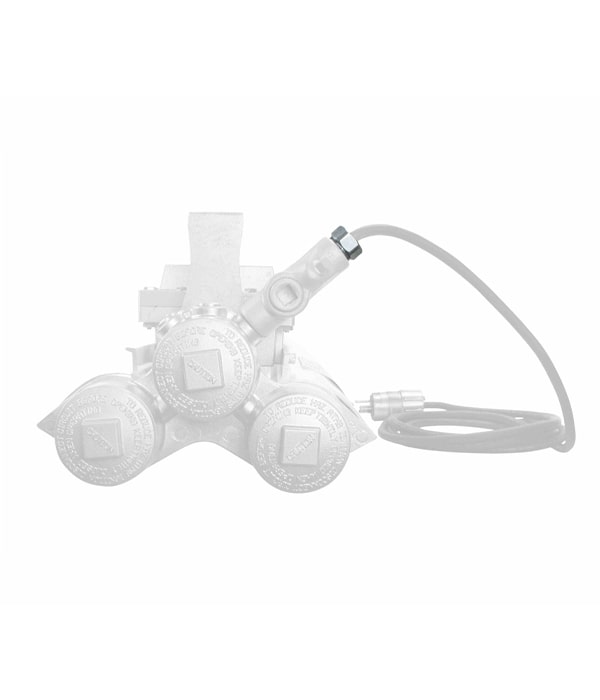

Cord Grip (to use with EYM) to seal off wiring connections to explosion proof lights

Customer Cable OD
? .375-.500″
? .500-.625″
? .625-.750″
? .750-.875″
? .875-1.000″
? 1.000-1.125″

Color
? Purple
? Pink
? Orange
? Grey
? Red
? Blue

The above table shows the outside diameter of the customer`s cord and the corresponding color of the cord grip that is appropriate for a cord of that diameter.

Common Cord Type Diameters

SOOW Cord
? 18 AWG
? 16 AWG
? 14 AWG
? 12 AWG
? 10 AWG

2 Conductor
? 0.350″
? 0.375″
? 0.51″
? 0.585″
? 0.635″

3 Conductor
? 0.370″
? 0.40″
? 0.54″
? 0.61″
? 0.67″

4 Conductor
? 0.40″
? 0.42″
? 0.58″
? 0.66″
? 0.72″

Type-W Cord
? 8 AWG
? 6 AWG
? 4 AWG
? 2 AWG
? 1 AWG

1 Conductor
? 0.49″
? 0.535″
? 0.595″
? 0.645″
? 0.695″

2 Conductor
? 0.82″
? 0.93″
? 1.05″
? 1.245″
? 1.42″

3 Conductor
? 0.93″
? 1.015″
? 1.13″
? 1.32″
? 1.475″

4 Conductor
? 1.01″
? 1.105″
? 1.245″
? 1.465″
? 1.625″
