Larson Electronics EPL-AE.EX-MJ-60W-120V-R1-PND 60W Explosion Proof Incandescent Jar Fixture – 120V – ATEX/IECEx Rated – Factory Sealed

Larson Electronics EPL-AE.EX-MJ-60W-120V-R1-PND 60W Explosion Proof Incandescent Jar Fixture – 120V – ATEX/IECEx Rated – Factory Sealed

Description:

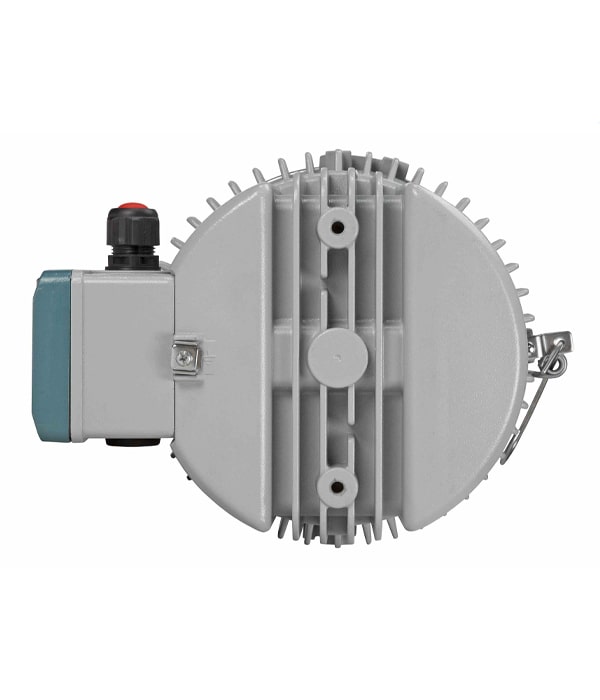

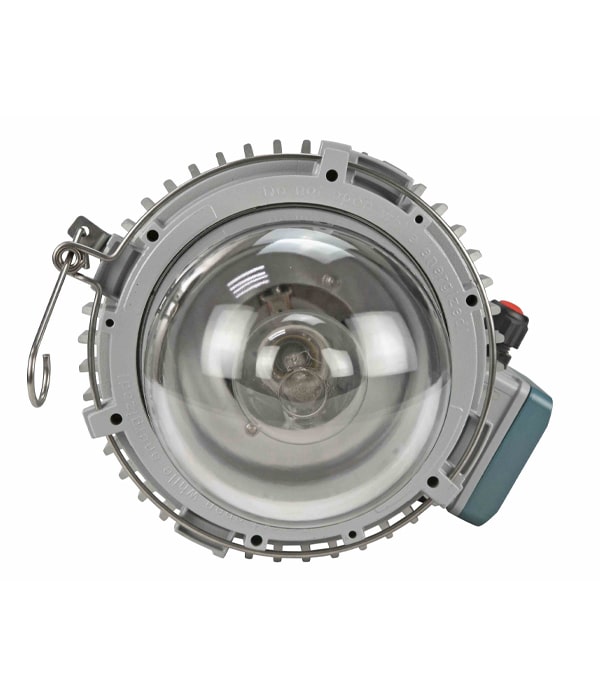

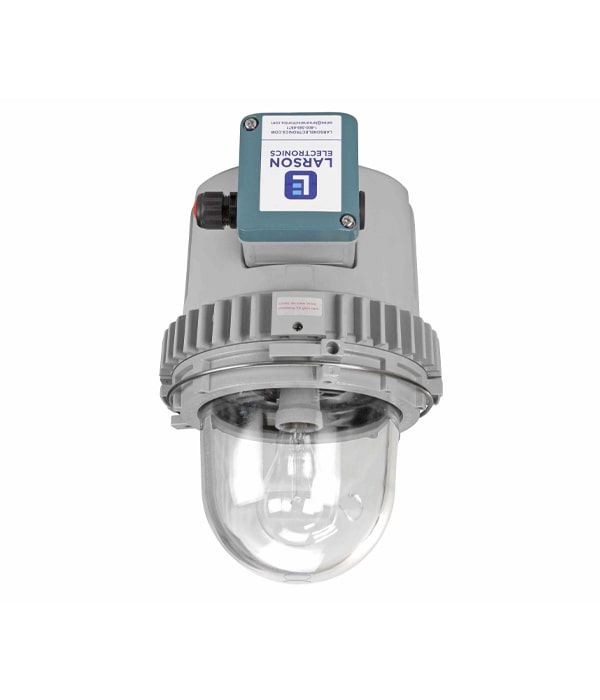

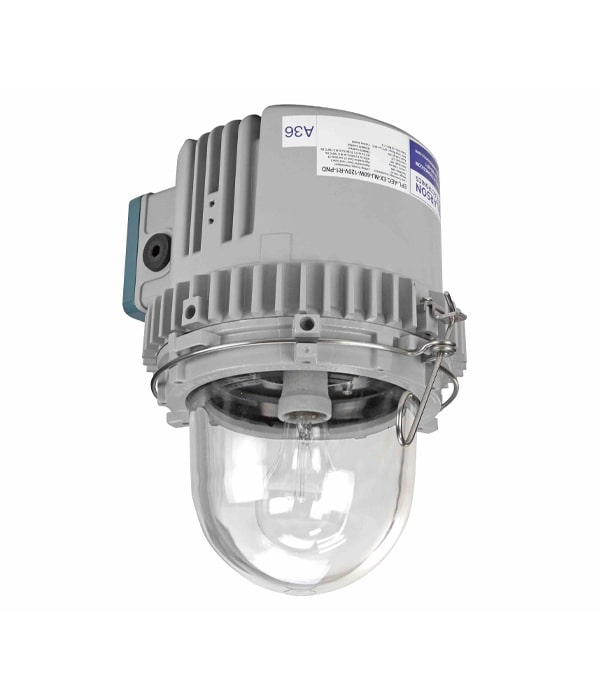

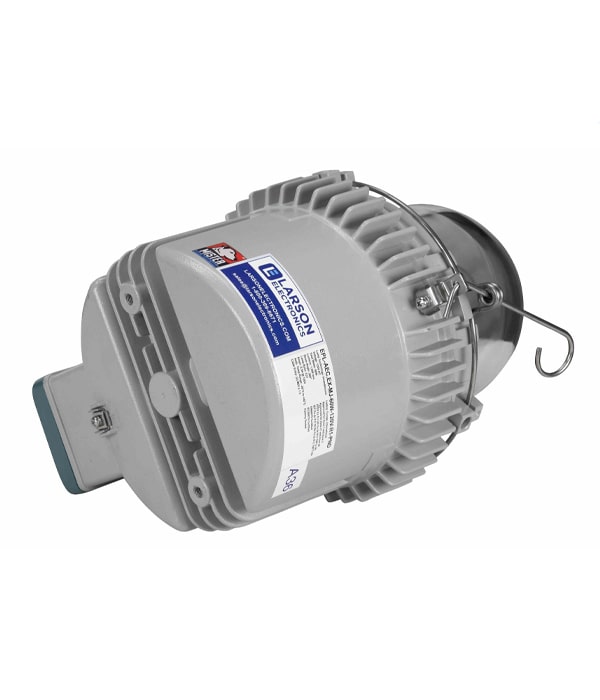

The EPL-AE.EX-MJ-60W-120V-R1-PND Explosion Proof Incandescent Jar Fixture from Larson Electronics is a powerful incandescent lamp for ATEX-rated environments. This 60-watt fixture is compatible with 120V AC and offers 360 degrees of illumination. Constructed of die-cast aluminum alloy with an epoxy resin powder finish, the explosion proof light is factory sealed and compatible with pendant mounting applications.

The EPL-AE.EX-MJ-60W-120V-R1-PND is an ATEX-rated incandescent fixture for explosive work sites. Equipped with a corrosion-resistant housing, this unit operates on 120V AC. The 60-watt lamp offers 1,080 lumens of output, with a 360-degree beam angle that is highly visible during use. The explosion proof luminary is constructed of die-cast aluminum alloy with an epoxy resin powder finish. Equipped with a borosilicate toughened glass lens, this factory sealed unit features an E27 lamp holder and is ATEX rated for Zone 1, 2, 21 and 22.

Wiring: Cable entries are facilitated by two, M25 x 1.5 openings (molded plastic cable gland and stopping plug). Terminal connections include: L1, N, PE. A side-mounted junction box is available for seamless field installations.

Mounting: This incandescent fixture is suitable for pendant mount applications. For adjustable mounting configurations, a mounting bracket can be purchased separately with the incandescent lamp.

Suggested Applications: Hazardous locations, explosive work sites, confined spaces, chemical processing, food manufacturing and more.

Features:

• Listing: Europe, International
• Lamp Technology: Incandescent
• Dimensions: –
• Weight: –
• Voltage: 120V AC
• Total Watts: 60W
• Lumens: 1,080 lms
• Beam Angle: 360?
• Lamp Base: E27
• Amps: 0.5A @ 120V
• Ambient Operating Temp Range: -20?C to +40?C
• Housing Material: Die-cast Aluminum Alloy w/ Epoxy Resin Powder Finish
• Lens Material: Borosilicate Toughened Glass
• Mounting: Pendant
• Terminal: L1 ,N, PE
• Cable Entry: (2) M25 x 1.5 – Molded Plastic Cable Gland, Stopping Plug
