Larson Electronics EPL-AE.EX-MJ-MH-70W-230V-R1-TRN 70W Explosion Proof MH Lamp – 230V 50/60Hz Ballast – Trunnion Mount – ATEX/IECEx – Lamp Not Included

Larson Electronics EPL-AE.EX-MJ-MH-70W-230V-R1-TRN 70W Explosion Proof MH Lamp – 230V 50/60Hz Ballast – Trunnion Mount – ATEX/IECEx – Lamp Not Included

Description:

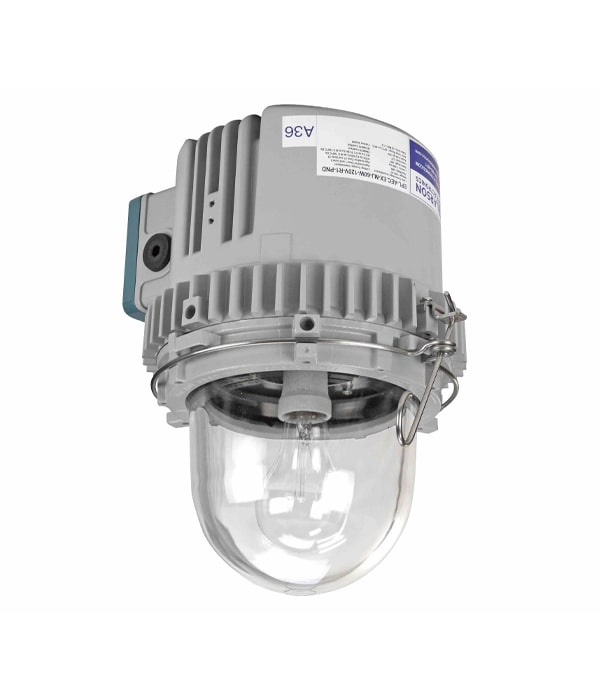

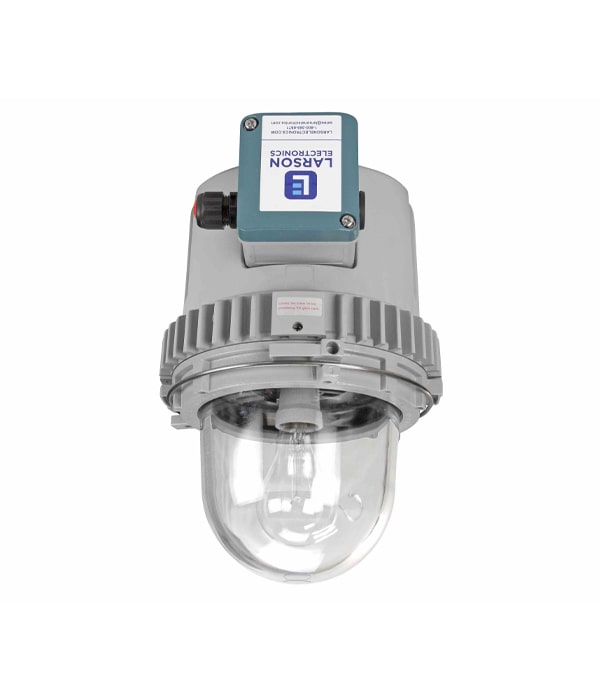

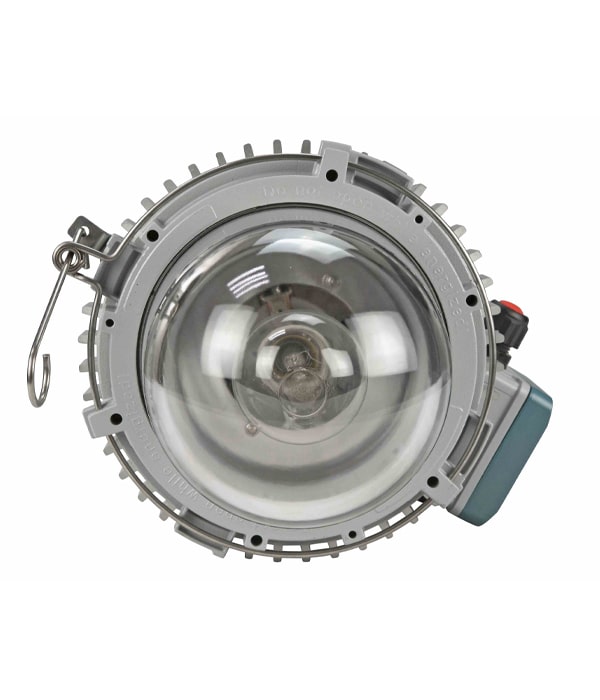

The EPL-AE.EX-MJ-MH-70W-230V-R1-TRN Explosion Proof Metal Halide Fixture from Larson Electronics is a powerful lamp for ATEX-rated environments. This 70-watt fixture is compatible with 230V AC, 50/60Hz and offers 360 degrees of illumination. Constructed of die-cast aluminum alloy with an epoxy resin powder finish, the explosion proof light is compatible with trunnion mounting applications. The lamp is not included with the fixture.

The EPL-AE.EX-MJ-MH-70W-230V-R1-TRN is an ATEX-rated metal halide fixture for explosive work sites. Equipped with a corrosion-resistant housing, this unit operates on 230V AC, 50/60 Hz. The 70-watt light features a 360-degree beam angle that is highly visible during use. This explosion proof luminary is constructed of die-cast aluminum alloy with an epoxy resin powder finish. Equipped with a borosilicate toughened glass lens, the unit features an E27 lamp holder and is ATEX rated for Zones 1, 2, 21 and 22.

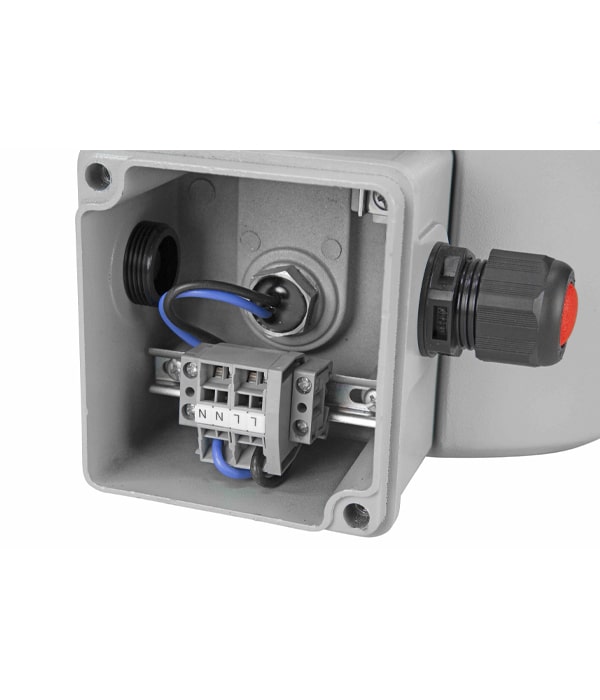

Wiring: Cable entries are facilitated by one M25 x 1.5 hub (molded plastic cable gland and stopping plug). Terminal connections include: L1, N. A side-mounted junction box is available for seamless field installations.

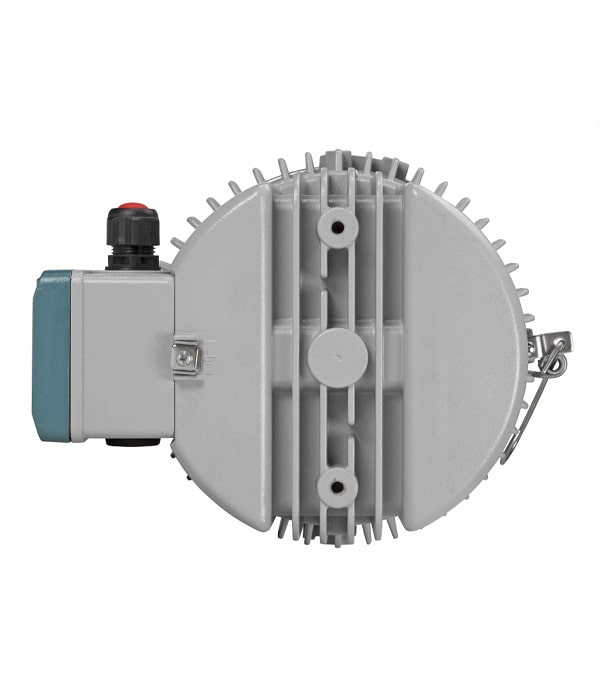

Mounting: This MH fixture is suitable for trunnion mount applications. After installation, operators can adjust the light head for proper light placement over the target area.

Suggested Applications: Hazardous locations, explosive work sites, confined spaces, chemical processing, food manufacturing and more.

Features:

• Listing: NRTL Certified for Europe and International
• Lamp Technology: Metal Halide (Lamp Not Included)
• Dimensions: –
• Weight: 21.53 lbs
• Voltage: 230V AC, 50/60 Hz
• Total Watts: 70W
• Lumens: 6300
• Beam Angle: 360?
• Lamp Base: E27
• Amps: 0.3A @ 230V
• Ambient Operating Temp Range: -40? to+40?/+55?
• Housing Material: Die-cast Aluminum Alloy w/ Epoxy Resin Powder Finish
• Lens Material: Borosilicate Toughened Glass
• Mounting: Trunnion Mount
• Terminal: L1, N
• Hubs: (1) M25 x 1.5 w/ Molded Plastic Cable Gland, (1) M25 w/ Stopping Plug
