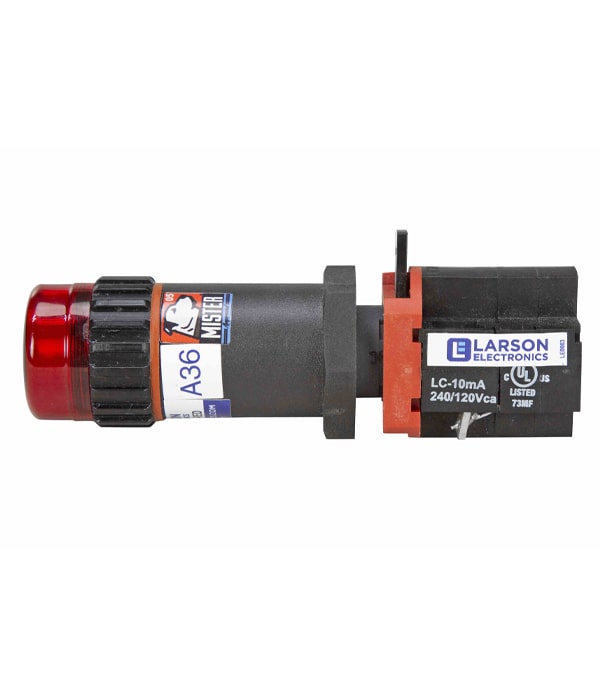

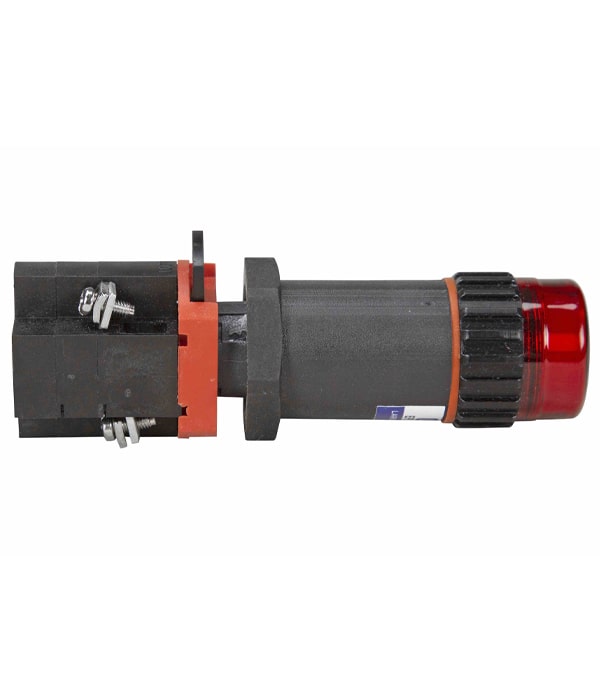

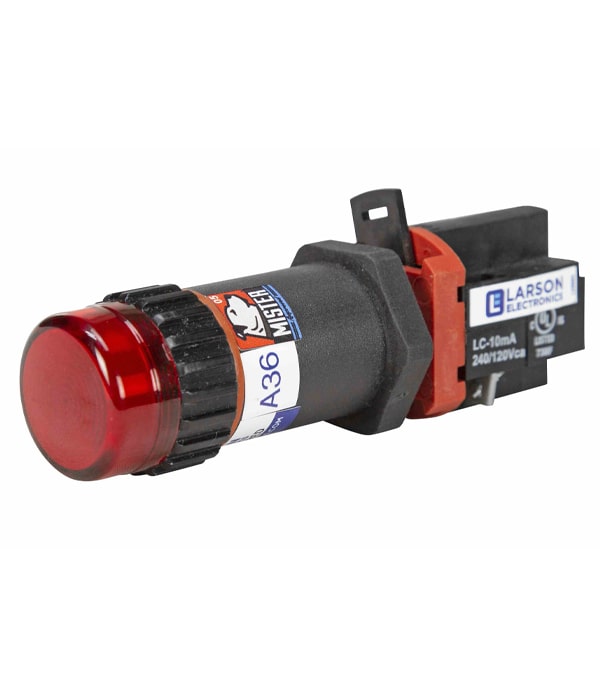

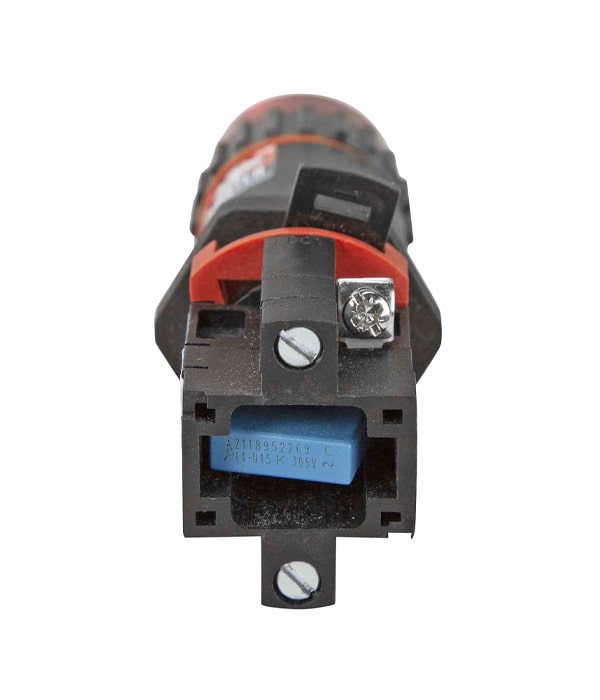

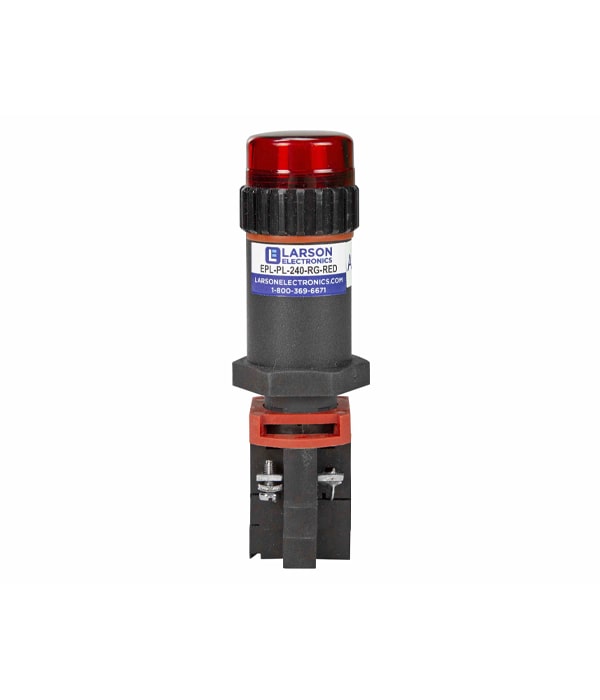

Larson Electronics EPL-PL-240-RG Explosion Proof LED Pilot Light – 240 Volts

Larson Electronics EPL-PL-240-RG Explosion Proof LED Pilot Light – 240 Volts

Description:

The EPL-PL-240-RG from Larson Electronics is an Explosion Proof Pilot Light that is rated for Class I, Divisions 1 & 2, Groups B, C, D, Class II, Divisions 1 & 2, Groups E, F, G and Class III, Divisions 1 & 2 hazardous areas. This explosion proof pilot light operates on 240 volts and has color options.

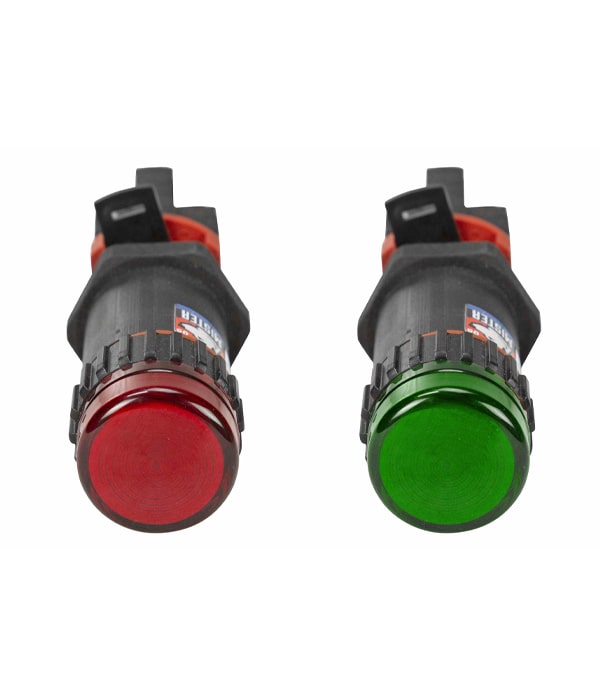

The EPL-PL-240-RG explosion proof pilot light features an LED lamp that is available in either red or green colors. Make selection when ordering below. This pilot light measures 3.56 inches long ( 0.81″ external length and 2.75″ internal length), 2 inches of threaded length, a 1.56 inch diameter and a threaded NPT hub of 3/4-14 NPSM. The EPL-PL-240-RG is also NEMA 3, 4, 4X, 7 (B, C, D), 9 (E, F, G) rated.

LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.

LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.

Features:

• Lamp Type: LED
• Dimensions: 3.56″L x 1.56″ Diameter
• External Length: 0.81″
• Internal Length: 2.75″
• Voltage: 240V
• LED Color Options: Red or Green (Make Selection Below)
• Hub Size: 3/4-14 NPSM Threaded
