Larson Electronics EPLX-HB-140W-RD3-LED-TRC 140 Watt Explosion Proof High Bay AC LED Light Fixture – C1D2 – C2D2 – ATEX / IECEx – IP67

Larson Electronics EPLX-HB-140W-RD3-LED-TRC 140 Watt Explosion Proof High Bay AC LED Light Fixture – C1D2 – C2D2 – ATEX / IECEx – IP67

Description:

The EPLX-HB-140W-RD3-LED-TRC from Larson Electronics is an Explosion Proof Dimmable High Bay Light Fixture that is a compact powerhouse ruggedly built to withstand demanding conditions. The EPLX-HB-140W-RD3-LED-TRC features state-of-the-art AC LEDs paired with specially designed heat sinks for improved efficiency, thermal management, and durability. Available in 5000K warm white and 3000K cool white options, this sleek and modern fixture delivers brilliant illumination and maximum efficiency. In addition to IP67 rated construction, the corrosion and weather resistant housing features a special coating that rejects dust collection and buildup, making this AC LED high bay fixture especially suitable for oil refineries, petrochemical plants, offshore rigs, painting facilities, and the transportation of natural gas and liquefied petroleum gas.

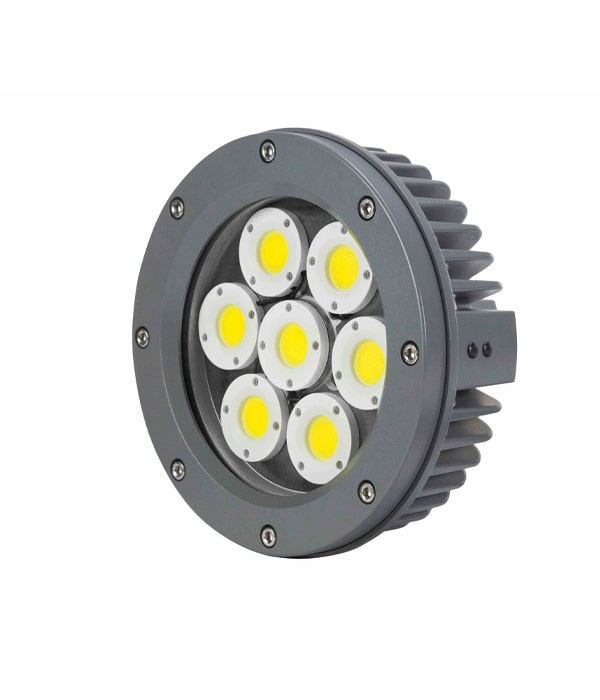

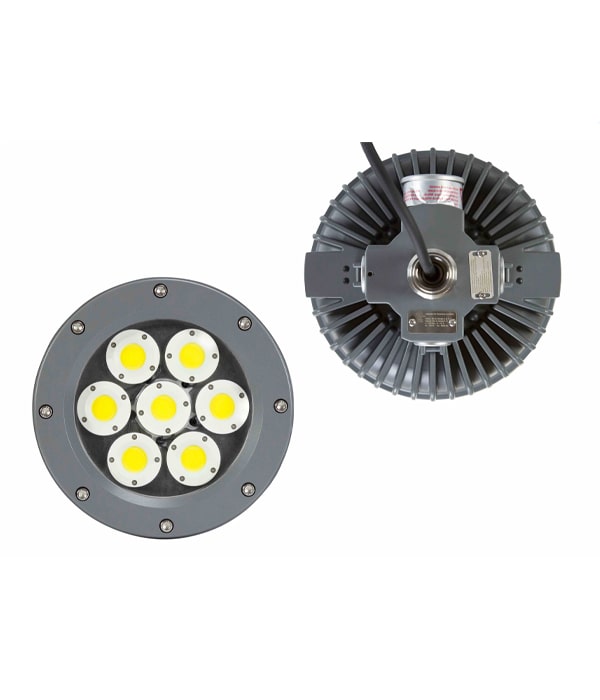

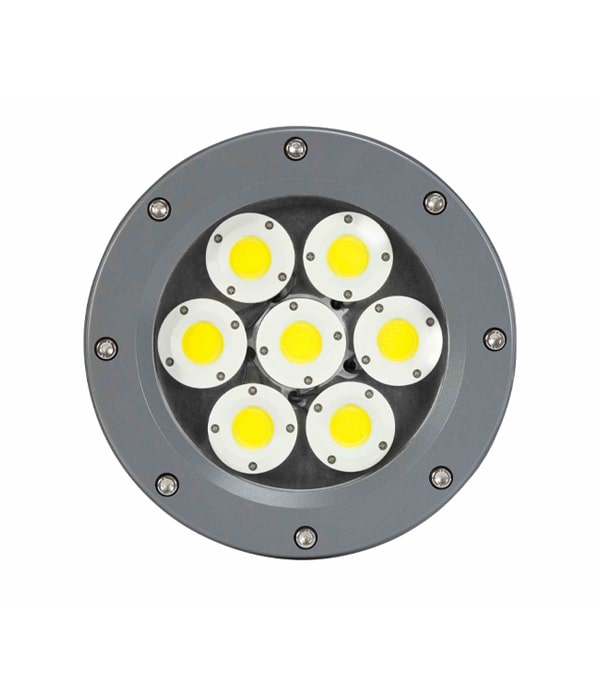

Light Features: With a compact pendant mounted design and sleek body, the EPLX-HB-140W-RD3-LED-TRC provides brilliant illumination and robust performance in an aesthetically appealing package. Available in 5000K warm white and 3000K cool white options, the 110? flood beam provides crisp, clean illumination while taking up minimal space, with a diameter of just 9.59″ and an installed height of 10.94″.

IP67 rated construction means the EPLX-HB-140W-RD3-LED-TRC high bay fixture is tough enough to withstand the corrosive effects of harsh outdoor conditions, including sun, wind, rain, sleet, snow, and saltwater spray. This fixture is completely protected against the ingress of dust, dirt, and humidity as well as withstand the corrosive effects of saltwater spray and harsh outdoor conditions. Housed within a corrosion resistant aluminum alloy body and protected by a tempered glass lens, the EPLX-HB-140W-RD3-LED-TRC features the added bonus of a dust and buildup rejecting exterior coating.

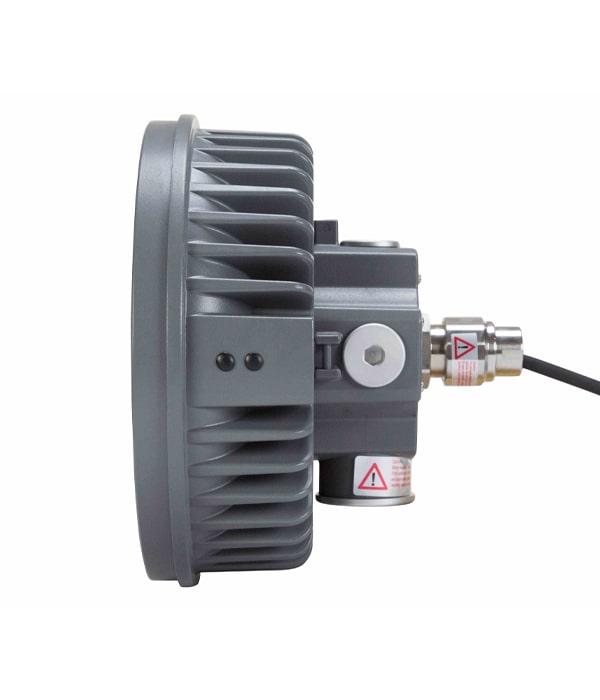

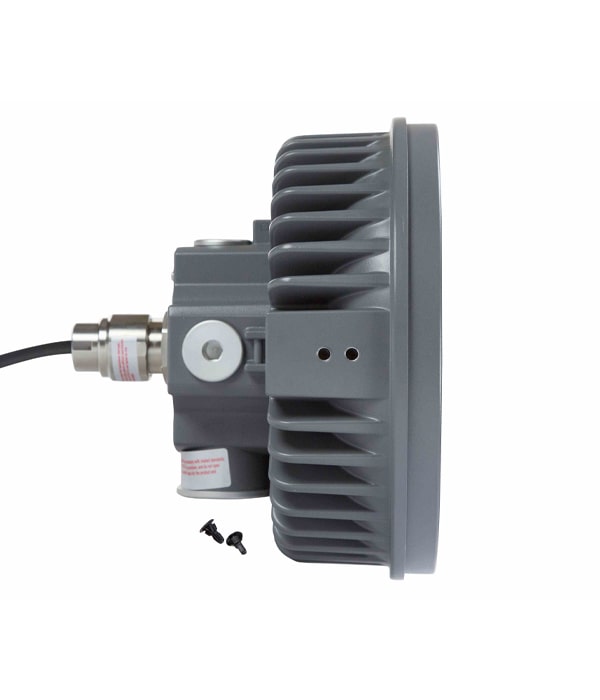

The EPLX-HB-140W-RD3-LED-TRC utilizes AC LEDs paired with a heavy-duty housing and an advanced heat sink that allows for improved efficiency and thermal performance. By eliminating the drivers associated with DC LEDs, space is freed up for more connective surface, accelerating heat dissipation and increasing durability. The specially designed heat sink allows for greater surface area contact with the air as well as a stronger airflow rate. Because this fixture is created for maximum thermal efficiency, it is ideal for applications in which the ambient operating temperature falls into extreme ranges, especially high heat applications. Furthermore, fewer sub-components also means fewer chances for secondary component failure. The simplified circuit system used within AC LEDs creates greater stability and enhances luminaire lifespan.

Dimming: The EPLX-HB-140W-RD3-LED-TRC can be wired with a dimmer switch for dimming capabilities. This gives operators the ability to manually adjust the brightness of the LED lamp quickly and easily. When using an electronic dimmer switche, the EPLX-HB-140W-RD3-LED-TRC will dim from 0% up to 100% via the user provided dimming switch. This explosion proof LED light fixture is compatible with Lutron C.L. series dimmer switches. Compatible dimmers in that series include the following: Diva? C?L? dimmer, Ariadni?/Toggler? C?L? dimmer, Lum?a? C?L? dimmer, Maestro? C?L? dimmer and Skylark? C?L? Dimmer.

*PLEASE NOTE THAT ANY DIMMER INSTALLED ON THIS FIXTURE MUST BE LOCATED OUTSIDE OF THE HAZARDOUS AREA*

The EPLX-HB-140W-RD3-LED-TRC is listed for use in the United States and Canada and carries IECEx and ATEX certifications.
ED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.

LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.

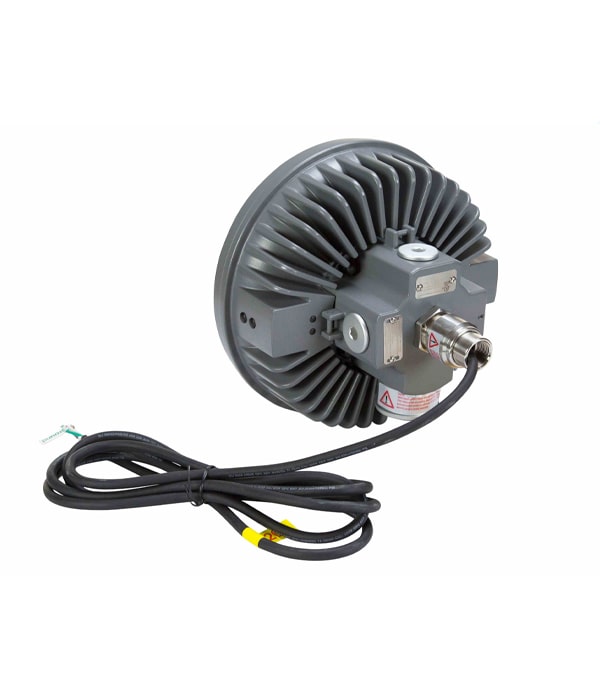

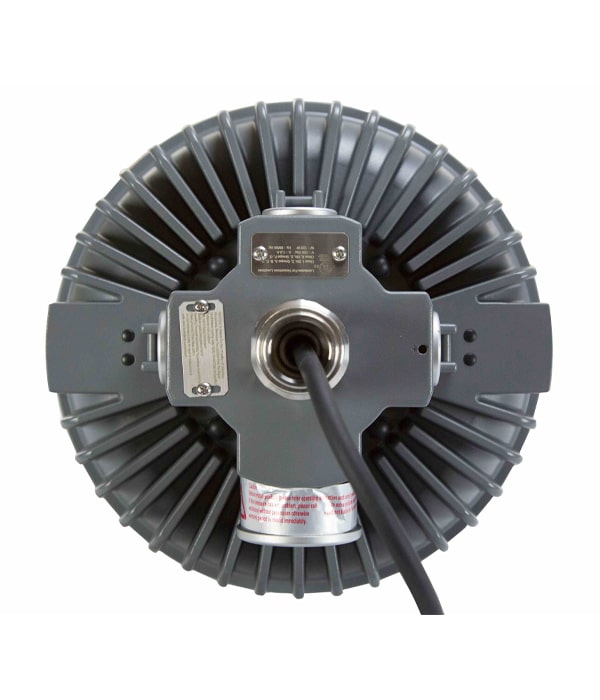

Mounting: The EPLX-HB-140W-RD3-LED-TRC high bay fixture is designed to be pendant mounted via a 3/4″ hub on the back side of the fixture. Operators bring rigid conduit down to the mounting hub. Wiring is fed through the conduit and and tied in to the fixture`s lead wires, completing the electrical connection.

Power/Wiring/Plug: The EPLX-HB-140W-RD3-LED-TRC is available in the following voltages: 120V AC, 208V AC, 220V AC, 240V AC, and 277V AC.

Suggested Applications: Oil refineries, petrochemical plants, offshore rigs, painting facilities, and the transportation of natural gas and liquefied petroleum gas.

Features:

• Lamp Type: AC LED
• Listing: United States, Canada, Europe, Asia
• Dimensions: 9.59″OD x 10.94″H
• Weight: 24.25 lbs
• Voltage: 120V AC, 208V AC, 220V AC, 240V AC, 277V AC
• Total Watts: 140W
• Lumens: 14,700 (5000K) or 13,300 (3000K)
• Luminous Efficacy: 105 Lm/W (5000K) or 95 Lm/W (3000K)
• Lamp Life: 60,000+ Hours
• Color Temp: 5000K cool white, 3000K warm white
• Color Rendering Index: >70 CRI
• Beam Angle: 110?
• Lighting Configuration: Flood Beam
• Power Efficiency: >85%
• Power Factor: 0.9
• Amperage: 1.16A@120V AC, 0.67A@208V AC, .63A@220V AC, 0.58A@240V AC, 0.50A@277V AC
• Ambient Operating Temp Range: -60?C to +100?C
• Operating Temp Rating: T6
• Housing Material: Aluminum Alloy
• Lens Material: Tempered Glass
• Mounting: Pendant

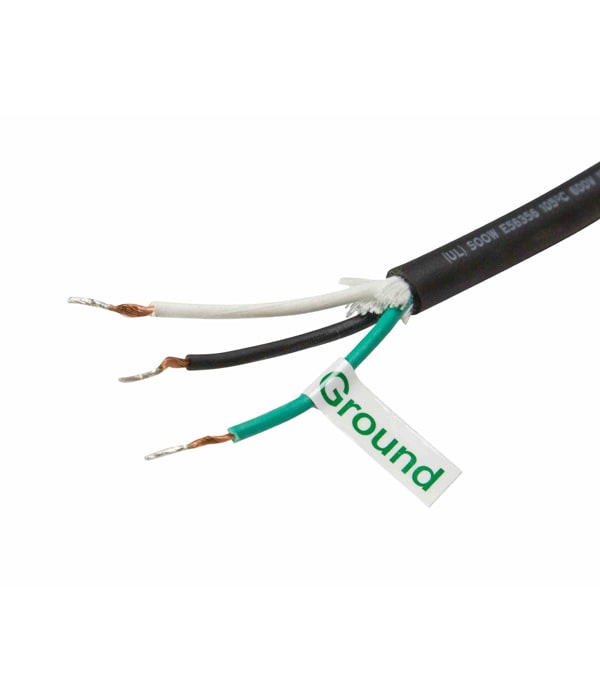

• Wiring: 10` 16/3 SOOW Cord
• Wiring Hub: 3/4″ NPT
