Larson Electronics EPLX-SL-PT-3X80W.RD2-TRC-20X-100C 240W Explosion Proof Pole Top AC LED String Light – C1D1/C2D1 – Group B + ATEX/IECEX – 100′ SOOW Cord

Larson Electronics EPLX-SL-PT-3X80W.RD2-TRC-20X-100C 240W Explosion Proof Pole Top AC LED String Light – C1D1/C2D1 – Group B + ATEX/IECEX – 100′ SOOW Cord

Description:

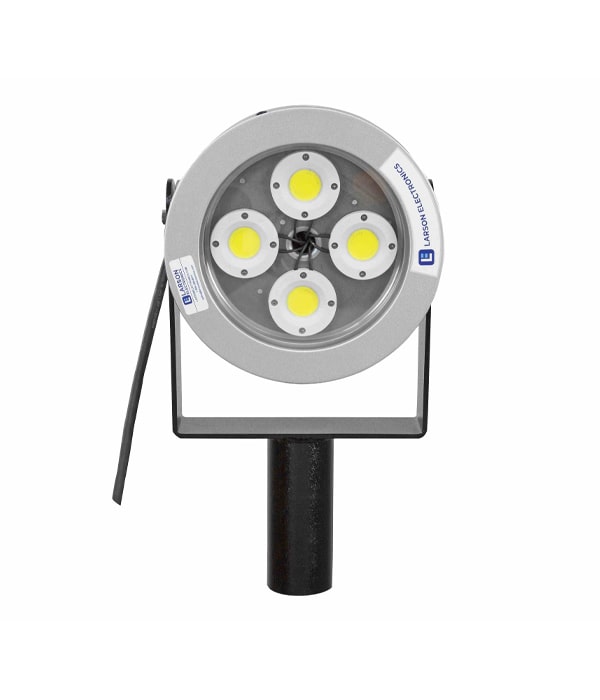

The EPLX-SL-PT-3X80W.RD2-TRC-20X-100C from Larson Electronics is an Explosion Proof Pole Top Mount AC LED String Light that is a compact powerhouse built to withstand demanding conditions. This LED pole top mount lighting system features three, state-of-the-art AC LEDs paired with specially designed heat sinks for improved efficiency, thermal management, and durability. Available in 5000K cool white and 3000K warm white options, a 110? flood beam provides crisp, and bright illumination with broad coverage. Line-in power is facilitated by a 100` 16/3 SOOW cord with an explosion proof cord cap.

Light Features: The 240-watt EPLX-SL-PT-3X80W.RD2-TRC-20X-100C Pole Top AC LED String Light delivers brilliant illumination and robust performance in a convenient space-saving form. Equipped with three, 80-watt LED light heads along the system, a 110? wide flood beam provides crisp, bright light with broad coverage. During use, the entire system provides 25,200 lumens of output with a 5000K color temperature rating (or 22,800 lumens, when the 3000K color temperature rating is selected).

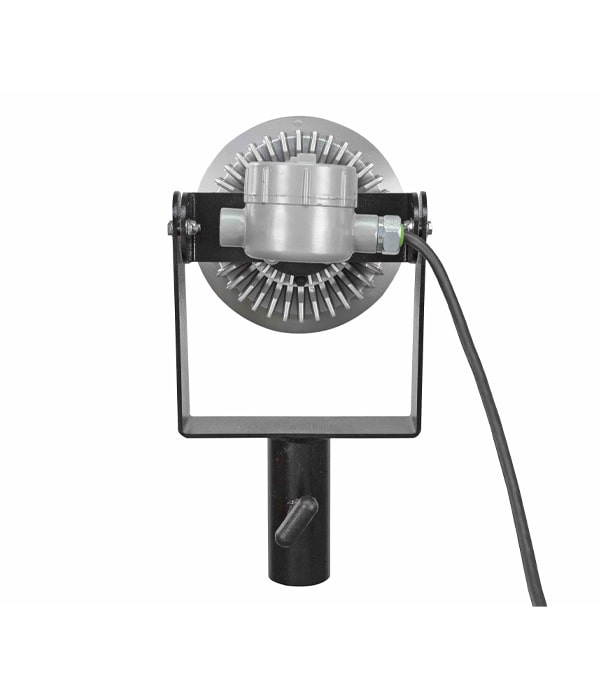

This explosion proof pole top string light fixture utilizes AC LEDs paired with a heavy-duty housing and an advanced heat sink that allows for improved efficiency and thermal performance. By eliminating the drivers associated with DC LEDs, space is freed up for more connective surface, accelerating heat dissipation and increasing durability. The specially designed heat sink allows for greater surface area contact with the air as well as a stronger airflow rate. Because this fixture is created for maximum thermal efficiency, it is ideal for applications in which the ambient operating temperature falls into extreme ranges, especially high heat applications. Furthermore, fewer sub-components also means fewer chances for secondary component failure. The simplified circuit system used within AC LEDs creates greater stability and enhances luminaire lifespan.

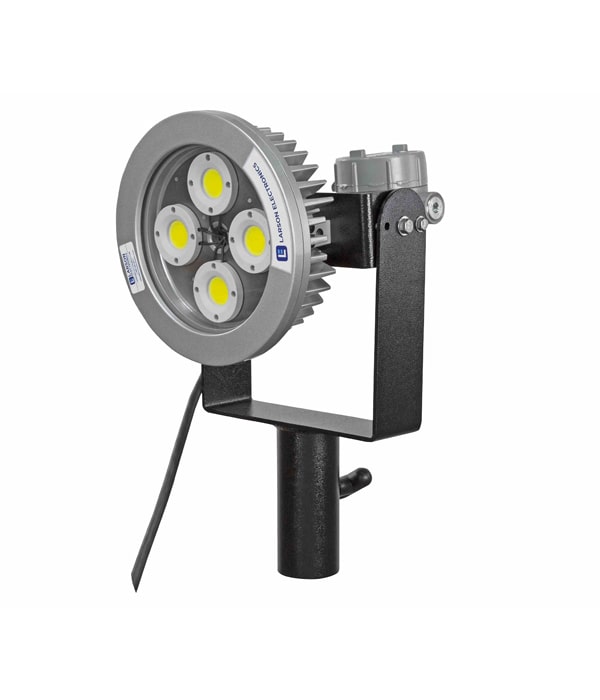

The EPLX-SL-PT-3X80W.RD2-TRC-20X-100C pole top slip fit mount explosion proof lights each contain an adjustable swivel bracket constructed of 3/8″ aluminum that allows 270? of adjustment and is attached to a slip fit yoke for easy installation. The slip fit yoke is built to customer`s specs, enabling operators to mount the explosion proof LED lights to their specific pole size.

The EPLX-SL-PT-3X80W.RD2-TRC-20X-100C is designed to endure the daily wear and tear inflicted by harsh outdoor conditions such as sun, wind, rain, snow and sleet. as well as to withstand the corrosive effects of saltwater spray in marine environments. Durable IP68 rated construction provides protection against the ingress of dust, dirt and humidity and allows this light to withstand the corrosive elements found within marine environments including saltwater spray. The copper free, non-sparking die-cast aluminum alloy housing and tempered glass lens are vibration and impact resistant, and the housing is treated with a coating that rejects dust and buildup.

The EPLX-SL-PT-3X80W.RD2-TRC-20X-100C is listed for use in the United States and Canada and carries IEC Ex and ATEX certifications.

LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.

LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. Solid state LED lighting is also safer for the environment as LEDs are 100% recyclable. And recycling simultaneously reduces operating costs by eliminating the need for the expensive special disposal services required with traditional gas burning and arc type lamps.

Dimming: The EPLX-HB-80W-RD3-LED-TRC can be wired with a dimmer switch for dimming capabilities. This gives operators the ability to manually adjust the brightness of the LED lamp quickly and easily. When using an electronic dimmer switch, the EPLX-HB-80W-RD3-LED-TRC will dim from 0% up to 100% via the user provided dimming switch. This explosion proof LED light fixture is compatible with Lutron C.L. series dimmer switches. Compatible dimmers in that series include the following: Diva? C?L? dimmer, Ariadni?/Toggler? C?L? dimmer, Lum?a? C?L? dimmer, Maestro? C?L? dimmer and Skylark? C?L? dimmer.

*PLEASE NOTE THAT ANY DIMMER INSTALLED ON THIS FIXTURE MUST BE LOCATED OUTSIDE OF THE HAZARDOUS AREA*

Voltage: The EPLX-SL-PT-3X80W.RD2-TRC-20X-100C is available in the following voltages: 120V AC, 208V AC, 220V AC, 240V AC and 277V AC.

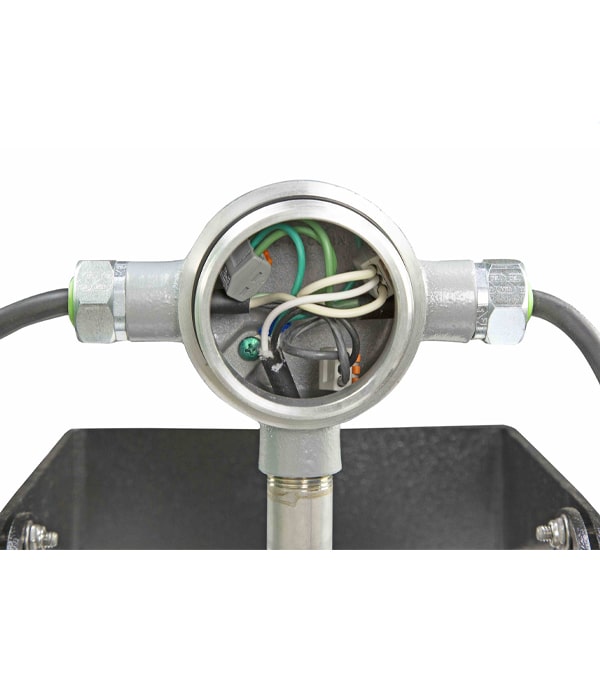

Wiring & Plug: This explosion proof LED string light is equipped with 100 feet of 16/3 SOOW line-in cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. A 20-foot 16/3 SOOW cord can be found between each lamp (total 40 feet).

**PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur.

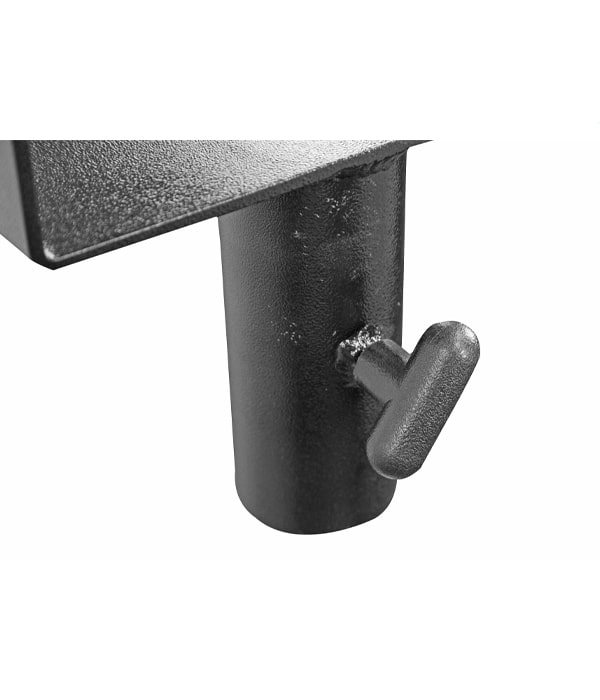

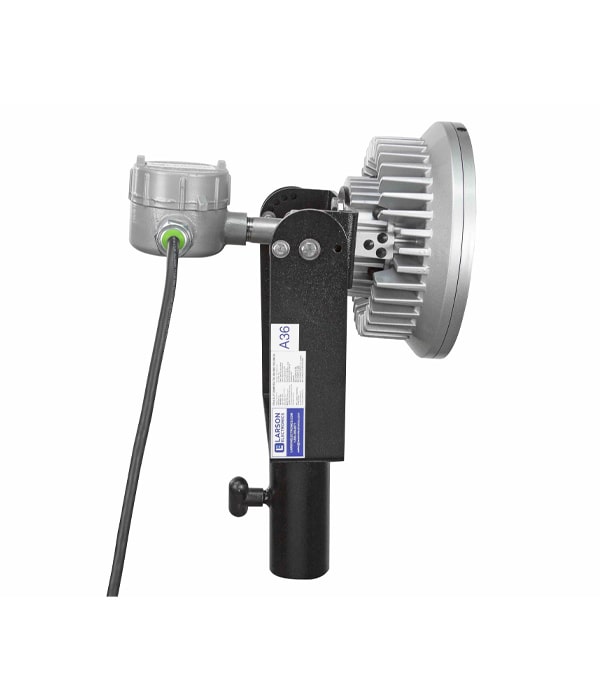

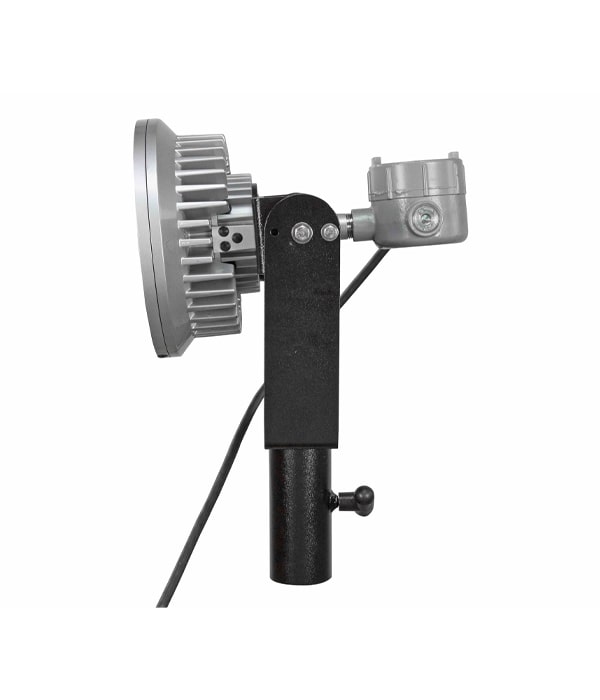

Mounting: The EPLX-SL-PT-3X80W.RD2-TRC-20X-100C pole top slip fit mount explosion proof LED string light features adjustable swivel brackets constructed of 3/8″ aluminum that allows over 270? of adjustment and are attached to slip fit yokes for easy installation. The slip fit yoke is built to customer`s specs, enabling operators to mount this explosion proof LED lighting system to their specific pole size. For example, selecting a 2″ OD mount means that the yoke mounts will fit onto pipes or bull horns with a 2″ OD.

Suggested Applications: Industrial grade construction, compact design, and versatile positioning options make this Class I Division 1 Groups B, C, & D, Class II Division 1 Groups E, F & G fixture and ideal lighting solution for oil refineries, petrochemical plants, painting facilities, offshore rigs, marinas, docks, warehouses, garages, and commercial buildings.

Features:

• Listing: United States, Canada, Europe
• Lamp Type: AC LED
• Lamp Qty: (3)
• Single-lamp Dimensions: 4.24″H x 9.21″OD
• Weight: –
• Voltage: 120V AC, 208V AC, 220V AC, 240V AC, 277V AC
• Single-lamp Watts: 80W
• Total Watts: 240W
• Single-lamp Lumens: 8,400 (5000K) or 7,600 (3000K)
• Total Lumens: 25,200 (5000K) or 22,800 (3000K)
• Luminous Efficacy: 105 Lm/W (5000K) or 95 Lm/W (3000K)
• Lamp Life: 60,000+ Hours
• Color Temp: 5000K Cool White, 3000K Warm White
• Color Rendering Index: >70 CRI
• Lamp Type: –
• Lamp Base: –
• Replacement Lamp: –
• Beam Angle: 110?
• Lighting Configuration: Wide Flood Beam
• Power Efficiency: >85%
• Power Factor: >0.9
• Amperage: 1.98A @ 120V AC, 1.14A @ 208V AC, 1.08A @ 220V AC, 0.99A @ 240V AC, 0.84A @ 277V AC
• Ambient Operating Temp Range: -60?C to +100?C
• Operating Temp Rating: T6
• Housing Material: Aluminum Alloy
• Lens Material: Tempered Glass
• Mounting: (3) Pole Top Mount
• Mount OD: 2″, 2-1/4″, 2-1/2″, 2-3/4″ or 3″
• Wiring: 100′ 16/3 SOOW Cord w/ Explosion Proof Cord Cap (Line-in), 20′ 16/3 SOOW Cord Between Each Lamp (Total 40′)
• Exp Cord Cap Options: 5-15P, 5-20P or 6-20P
