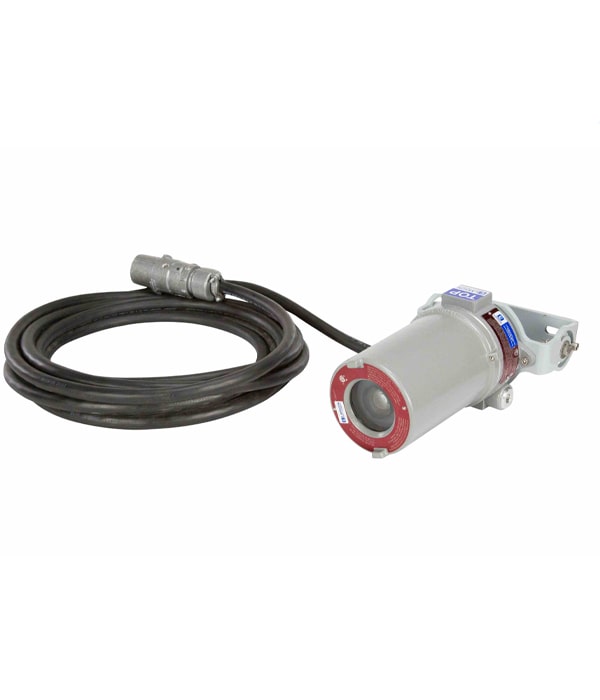

Larson Electronics EXPCMR-ALG-1080P-IC-1227-250C-QD-15C-12.4 Explosion Proof 1080p Analog Portable Observation Camera – Day/Night – 120/240V – 265′ 12/4 SOOW Cord

Larson Electronics EXPCMR-ALG-1080P-IC-1227-250C-QD-15C-12.4 Explosion Proof 1080p Analog Portable Observation Camera – Day/Night – 120/240V – 265′ 12/4 SOOW Cord

Description:

The EXPCMR-ALG-1080P-IC-1227-250C-QD-15C-12.4 explosion proof high definition analog camera from Larson Electronics is an inspection camera that can be used for remote observation in hazardous locations. It is available in a fixed lens configuration, a 3.6mm 90? lens to capture large wide areas, and can produce an image up to 1080p resolution. The EXPCMR-ALG-1080P-IC-1227-250C-QD-15C-12.4 allows operators to see visual process data from a centralized control room.

Camera Features: The EXPCMR-ALG-1080P-IC-1227-250C-QD-15C-12.4 portable explosion proof camera is designed to allow operators to have a live feed from inside a tank, reactor, vessel or other workplace observation in hazardous locations. The explosion proof camera is incredibly durable and ready to be deployed in many different workplace conditions. The camera is operated remotely from a centralized control room which saves both time and money as well as contributing to workplace safety.

This explosion proof camera features an infrared LED array to allow for low light and nighttime visibility. The camera will automatically switch over to IR mode when lux levels drop below a preset level. This allows operators to has up to 50` of visibility in the dark True day/night infrared cutoff filter removal creates a crisp, sharp image that transmits with zero latency to HD resolution via metal clad coax cable to customer provided remote mount DVR systems.

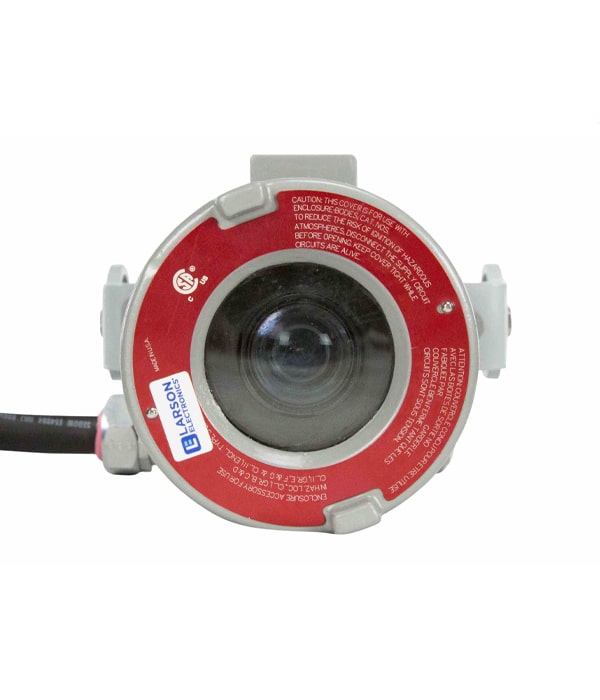

This remote inspection camera features a pressure-resistant 316 stainless steel body and weighs just under 4.5 pounds. The camera itself features 1 lux sensitivity, a 2-wire transmitter and a polished stainless steel mounting bracket as well as a built-in color CCD camera and a 1/3″ CCD sensor. The lens of the EXPCMR-ALG-1080P-IC-1227-250C-QD-15C-12.4 features a viewing angle between 28? and 60? and the minimum lens to object distance is 3.15 inches.

Wiring: Link-up with the camera is achieved via customer provided 5-conductor cable through one of the 3/4″ NPT hubs. The cable is ran back to the customer provided DVR system, mounted outside the hazardous location. Terminal strips within the camera allow customers to terminate the signal for the camera. A signal inverter (BNC-ALG-SGL-XMFR, one mounted internally in the camera enclosure, one included for connecting on output end of cable) is connected to the customer provided cable, converting the camera signal from stranded wire to BNC connector.

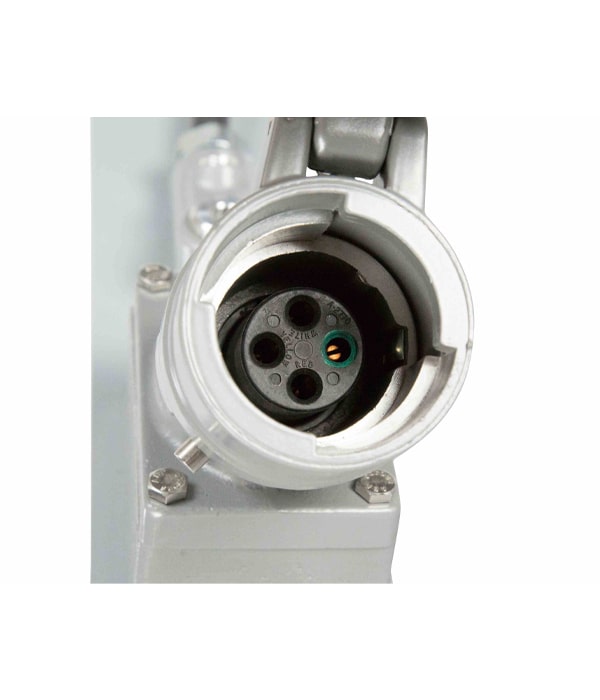

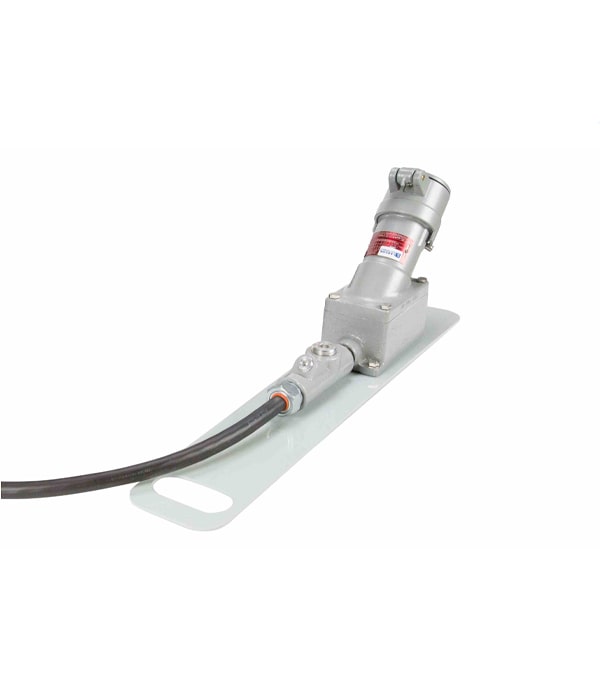

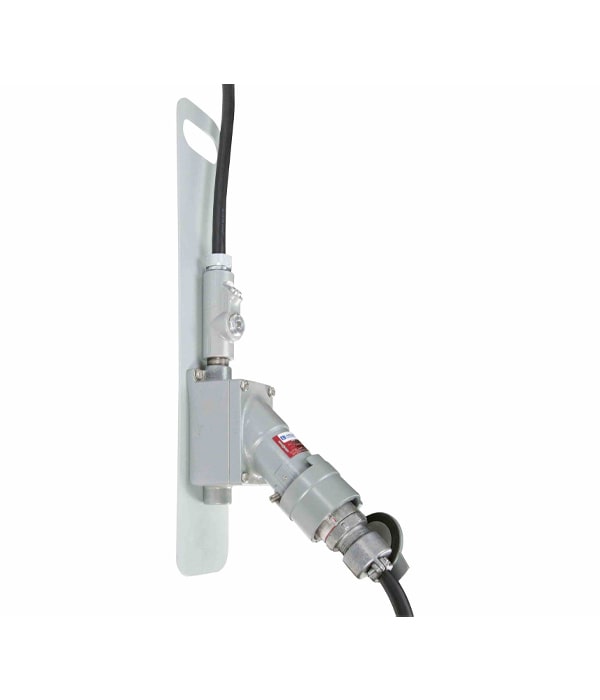

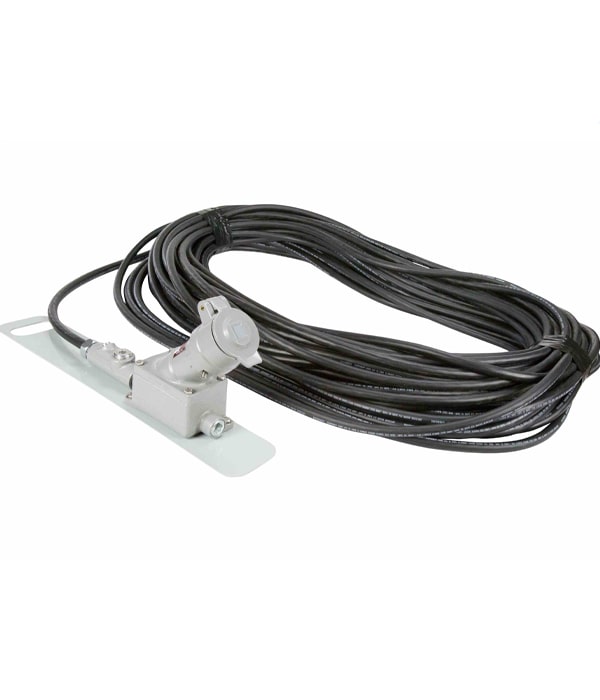

This unit operates on universal voltage 120/240V AC 50/60 Hz. The camera is connected to 250` of 12/4 SOOW cord with an explosion proof male plug. An explosion proof female connector that attaches/connects to the explosion proof plug is equipped with 15` of 12/4 SOOW cord with blunt cut end, completing the wiring configuration. Both the explosion proof plug and explosion proof connector are constructed of non-sparking aluminum.

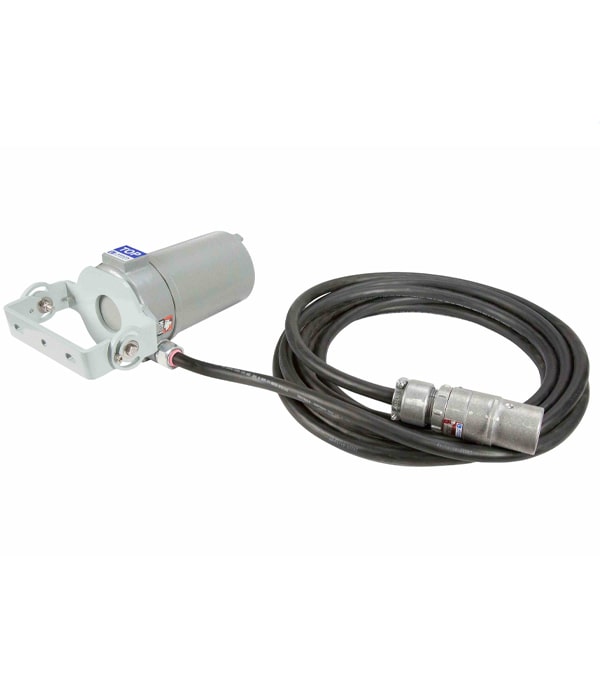

Mounting: The EXPCMR-ALG-1080P-IC-1227-250C-QD-15C-12.4 explosion proof remote observation camera is typically mounted to flat surfaces for observation. The included adjustable flat surface bracket has two set screws on the bracket, allowing operators to loosen the mounting bracket, adjust the camera`s tilt orientation, and re-tighten to hold the camera in position. A single thru-hole mounting bolt allows operators to adjust the rotation of the camera by loosening one bolt. Accessory pole mounts and magnetic mounts are available.

Applications: Vessel, tank and reactor monitoring, remote observation of external facilities, monitoring of cleaning, spray patterns, mixing, foaming, reaction, and level.

Features:

• Listing: NRTL Listed for United States & Canada
• Dimensions: 8″L x 6″W x 9″H
• Weight: –
• Voltage: 100-240V 50/60Hz (primary), 12V DC (secondary)
• Video Framerate: 1080p @ 30fps
• Image Sensor: 1/2.7″ Progressive Scan CMOS
• Signal System: NTSC
• Effective Pixels: 1930(H) * 1088(V)
• Min. Illumination: 0.1 Lux @ F1.2 AGC On / 0 Lux w/ IR
• Shutter Speed: 1/30s to 1/50,000s
• Lens: 3.6mm
• Angle of View: 90?
• Day/Night: ICR
• Infrared Range: Up to 50`
• D/N Mode: Color / BW/ Auto / EXT
• White Balance: Auto / User / Push / 8000K / 6000K / 4200K / 3000K
• Privacy Mask: On/Off, maximum 2 zones
• Motion Detection: On/Off, maximum 4 zones
• Blacklight Compensation: Support
• Anti-flicker: On/Off
• Display Functions: Digital noise reduction, Mirror
• Video Output: (1) Analog HD Output
• Protocol: Coaxitron
• Signal to Ratio: >52 dB
• Language: English
• Ambient Temperature Range: -10?C to +50?C
• Housing Materials: Aluminum
• Lens Material: Tempered Glass Toll
• Mounting: Adjustable Bracket w/ set screws
• Signal Connection: Terminal Strips, Customer Provided Stranded Wire, Customer Provided Inverter to BNC Connector
• Cord Configuration: 250` 12/4 SOOW Cord w/ EXP Male Plug from Camera to EXP Female Connector and 15′ 12/4 SOOW Cord w/ Blunt Cut End
