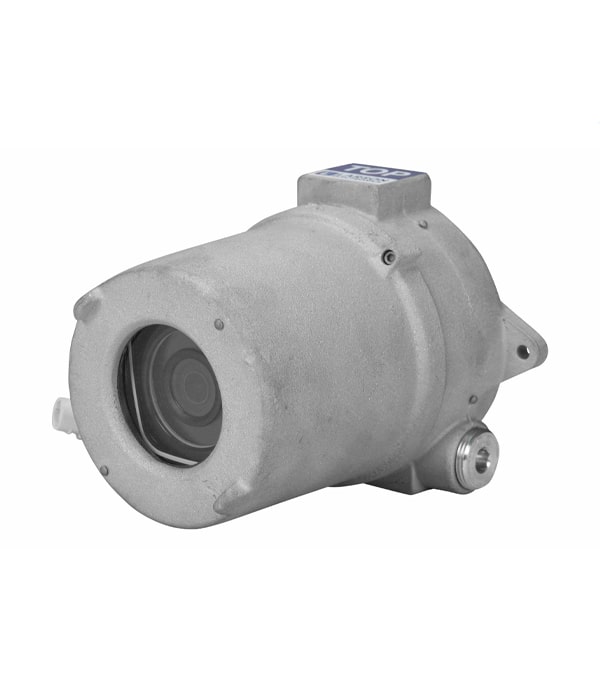

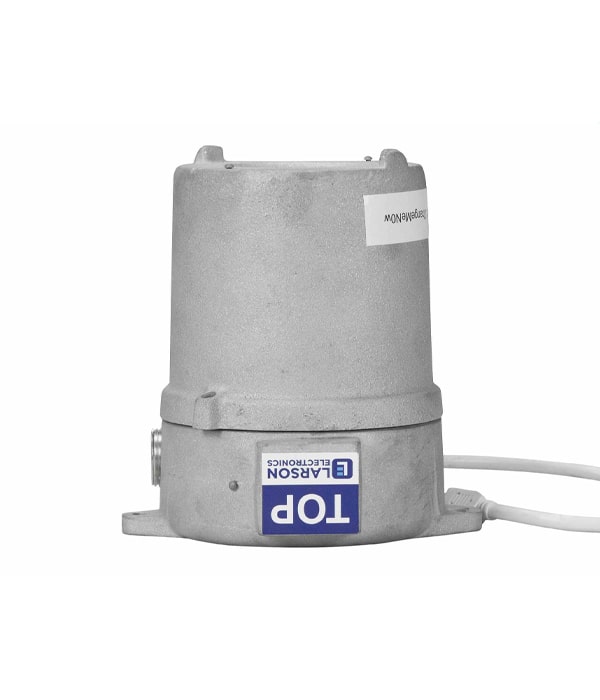

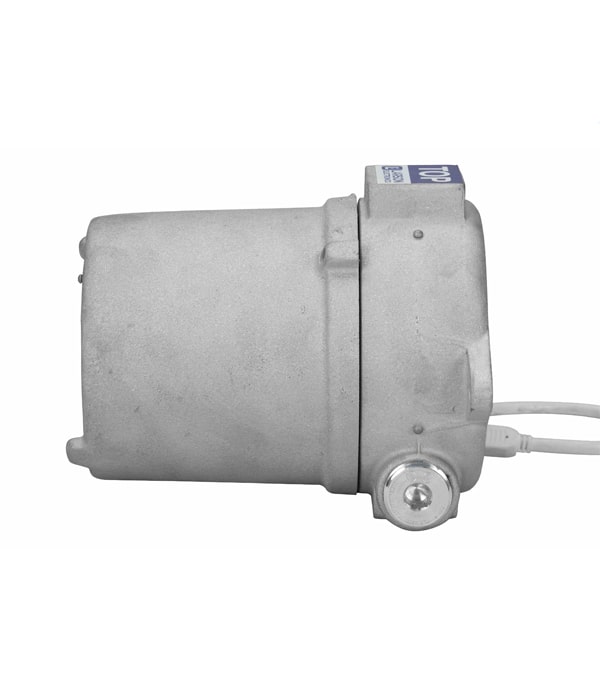

Larson Electronics EXPCMR-IP-POE-2MP-IR-108D-MOD2 Explosion Proof Network IP Camera – 2.0MP – 30FPS – Low Light IR Array – 108? FOV – Surface Mount – Natural Metallic Powder Coat

Larson Electronics EXPCMR-IP-POE-2MP-IR-108D-MOD2 Explosion Proof Network IP Camera – 2.0MP – 30FPS – Low Light IR Array – 108? FOV – Surface Mount – Natural Metallic Powder Coat

Description:

The EXPCMR-IP-POE-2MP-IR-108D-MOD2 from Larson Electronics is a Network Explosion Proof Camera that is ideal to use as a remote inspection camera specifically designed for observation in hazardous locations. This explosion proof, dust/ignition proof, weather proof and tamper resistant camera provides the operator with a live feed from inside tanks, reactors, vessels or other hazardous locations. Operated remotely from a centralized control room, this remote inspection camera saves both time and money as well as contributing to workplace safety. The EXPCMR-IP-POE-2MP-IR-108D-MOD2 features a natural metallic powder coat finish that has a natural metal appearance while having the corrosion resistance of powder coating.

Camera Features: The EXPCMR-IP-POE-2MP-IR-108D-MOD2 Network Explosion Proof Camera features a built-in 1/2.5″ progressive-scan CMOS image sensor that delivers up to 2.0MP resolution at 30 fps. The wide angle fixed lens with 108? field of view is designed to cover large areas and work spaces. This explosion proof camera provides a crisp and clear image for everything within the 108? focal area. Total distance is dependent on mounting height and angle.

The explosion proof unit does not come with built-in infrared lights. To use infrared-light related features, such as capturing images in dark and low-light conditions, an external infrared light must be used with the explosion proof device. For 12-24V DC applications, we recommend the Larson Electronics 12-watt explosion surface-mount infrared LED light (EXHL-TRN-LE3-IR-1224). As an alternative, we also offer the EXHL-TRN-LE3-IR-1227 for 120-240V AC applications.

This remote inspection camera utilizes 120dB true Wide Dynamic Range, 3D Digital Noise Reduction and a true day/night IR-Cut Filter Removal to produce clear images in variable and low light conditions. The camera automatically switches from full color to IR mode when visible light falls below a certain level.

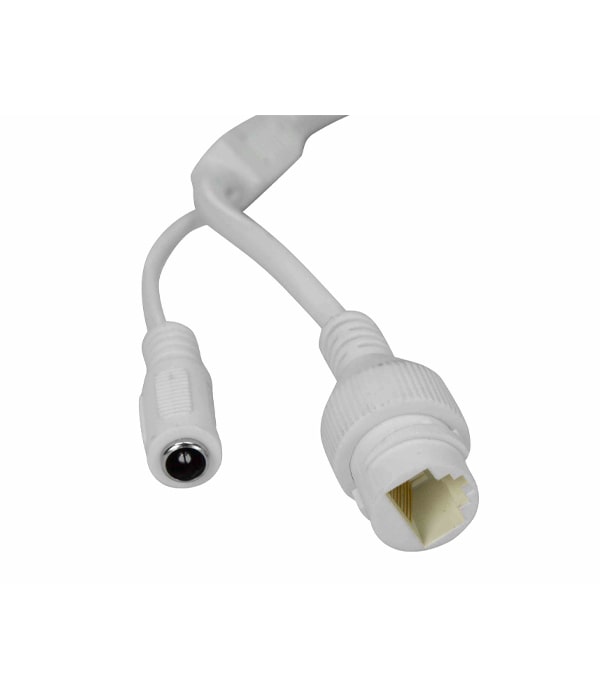

Wiring: Link-up with the camera is achieved via a customer provided RJ45 Ethernet cable which is ran back to the customer provided DVR system mounted outside the hazardous location. Camera power is delivered via the same Ethernet cable using Power over Ethernet (PoE) technology. This not only increases flexibility in deployment, but also provides time and cost savings as well.

Our explosion proof cameras with Power over Ethernet (PoE) features enable data transfers and power to be passed through a single Ethernet cable that is usually a Cat 3/Cat 5 cable or better. There are several types of PoE, which come with their own respective standard and maximum power to port capabilities. The IEEE 802.3af PoE standard, with a voltage range of 44.0 – 57.0V, offers 15.4W of DC power for each port. The IEEE 802.3at PoE standard, with a voltage range of 50.0 ? 57.0V, provides up to 30W of DC power per port, which is ideal for surveillance cameras, antennas and network access points. The IEEE 802.3bt PoE standard, with a voltage range of 50.0 ? 57.0V, provides 60W of DC power for each port. In order to utilize PoE properly, the components, such as the receiving unit and sending device, must be PoE compliant.

Recording: To record the stream from this camera, a NVR (network video recorder) is required. Larson Electronics provides a line of explosion proof, hazardous location, and non-classified NVR`s to work in conjunction with this explosion proof camera. This camera is live-view capable without any NVR system via remote access to the camera. Three streams are available, one main stream for recording and two sub streams for live viewing or additional resources. Each stream can be configured to different resolutions and frame rates.

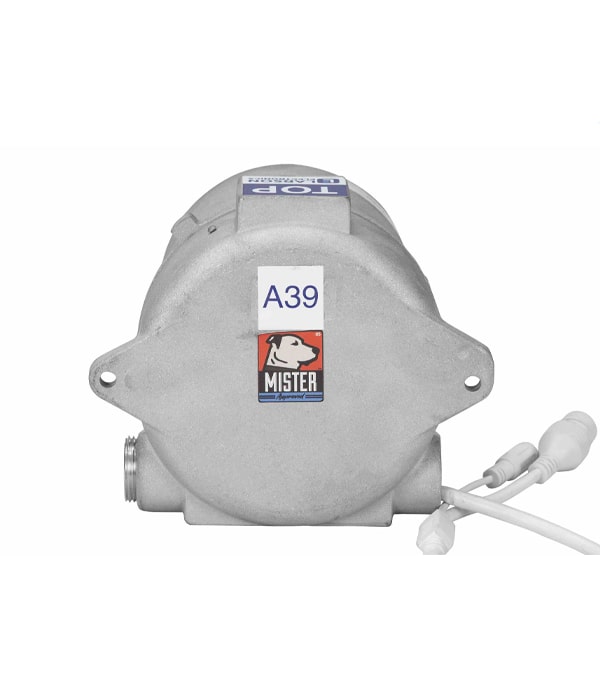

Mounting: The EXPCMR-IP-POE-2MP-IR-108D-MOD2 Network Explosion Proof Camera features an ATEX/IECEx certified copper-free aluminum alloy body and weighs a total of 0.9 pounds. The camera does NOT include a mounting bracket.

Applications: Vessel, tank and reactor monitoring, remote observation of external facilities, monitoring of cleaning, spray patterns, mixing, foaming, reaction, and level.

Features:

• Dimensions: 2.76″ x 6.1″
• Camera Weight: 0.9 lb
• Total Watts: 5W (Max)
• Power Source: PoE (802.3af)
• Image Sensor: 1/2.5″ Progressive Scan CMOS sensor
• Signal System: NTSC
• Video Resolution: 2.0MP (1920×1080)
• Frame Rate: Up to 30fps @ 1920×1080 resolution
• Compression Type: H.265+, H.265, H.264 OVC, H.264, MJPEG
• Bit Rate: 32Kbps – 16Mbps
• Focal Length: 2.8mm
• Max Field of View: 108?
• Shutter Speed: 1/3s to 1/10,000s
• Min. Illumination: 0.01 lux (Color) / 0 lux (w/ External IR)
• Day/Night: True D/N w/ Mechanical Cut Filter
• Infrared Light: NA – Requires Customer-provided External Infrared Light
• Digital Noise Reduction: 3D DNR
• Ethernet Speed: 10/100
• Protocols: TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP and more
• Remote Configuration: Yes
• Ambient Temperature Range: -22?F to +140?F
• Housing Materials: Copper-Free Aluminum Alloy; Natural Metallic Powder Coating
• Lens Material: 3/8″ Thick Tempered Glass
• Mounting: NO Mounting Bracket Included
• Wiring Hub: (2) 3/4″ NPT
