Larson Electronics EXPCMR-NDAA-IP-POE-2MP-IR-108D-APV Explosion Proof Network IP Camera – 2.0MP Resolution – 30FPS – Low Light IR Array – 108? FOV – Air Nozzle – NDAA

Larson Electronics EXPCMR-NDAA-IP-POE-2MP-IR-108D-APV Explosion Proof Network IP Camera – 2.0MP Resolution – 30FPS – Low Light IR Array – 108? FOV – Air Nozzle – NDAA

Description:

The EXPCMR-NDAA-IP-POE-2MP-IR-108D-APV from Larson Electronics is a Network Explosion Proof Camera that is ideal to use as a remote inspection camera specifically designed for observation in hazardous locations. This explosion proof, dust/ignition proof, weather proof and tamper resistant camera provides the operator with a live feed from inside tanks, reactors, vessels or other hazardous locations. Equipped with built-in infrared, this remote inspection camera saves both time and money as well as contributing to workplace safety. This NDAA compliant unit features a pressurized air nozzle with a female stainless steel connector, located at front of the camera lens for proactive clarity.

Camera Features: The EXPCMR-NDAA-IP-POE-2MP-IR-108D-APV Network Explosion Proof Camera features a built-in 1/2.5″ progressive-scan CMOS image sensor that delivers up to 2.0MP resolution at 30 fps. The wide angle fixed lens with 108? field of view is designed to cover large areas and work spaces. This explosion proof camera provides a crisp and clear image for everything within the 108? focal area. Total distance is dependent on mounting height and angle.

This explosion proof camera complies with the 2019 National Defense Authorization Act (NDAA). The regulation bans federal governments, their contractors and businesses with national security interests from buying and using surveillance equipment made by specific major China-based manufacturers, including Hikvision, Dahua and their OEMs. Security products sold by Honeywell, Bosch, Panasonic, ADT, Flir and many more are affected by the ban. NDAA compliance also includes a ban on ZTE, Huawei and Hytera telecommunication equipment.

The explosion proof unit comes with built-in infrared lights. For additional infrared illumination, an external infrared light can be used with the explosion proof device (not included). For 12-24V DC applications, we recommend the Larson Electronics 12-watt explosion surface-mount infrared LED light (EXHL-TRN-LE3-IR-1224). As an alternative, we also offer the EXHL-TRN-LE3-IR-1227 for 120-240V AC applications.

This remote inspection camera utilizes 120dB true Wide Dynamic Range, 3D Digital Noise Reduction and a true day/night IR-Cut Filter Removal to produce clear images in variable and low light conditions. The camera automatically switches from full color to IR mode when visible light falls below a certain level.

Wiring: Link-up with the camera is achieved via a customer provided RJ45 Ethernet cable which is ran back to the customer provided DVR system mounted outside the hazardous location. Camera power is delivered via the same Ethernet cable using Power over Ethernet (PoE) technology. This not only increases flexibility in deployment, but also provides time and cost savings as well.

Our explosion proof cameras with Power over Ethernet (PoE) features enable data transfers and power to be passed through a single Ethernet cable that is usually a Cat 3/Cat 5 cable or better. There are several types of PoE, which come with their own respective standard and maximum power to port capabilities. The IEEE 802.3af PoE standard, with a voltage range of 44.0 – 57.0V, offers 15.4W of DC power for each port. The IEEE 802.3at PoE standard, with a voltage range of 50.0 ? 57.0V, provides up to 30W of DC power per port, which is ideal for surveillance cameras, antennas and network access points. The IEEE 802.3bt PoE standard, with a voltage range of 50.0 ? 57.0V, provides 60W of DC power for each port. In order to utilize PoE properly, the components, such as the receiving unit and sending device, must be PoE compliant.

Recording: To record the stream from this camera, a NVR (network video recorder) is required. Larson Electronics provides a line of explosion proof, hazardous location, and non-classified NVR`s to work in conjunction with this explosion proof camera. This camera is live-view capable without any NVR system via remote access to the camera. Three streams are available, one main stream for recording and two sub streams for live viewing or additional resources. Each stream can be configured to different resolutions and frame rates.

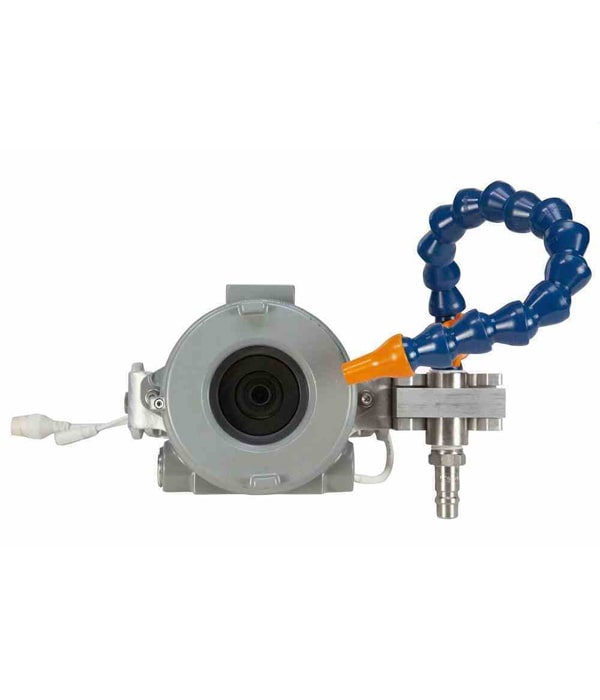

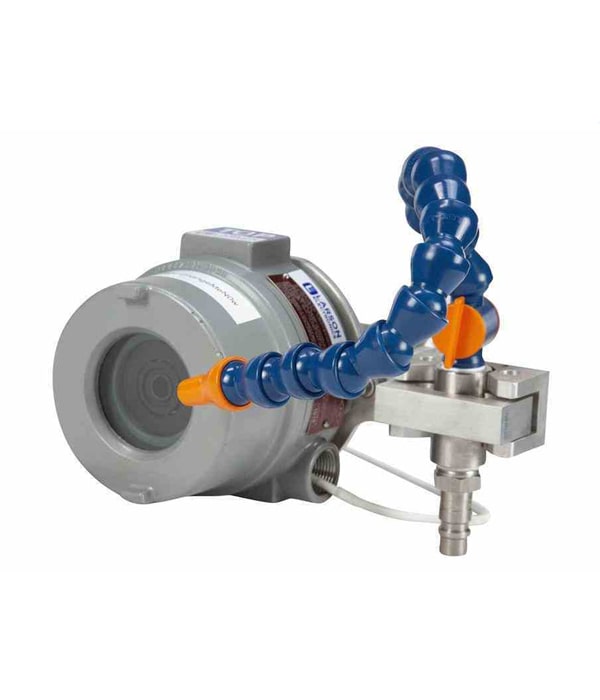

Pressurized Air Nozzle: Designed for grain processing facilities and wet environments, this unit is equipped with a pressurized air nozzle at the front of the camera lens. The component features a 1/2″ female stainless steel quick disconnect connector for hose attachments. With continuous airflow hitting the lens of the device, accumulation of particles is greatly decreased. This feature is suitable for hazardous locations that handle flying dust and other types of debris that can obstruct cameras, as well as for monitoring operations in wet locations.

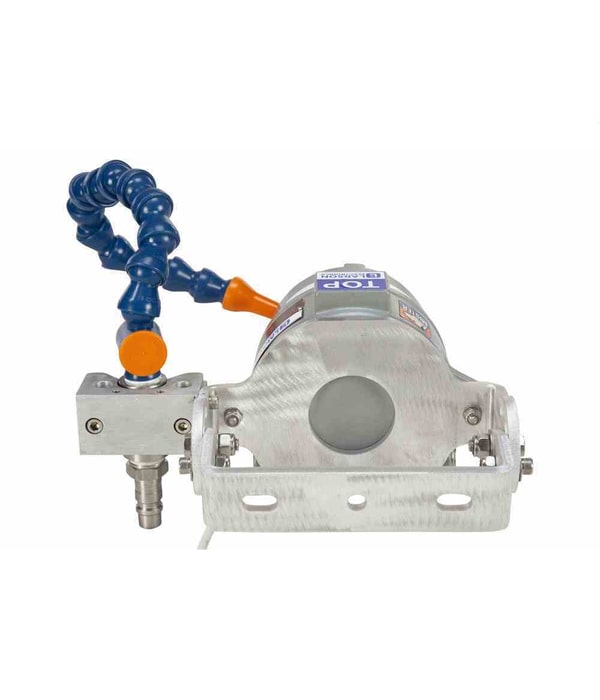

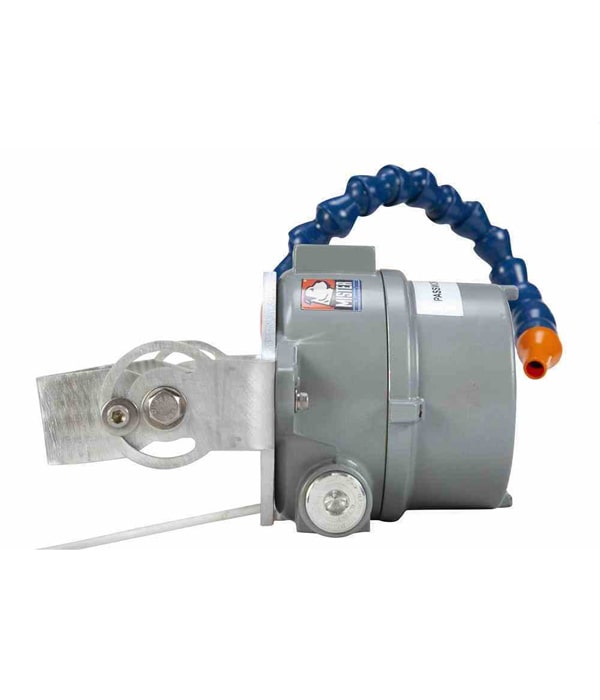

Mounting: The EXPCMR-NDAA-IP-POE-2MP-IR-108D-APV Network Explosion Proof Camera features an ATEX/IECEx certified copper-free aluminum alloy body and weighs a total of 0.9 pounds. The camera includes an adjustable rear-mounted polished stainless steel mounting bracket/handle. Additional accessory pole mounts and magnetic mounts are available separately.

Applications: Vessel, tank and reactor monitoring, remote observation of external facilities, monitoring of cleaning, spray patterns, mixing, foaming, reaction, and level.

Features:

• Dimensions: 2.76″ x 6.1″
• Camera Weight: 0.9 lb
• Total Watts: 5W (Max)
• Power Source: PoE (802.3af)
• Image Sensor: 1/2.5″ Progressive Scan CMOS sensor
• Signal System: NTSC
• Video Resolution: 2.0MP (1920×1080)
• Frame Rate: Up to 30fps @ 1920×1080 resolution
• Compression Type: H.265+, H.265, H.264 OVC, H.264, MJPEG NRTL
• Bit Rate: 32Kbps – 16Mbps
• Focal Length: 2.8mm
• Max Field of View: 108?
• Shutter Speed: 1/3s to 1/10,000s
• Min. Illumination: 0.01 lux (Color) / 0 lux (w/ Built-in IR)
• Day/Night: True D/N w/ Mechanical Cut Filter
• Infrared Light: Built-in
• Air Hose Coupler Size: 1/2″
• Maximum Air Pressure: 1/2″
• Digital Noise Reduction: 3D DNR
• Ethernet Interface: RJ45
• Ethernet Speed: 10/100
• Protocols: TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTSP and more
• Remote Configuration: Yes
• Ambient Temperature Range: -22?F to +140?F
• Housing Materials: Copper-free Aluminum Alloy
• Lens Material: 3/8″ Thick Tempered Glass
• Mounting: Adjustable rear-mounted handle/bracket
• Wiring Hub: (2) 3/4″ NPT
