Description:

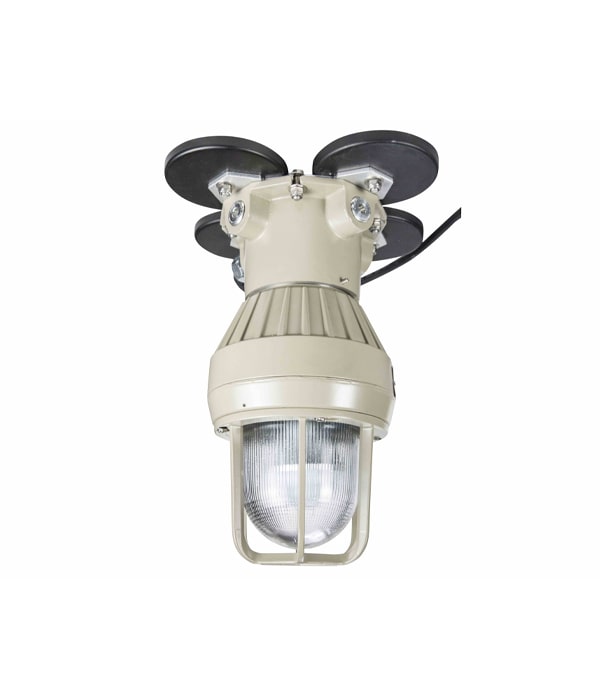

The EXPLED-SOL12-M-SW.M-10C from Larson Electronics is a Solar Powered Explosion Proof LED Light that is an ideal lighting solution for remote areas and standalone applications where connection to external power is either impractical or unavailable. This unit is magnetically mounted and offers 12 hours of continuous operation per charge and has a built-in day/night sensor with on/off switch for efficient power usage. Also included is a magnetically mounted explosion proof switch to control light operation. When ordering the solar powered luminary, please select the preferred LED color and strobing pattern.

This explosion proof LED light is powered by two 8aH sealed lead acid batteries that are recharged by a 30-watt solar panel. Light output comes from a 12-watt LED lamp that produces 1,260 lumens. When fully charged, this luminary is capable of operating continuously for 12 hours. To ensure consistent operation during nighttime conditions, a built-in day/night feature, coupled with an on/off switch is available. The battery pack in the EXPLED-SOL12-M-SW.M-10C is contained within the solar panel, not the light. Illumination produced by the explosion proof LED light will cover an area approximately 55`L x 55`W when mounted 12 feet from the ground.

As with all solar powered equipment, charging time is affected by the amount of available ambient light. When ambient light levels drop below a certain level, such as on cloudy days, the unit will not recharge as quickly. A remote mount on/off switch activates/shuts off the solar panel according to the operator`s preferences.

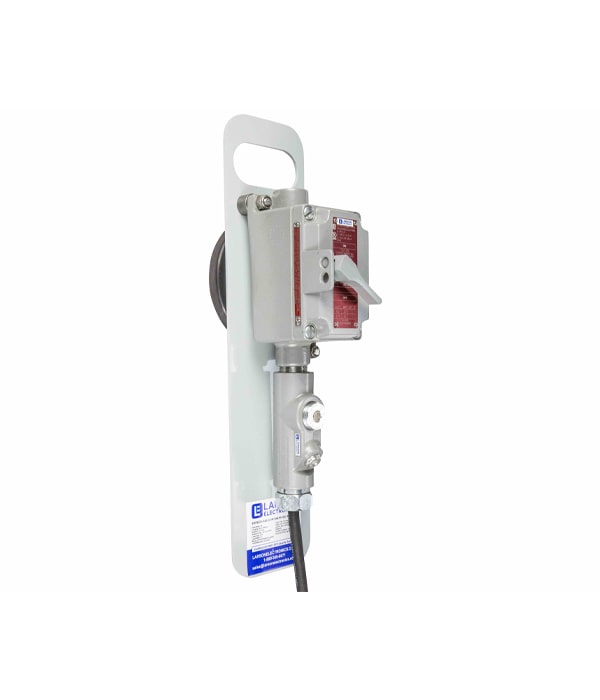

Explosion Proof Inline Switch:This explosion proof tumbler switch is ideal for operators seeking a high quality explosion proof switch rated for use in hazardous areas designated Class 1 Division 1 and Class 2 Division 1. The entire unit is constructed of malleable iron and contains an internal sealing chamber constructed of copper free aluminum. The switch has 0ft of SOOW cord coming off of the panel and works as a pendant remote on/off switch for the light.

Durability: This hazardous area light (lamp fixture only) is NRTL Certified to UL Listed for Class I Division 1 Groups C and D; Class I Division 2 Groups A, B, C and D; and Class II Division 2 Groups F and G. These lights are also compliant with NEMA 4X standards and marine-rated for use in salt water environments. The high power LED cluster is protected by an internal cooling fin array that reduces heat build up for longer LED life and higher light output consistency. An internal DIP switch allows operators to choose from steady on, single flash or double flash modes.

The housing is made of high strength copper-free aluminum alloy with a baked powder epoxy finish and is magnetically mounted with a flat surface magnetic mount consisting of (3) 200lb magnets. The fixture ships with 20 feet of 12/2 SOOW cable that connects the light and the panel, and custom lengths are available upon request. Please contact us for special requirements.
Round Pole
Square Pole
Surface
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.

LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.

Applications: Chemical plants, oil refineries, wastewater facilities, solvent storage areas, food processing plants, emergency lighting, notification lighting and remote hazardous locations compatible with the unit.

NOTE: Larson Electronics has further upgraded the options available with this light. We expect the light to be mounted separately from the panel. This means the solar panel can be mounted in direct sunlight (not in the hazardous area) while the light is mounted in a hazardous area workspace. Standard installation for explosion proof lighting, including threaded rigid pipe to the LED light fixture and appropriate seal-offs, etc. are required.

Features:

• Unit Type: Solar Powered LED Light
• Solar Panel Dimensions: 14.3″ x 27.89″ x 3.19″
• Lamp Dimensions: 7.44″ x 11.1″
• Battery: (4) 8aH Sealed Lead Acid Batteries
• Charging Time: 5 Hours
• Runtime: 12 Hours
• Operation: Remote On/Off Switch
• Ambient Temp: -45?C to +55?C
• Panel Mounting: Flat Surface / Round/Square Pole
• Lamp Watts: 12
• Lamp Lumens: 1,260
• Lamp Temp Rating: T6 – All Voltage and Temperature Ranges
• Housing Material: Copper-free Aluminum Alloy
• Housing Finish: Baked Powder Epoxy Finish
• Wiring: 20` 12/2 SOOW Cord (light to panel), 10` 12/2 SOOW (Switch to Panel)
• Lamp Wiring Hub: 3/4″ Threaded
• Lamp Mount: Flat Surface Magnetic Ceiling Mount
• Weight: 30 lbs
