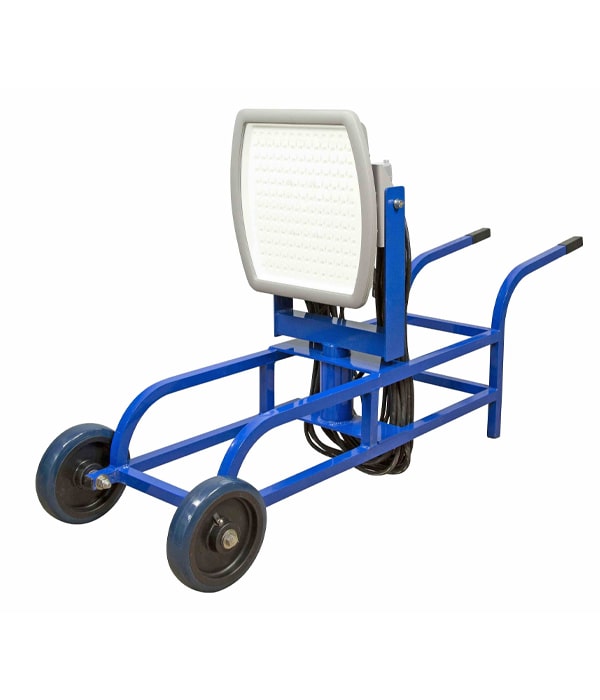

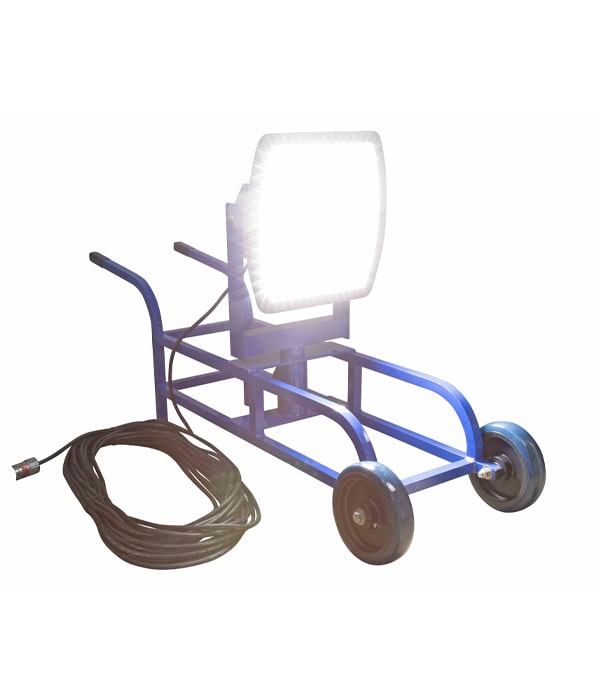

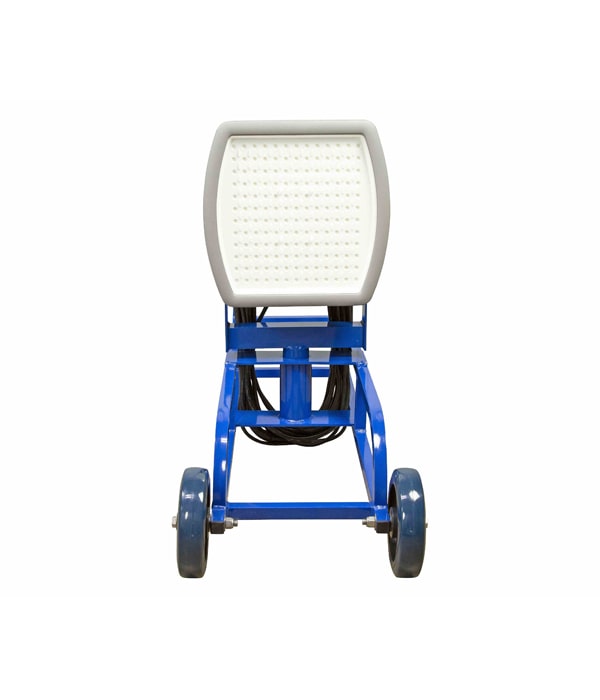

Larson Electronics HAL-16C-185LED-CPR-100 185 Watt Hazardous Location LED Light – Wheelbarrow Cart – C1D2 – ATEX – 100 foot Cord w/ EXP Plug

Larson Electronics HAL-16C-185LED-CPR-100 185 Watt Hazardous Location LED Light – Wheelbarrow Cart – C1D2 – ATEX – 100 foot Cord w/ EXP Plug

Description:

The Larson Electronics HAL-16C-185LED-CPR-100 hazardous location LED light cart provide operators with a powerful and energy efficient alternative to other hazardous area luminaries such as high pressure sodium (HPS), metal halide (MH), and halogen lights. LED technology and a sturdy design make this light perfect for a wide variety of illumination needs. The durable wheelbarrow cart design can be adjusted for angle and provides a sturdy and rugged stand for portable illumination, temporary hazardous area lighting, and other hazardous location lighting needs.

This Class I Division 2 explosion proof LED portable light tower provides 18,500 lumens of lighting power while drawing 185W. The fixture on this hazardous location wheelbarrow cart LED light stand is built from durable die cast aluminum with a tempered glass lens while the frame itself is made from rugged aluminum with a powder coated blue finish. This hazardous location LED light stand is rated for 100,000+ hours of lamp life and is adjustable to the desired angle. The wheelbarrow cart has the ability to fit through standard sized manhole covers for even more versatility in work site deployment. The HAL-16C-185LED-CPR-100 is also a great option when upgrading lighting from older and higher maintenance cost explosion proof lighting.

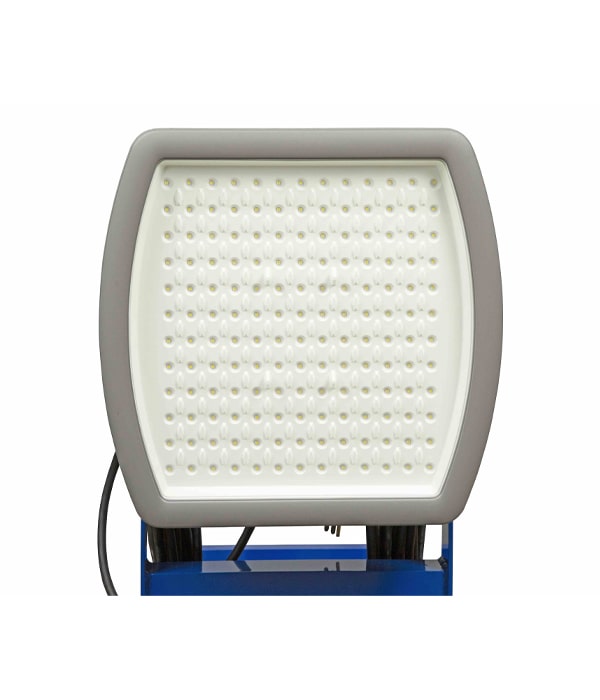

The HAL-16C-185LED-CPR-100 is available in a wide range of voltage options from 90-305 VAC. It features 156 individual LEDs that offer high-quality light in a 120? beam spread. Recommended in a color temp of 5700K, this light is also available in 4000K and 2700K. The cool white of a 5700K color temperature fixture provides clear, bright light for great illumination of any work area. A dust resistant coating protects the rear cooling fins from excessive dust build-up making this hazardous area LED lighting unit from overheating and compromising the lifespan of the LEDs.

LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.

LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.

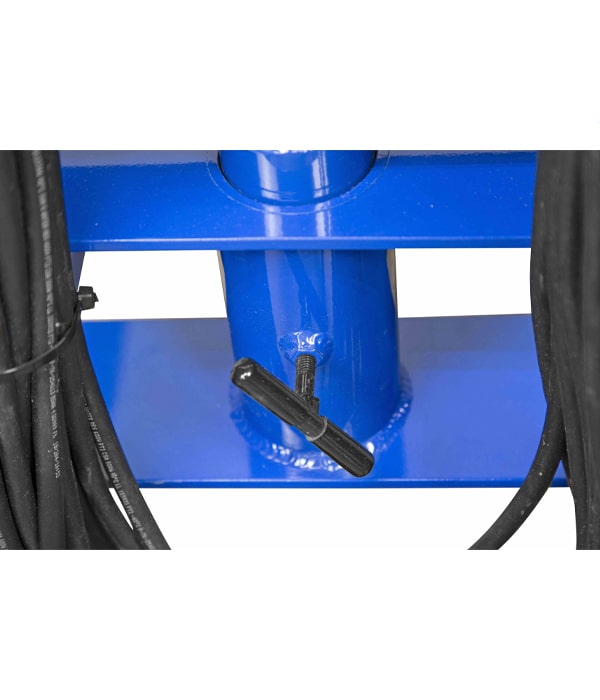

Cart: This C1D2 LED light fixture comes with a durable and ruggedly designed wheelbarrow cart for easy deployment in a wide variety of work areas. The angle of the hazardous location LED light fixture can be adjusted 90? up or down via a T-handle located on the side of the stand and has the ability to rotate 360?. The solid wheels make it easy for operators to tilt the HAL-16C-185LED-CPR-100 up by the handles and move the hazardous location LED light to a new location. The LED light fixture can be easily and quickly removed so that the fixture can fit through standard sizes manhole covers for tank cleaning and other similar tasks. The wheeled design of this hazardous location LED light cart makes for easy transportation around any location or work site. The dimensions of the base stand design lends itself well as a temporary hazardous location lighting and as a source of illumination in tight areas. The 100 feet of 16/3 SOOW cable on the leaves plenty of room for easy movement around even large work areas.

5-15 Straight Blade Plug
5-20 Straight Blade Plug
6-20 Straight Blade Plug

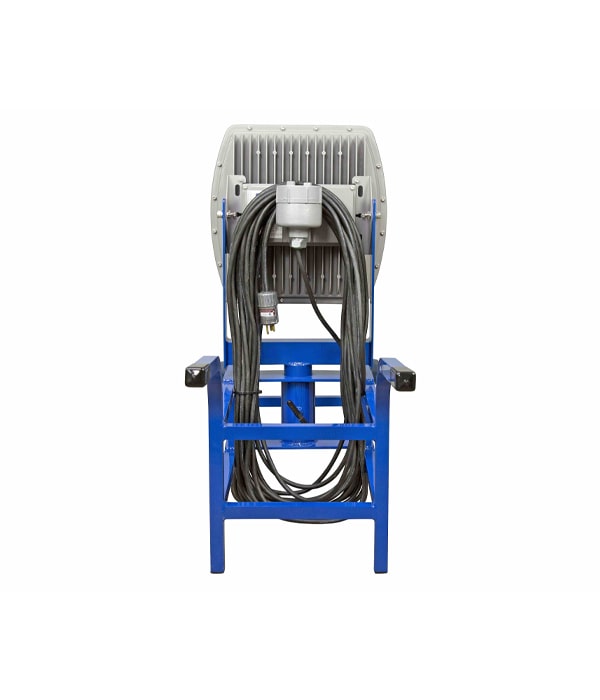

Wiring & Plug: The is outfitted with 100` of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur.

Applications:Refineries, Storage Facilities, Gas and Oil Facilities, Wastewater and Sewage Plants, Gas Stations, Farm Buildings, Aerospace, Military, Oil Rigs, and Frac Pads

Features:

• Lamp Type: LED
• LED Light Dimensions: 15.75″L x 15.75″W x 7.28″H
• Weight: 30 lbs
• Voltage: Universal- 90-305V AC, 50/60Hz
• Total Watts: 185W
• Total Lumens: 18,500
• Luminous Efficacy: 100 Lm/W
• LED Lamp Life Expectancy: 100,000+ Hours
• Color Temp: 5700K, Cool White (Also available in 4000K and 2700K)
• Beam Angle: 120?
• Power Factor: ~0.98
• Operating Temperature Range: -30?C to +65?C
• Housing Material: Die Cast Aluminum
• Lens Material: Tempered Glass
• Housing Color: Grey
• Mounting: Adjustable Wheelbarrow Cart
• Wiring: 100` 16/3 SOOW Cable
• Cord Cap: 5-15, 5-20, or 6-20 Explosion Proof Cord Cap
