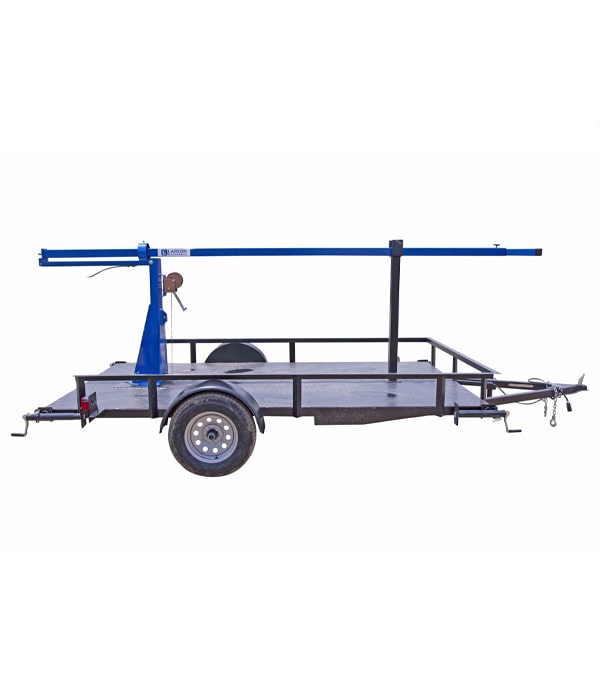

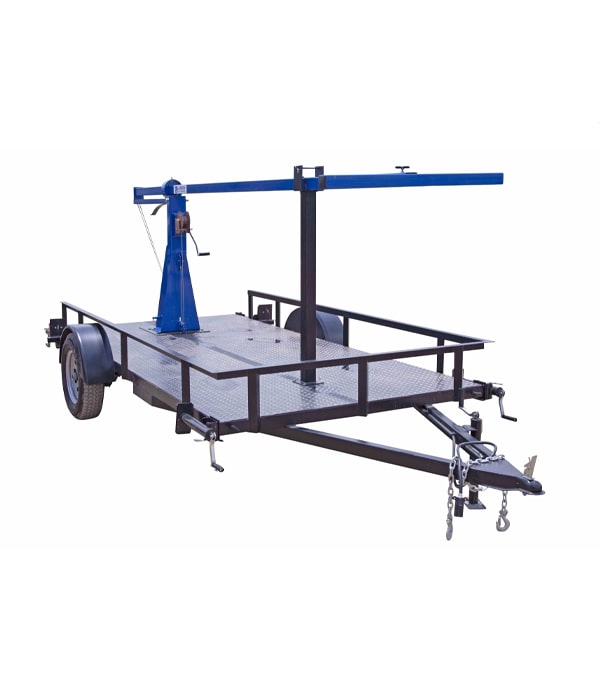

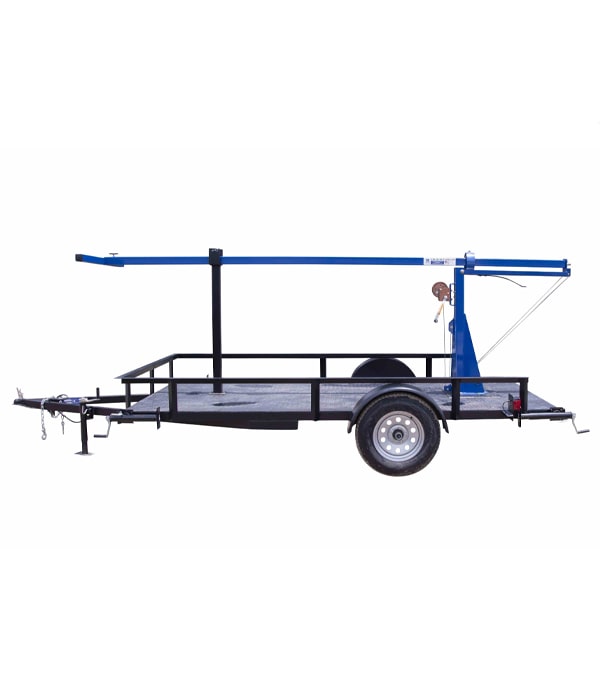

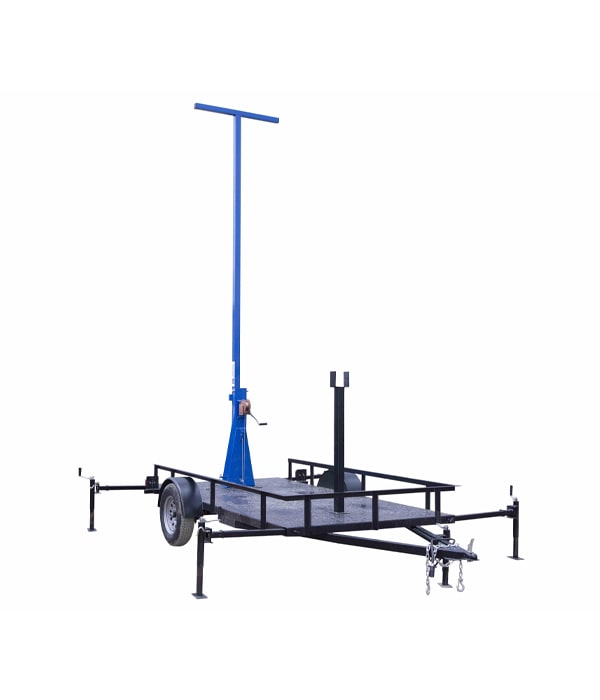

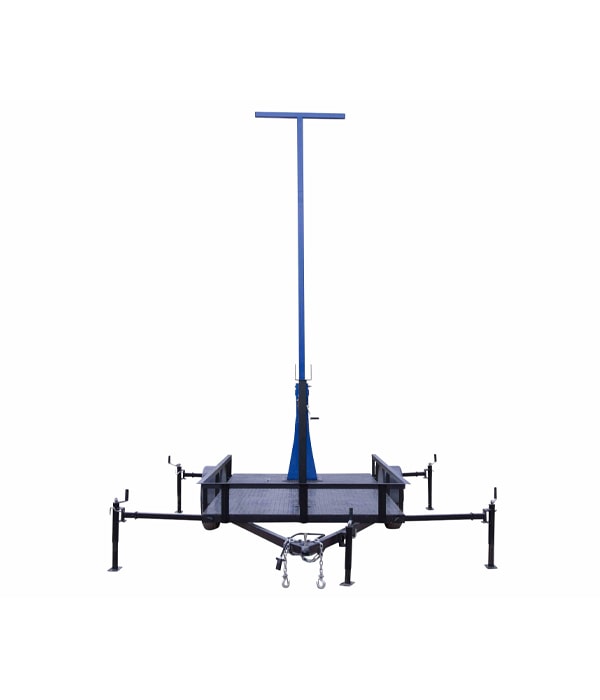

Larson Electronics LM-15-1S-TLR12 15 Foot Fold Over Light Mast on 12′ Trailer – Single Stage Tower – 360? Rotating Boom -Trailer Mount

Larson Electronics LM-15-1S-TLR12 15 Foot Fold Over Light Mast on 12′ Trailer – Single Stage Tower – 360? Rotating Boom -Trailer Mount

Description:

Light Mast Specs:

• ower Length: 15
• Mast Head Length: 44″
• Capacity: 150 lbs
• # of Stages: 1
• Materials: Steel
• Finish: Powder Coated – Gloss Blue
• Operation: (1) 1,000lbs Hand Winch, Electric Optional
• Cable: 3/16″ Galvanized Aircraft Cable

Trailer Specs:

• Materials: Steel
• Trailer Dimensions: 12`-L x 6.5`-W trailer bed
• Hitch: 2″ Ball Coupler
• Wiring: 7-Pin Flat
• Axle: 3,500lb
• Suspension: 3,500 Lb 4-Leaf Double Eye Springs

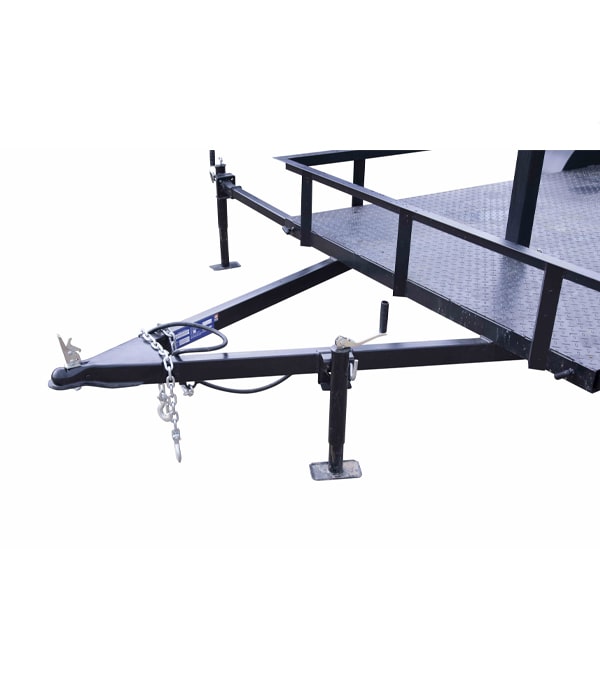

• Outriggers: (4) 34″ 1,000 Manual Crack Leveling Jacks – Retractable
• Wheels: (2) 15″ 5×4.5 Steel Rims
• Tires: ST205/75/D15 H188
• Weight: +-600 lbs
• Shipping: Common Freight
• Shipping Dimensions: ~11`-L x 8`-W x 8`-H
• Shipping Weight: +-700 lbs
• Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
• The customer ships the failed light mast to Larson Electronics at their expense. If the failure is a manufacturer defect, we will repair and/or replace the unit.
