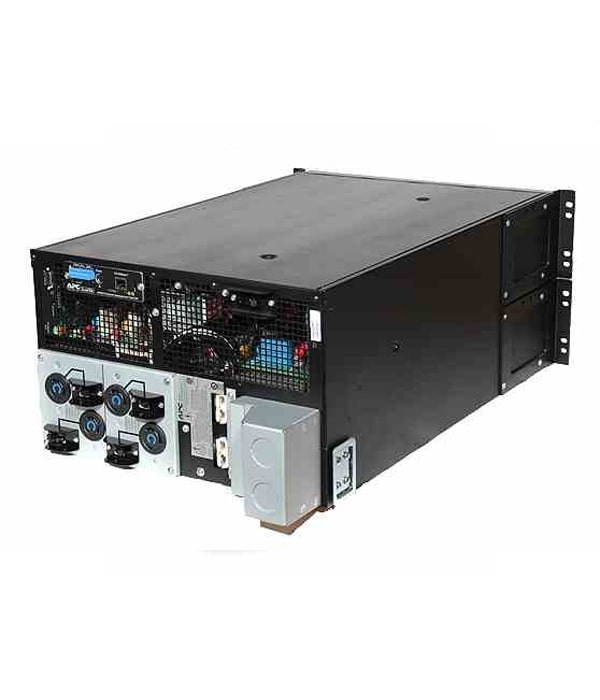

Larson Electronics MT-UPS-1P-208V-7.5KVA-208V-R1-N1 7.5KVA Uninterruptible Power Supply – 208V 50/60Hz, 1PH – 6000W – SLA Batteries

Larson Electronics MT-UPS-1P-208V-7.5KVA-208V-R1-N1 7.5KVA Uninterruptible Power Supply – 208V 50/60Hz, 1PH – 6000W – SLA Batteries

Description:

The MT-UPS-1P-208V-7.5KVA-208V-R1-N1 is an Industrial Uninterruptible Power Supply (UPS) for work sites and large facilities. This battery backup unit operates on single-phase 208V AC and features a recharge time of 2.2 hours. A control panel with LED display enables real-time monitoring and setup of the power device.

The MT-UPS-1P-208V-7.5KVA-208V-R1-N1 provides battery backup support for customer-provided equipment in work sites. This 7.5 KVA UPS features single-phase 208V AC 50/60 Hz (+/- 5Hz with auto-sensing) input and single-phase 208V AC, 50/60z (+/- 3Hz, user adjustable +/- 0.1) output. Equipped with an output power capacity and maximum configuration power of 6,000 watts/7500 VA, this unit contains a leakproof maintenance-free sealed lead acid with suspended electrolyte battery. The battery takes approximately 2.2 hours to recharge.

The sine-wave UPS features full time multi-pole noise filtering and an audible alarm that signals real-time status, low battery and overload condition. There are LED status displays and monitoring graphs on the control panel. The following interface ports are available on the unit: DB-9 RS-232, RJ-45 10/100 Base-T and Smart-Slot.

Wiring: This unit accepts hardwire, 3-wire (2PH + G) input connections. The following output connections are available: (1) Hardwire, 3-wire (2PH + G) (Battery Backup), (2) NEMA L6-20R (Battery Backup) and (2) NEMA L6-30R (Battery Backup).

Mounting: The MT-UPS-1P-208V-7.5KVA-208V-R1-N1 is compatible with surface mounting applications.

Specifications:

• Unit Type: Uninterruptible Power Supply
• Dimensions: 17″ x 10.35″ x 26.1″
• Weight: 245 lbs
• Input Voltage: 208V AC 1PH, 50/60Hz +/- 5Hz (Auto-sensing)
• Output Voltage: 208V AC 1PH, 50/60Hz +/- 3Hz (User Adjustable +/- 0.1)
• Output Power Capacity: 6000W/7500VA
• Max Configurable Power: 6000W/7500VA
• Output Voltage Distortion: Less Than 3%
• Crest Factor: 3:1, Double Conversion Online
• Waveform Type: Sine Wave
• Battery Type: Maintenance-free Sealed Lead-Acid w/ Suspended Electrolyte, Leakproof (4 Modules)
• Recharge Time: 2.2 Hours
• Filtering: Full-time Multi-pole Noise Filtering: 0.3% IEEE Surge Let-through: Zero Clamping Response Time
• Interface: DB-9 RS-232 , RJ-45 10/100 Base-T, Smart-Slot
• Pre-Installed SmartSlotT Cards: AP9619
• Control Panel: LED Status Display with Load and Battery Bar-graphs; On Line, On Battery, Replace Battery, Overload and Bypass Indicators
• Audible Alarm: Alarm When on Battery, Distinctive Low Battery Alarm and Overload Continuous Tone Alarm
• Emergency Power Off (EPO): Yes
• Operating Temp: 0?C to 40?C
• Operating/Storage Relative Humidity: 0-95%
• Operating Elevation: 0-10,000`
• Storage Temp: -15?C to 45?C
• Storage Elevation: 0-50,000`
• Materials: –
• Hardware Material: Zinc Plated Steel
• Enclosure Finish: Aluminum Lacquer Paint
• Mount: Surface Mount
• Input Connections: Hardwire 3-wire (2PH + G)
• Output Connections: (1) Hardwire 3-wire (2PH + G) (Battery Backup) , (2)
• Backup), (2) NEMA L6-30R (Battery Backup)
• Bypass: Internal
• *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
