| Specifications |
| Camera |
| Image Sensor |
1/3″ Progres s ive S can CMOS |
| Min. Illumination |
0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed |
1/3 s to 1/10,000 s |
| Lens |
2.8 mm: horizontal FOV:98°, vertical FOV: 55°, diagonal FOV: 114° |
| Lens Mount |
M12 |
| Day & Night |
IR cut filter |
| DNR |
3D DNR |
| Wide Dynamic Range |
120dB |
| Angle Adjustment |
Pan:0° ~ 360°, T ilt: 0° ~ 75°, Rotation: 0° ~ 360° |
| Compression Standard |
| Video Compression |
Main stream: H.265+/H.265/H.264 Zip+/H.264
Sub stream: H.265+/H.265/H.264 Zip+/H.264/MJPEG
Third stream: H.265+/H.265/H.264 Zip+/H.264 |
| H.264 / H.264+ Type |
Main / High Profile |
| H.265 / H.265+ Type |
Main Profile / Sub-stream support |
| Video Bit Rate |
32 Kbps ~ 16 Mbps |
| Dual Stream |
Support |
| Image |
| Max. Resolution |
2560 × 1440 |
| Main Stream |
50Hz:25fps (2560×1440,2304×1296,1920×1080) 60Hz: 30fps (2560×1440,2304×1296,1920×1080) |
| Sub Stream |
50Hz: 25fps (640 × 360, 352 × 288)60Hz: 30fps (640 × 360, 352 × 240) |
| Third Stream |
50Hz: 25fps (1280×720, 640×360, 352×288) 60Hz: 30fps (1280×720, 640×360, 352×240) |
| Others |
Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software |
| Behavioral Analysis |
Line crossing detection, intrusion detection |
| Network |
| Network Storage |
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger |
Motion Detection, VideoTampering, Network Disconnected, IP Address Conflicted, Illegal Login, HDD Full, HDD error |
| Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| General |
One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter |
| Standard |
ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| Interface |
| Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
| Reset |
Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| SVC |
H.264 and H.265 encoding |
| General |
Working Temperature
/Humidity |
-22 °F ~+140 °F(-30 °C ~ +60 °C ) Humidity 95% or less (non-condensing) |
| Power Supply |
DC 12V ± 25%,PoE(802.3af) |
| Power Consumption |
Max.6W |
| IR Range |
Up to 100ft(30m) |
| Weather Proof Ratings |
IP67 |
| Impact Protection |
IK10 |
| Dimensions |

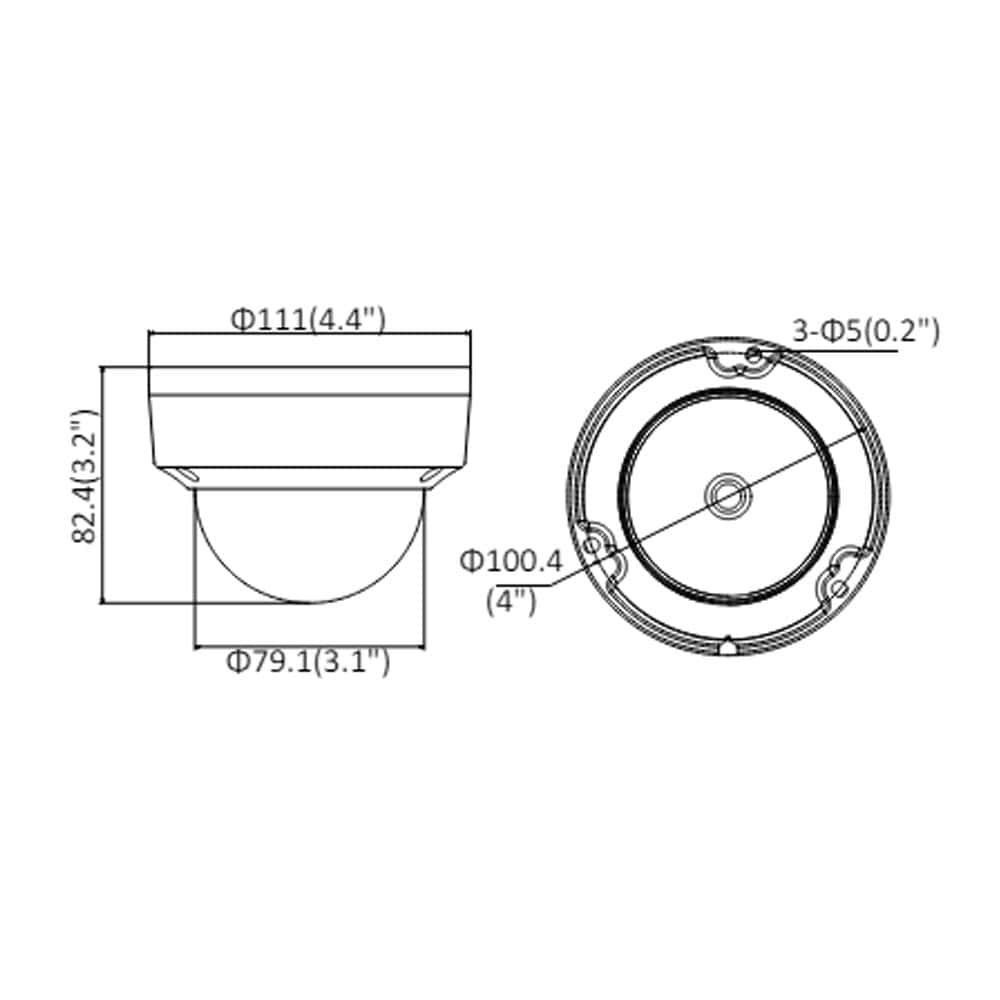

Φ4.4″ × 3.2″ (Φ111 × 82.4 mm) |
| Weight |
1.3lbs (610g) |
|
