LTS LTK-WRISTKIT Wrist Temperature Screening & Face Recognition Solution

Realtime Temperature and Face Mask Alerts, Abnormal Body Temperature Alert, 7 inch Touchscreen, Local offline recognition supported, Facial Detection time within 0.2 second, Web Interface and EZStation Software, Touchless Detection from Wrist, Temperature Range 86°F to 113°F, Measurement Deviation ≤ 0.9°F, Measurement Distance: 3/8 inch to 1 inch, Floor Stand• 45.6” x 4.7” x 1.1” Stand, 11.0” x 8.7” Base, Stainless Steel, Weight 15 lb

LTS LTK-WRISTKIT Wrist Temperature Screening & Face Recognition Solution



Safe temperature screening solution is highly in demand right now. Facility managers, store and restaurants owners are looking for safe way to reopen business. CDC recommends employers to measure employee’s body temperature before they enter working areas.



No Contact Measurement

The wrist temperature measurement module can detect human body temperature without touching skin surface.



Instant Temperature Reading

Ideal for high traffic areas, the wrist temperature measurement module gets a reading in 0.2 second per person, total 30 people in a minute, which results in no congestion at access points.



99% Accuracy

The margin of error for temperature reading is ? 0.9?F



Access at a Glace

Supported by deep learning algorithm, the facial terminal can recognize a face in less than 0.2 second.



Face Mask Alerts

If abnormal high body temperature is detected and the individual is not wearing a mask, Alarm will be triggered.



Features of the Main Facial Recognition Terminal

  • Realtime Temperature and Face Mask Alerts
  • Abnormal Body Temperature Alert
  • 7 inch Touchscreen
  • Local offline recognition supported
  • Facial Detection time within 0.2 second

Key Features of the Wrist Temperature Module

  • Touchless Detection from Wrist
  • Temperature Range 86?F to 113?F
  • Measurement Deviation ? 0.9?F
  • Measurement Distance: 3/8 inch to 1 inch

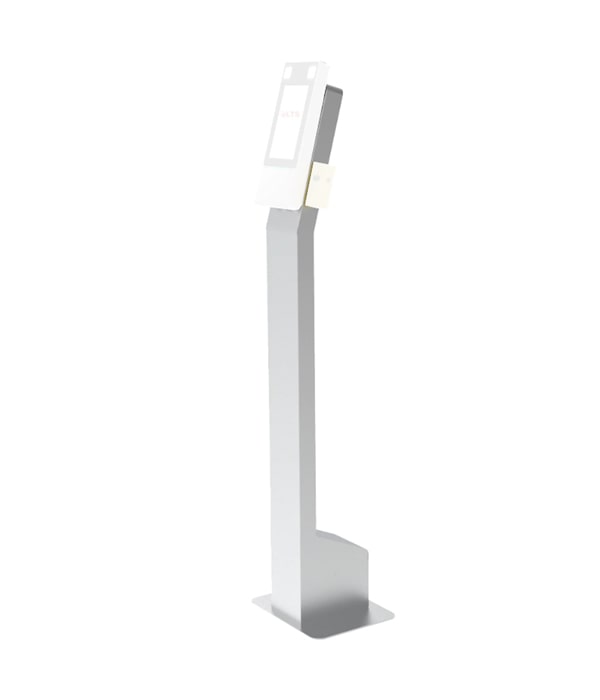

Key Features of the Floor Stand

  • T45.6″ x 4.7? x 1.1″ Pole with 11.0″ x 8.7″ Base
  • Stainless Steel
  • Weight 15 lb
  • Power supply PWR-DC1202-US-NB in a separate package

Reopen Safely by Temperature Screening

<p To ensure customers? and employees? safety, it is important to maintain social distancing and encourage people with flu-like symptoms to stay away from crowded business areas.

LTS’s new thermal wrist temperature measurement module uses a non-contact approach to detect human body temperature in 0.2 second with an accuracy of 99%.

The facial recognition terminal can instantly recognize and register incoming individuals. It also sends out alarms when the individual is not wearing a mask or has unusually high body temperature.

The wrist temperature measurement and facial recognition unit enable store owners and facility managers to identify people with abnormally high body temperatures in order to keep them outside the building. Thus, these features significantly reduce the risk of exposure to bacteria and germs.



Ideal for Commercial Areas & High Traffic Points

<p The wrist temperature screening and facial recognition solution can be used in various business and public transportation scenarios.



Brand

Warranty

Specifications

Temperature measurement
Temperature range 30 °C to 45 °C (86 °F to 113 °F)
Sensor Vanadium Oxide uncooled sensor
Resolution 120 × 160
Frame rate 25 fps
Measurement accuracy 0.1 °C
Measurement deviation ± 0.5 °C, without black body calibration
Measuring distance 0.3 to 1.8 m
Screen
Size 7-inch
Type Touch screen
Camera
Pixel 2 MP
Lens Dual-lens
Network
Wired network Support, 10/100/1000 Mbps self-adaptive
Interface
Network interface 1
RS-485 1
Wiegand 1
Lock output 1
Exit button 1
Door contact input 1
IO input 2
IO output 1
TAMPER 1
Capacity
Card capacity 6000
Face capacity 6000
Event capacity 100,000
Authentication
Card type Mifare 1 card
Card reading distance 0 to 5 cm
Card reading duration < 1 s
Face recognition duration < 0.2 s per person
Face recognition distance 0.3 to 1.8 m
Function
Face anti-spoofing Support
Live view Support
Audio prompt Support
Others
Power supply 12 VDC/2 A


Working temperature

0 °C to 50 °C (32 °F to 122 °F)

For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F)

Working humidity 10 to 90% (No condensing)
Application environment Indoor and windless environment use only
