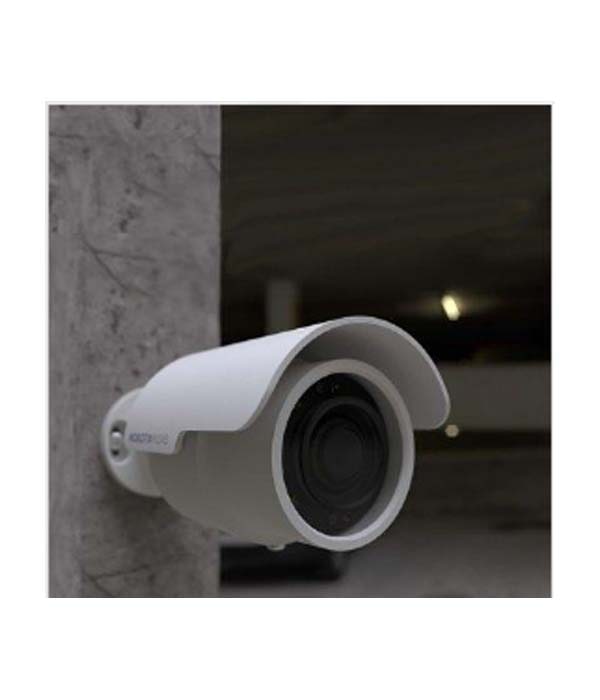

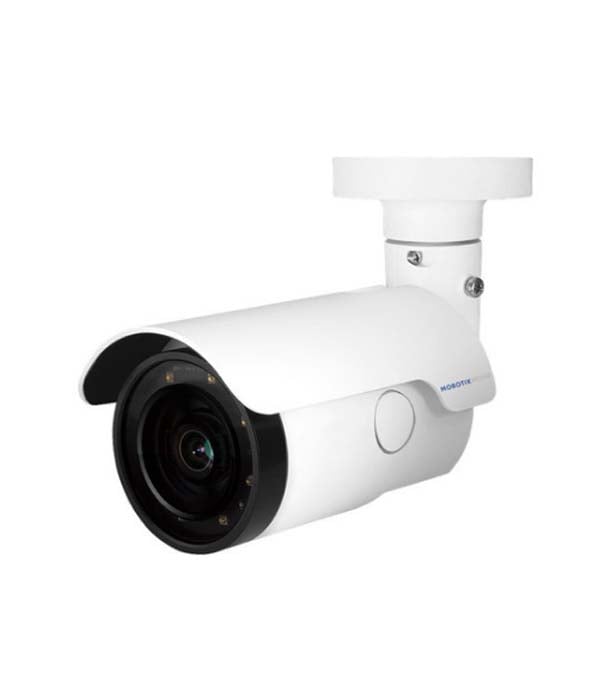

Mobotix MX-BC2A-2-IR 2MP MOVE Bullet WDR IP Camera 2.8-12mm

SKU : MX-BC2A-2-IR Category

MOBOTIX MOVE Bullet Network Camera BC2-2-IR ? Image Resolution: 2MP (1920×1080), 1/2.7″ Progressive CMOS ? Weatherproof ONVIF S/G/T bullet camera with built-in IR LEDs (up to 15 m) for day and night operation ? Automatic changeover from color to B / W image (mechanical IR cut filter) ? Manually adjustable vario lens (F1.4: 2.8 to 12 mm, viewing angle H: 96.67 ? -34.13 ? – V: 52.21? – 19.24?) ? IP66 ? Ambient temperature -30 to 60?C (-22? to 140? F), humidity 10 to 95% ? Video codecs: H.264, MJPEG (up to 4 streams simultaneously ) ? WDR (up to 130 dB) ? Max. Frame rate: 2MP @ 30 fps (H.264, H.265 with and without WDR enabled); MJPEG: 1080p @ 30 fps ? Power supply: PoE IEEE 802.3af ? MTBF: 95.000h ? Warranty: 2 years

Mobotix MX-BC2A-2-IR 2MP MOVE Bullet WDR IP Camera 2.8-12mm

MOBOTIX MOVE Bullet Network Camera BC2-2-IR ? Image Resolution: 2MP (1920×1080), 1/2.7″ Progressive CMOS ? Weatherproof ONVIF S/G/T bullet camera with built-in IR LEDs (up to 15 m) for day and night operation ? Automatic changeover from color to B / W image (mechanical IR cut filter) ? Manually adjustable vario lens (F1.4: 2.8 to 12 mm, viewing angle H: 96.67 ? -34.13 ? – V: 52.21? – 19.24?) ? IP66 ? Ambient temperature -30 to 60?C (-22? to 140? F), humidity 10 to 95% ? Video codecs: H.264, MJPEG (up to 4 streams simultaneously ) ? WDR (up to 130 dB) ? Max. Frame rate: 2MP @ 30 fps (H.264, H.265 with and without WDR enabled); MJPEG: 1080p @ 30 fps ? Power supply: PoE IEEE 802.3af ? MTBF: 95.000h ? Warranty: 2 years

Specifications

  • Manufacturer MOBOTIX AG
  • Category CCTV>IP cameras
  • Model code Mx-BC2A-2-IR
  • Chip Inch Size 1/2.7 inch
  • Colour Type Colour / Monochrome
  • Resolution 2 MP resolution
  • Sensitivity Lux 0.008 Lux
  • Electrical Specifications Voltage: PoE Power Consumption: max. 6.78 W
  • Focal Length mm 2.8 ~ 12
  • Wide Dynamic Range Yes
  • White Balance Yes

Features

  • Make: MOBOTIX
  • Model code: Mx-BC2A-2-IR
  • Chip Inch Size: 1/2.7 inch
  • Colour Type: Colour / Monochrome
  • Resolution: 2 MP resolution
Brand

Resolution

Lens Type

Lens Size

Technology

Compression

, ,
