Potter Electric Signal F5000-103 AUTO ALIGN BEAM DETECTOR 27FT to 330FT

Potter Electric Signal F5000-103 AUTO ALIGN BEAM DETECTOR 27FT to 330FT

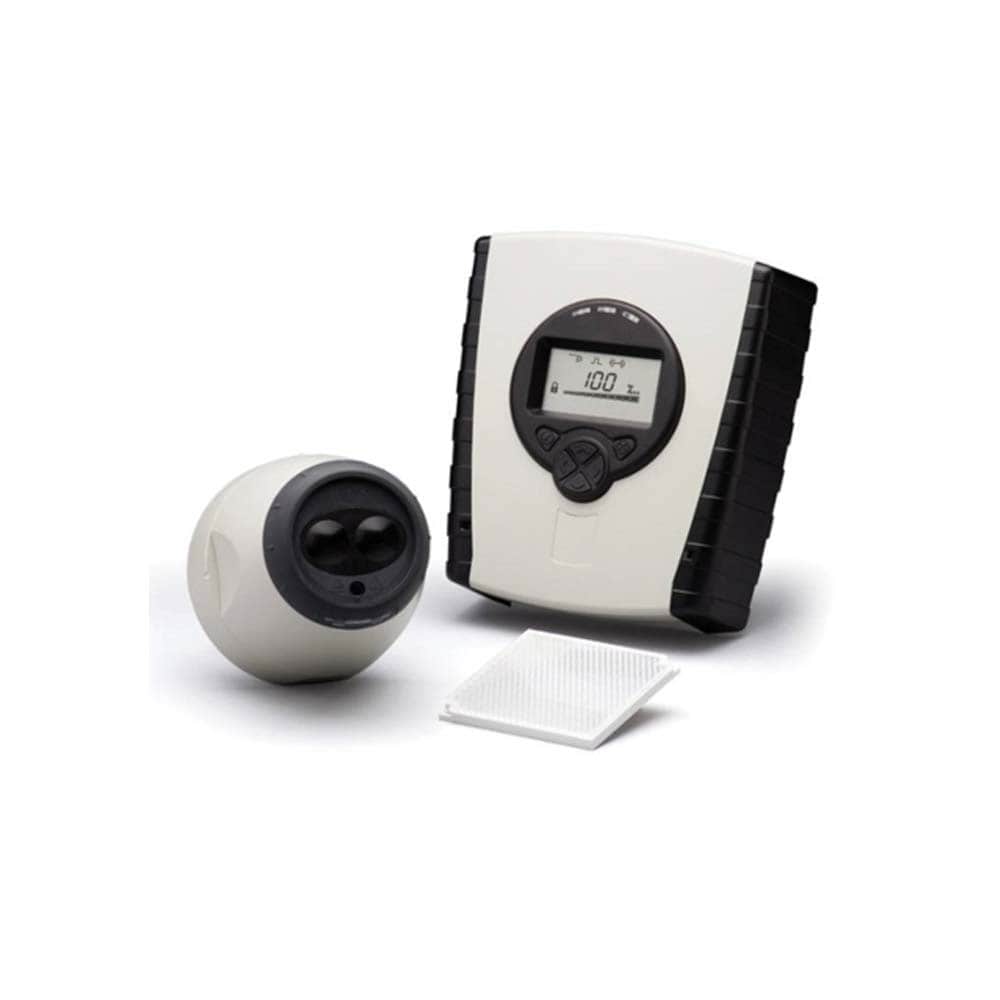

The Potter Electric Signal F5000-103 Auto Align Beam Detector is a state-of-the-art fire detection system designed to provide early warning and reliable fire detection in large spaces and open areas. This beam detector is specifically designed to detect the presence of smoke or fire by utilizing an infrared beam.

The F5000-103 Auto Align Beam Detector is its impressive detection range. It can cover distances ranging from 27 feet up to 330 feet, making it suitable for a wide range of applications and environments. This extensive coverage ensures that the detector can effectively monitor large areas and provide timely detection in case of a fire event.

The auto-align feature of the detector is another notable aspect. It incorporates a motorized head that automatically aligns the transmitter and receiver, eliminating the need for manual adjustment. This not only saves installation time but also ensures precise alignment for optimal performance and reliable detection.

The F5000-103 Beam Detector is designed to be highly sensitive to the presence of smoke or fire, while also minimizing false alarms. It utilizes advanced signal processing algorithms to differentiate between genuine fire-related signals and potential sources of false alarms, such as dust or ambient light changes. This helps to maintain a high level of accuracy and reliability in fire detection.

In terms of installation and maintenance, the F5000-103 Auto Align Beam Detector offers convenient features. It has built-in alignment LEDs that provide visual guidance during the installation process, simplifying the alignment procedure. Additionally, the detector is equipped with self-cleaning optics that help to maintain a clear and unobstructed beam path, reducing the need for frequent cleaning or maintenance.

The Potter Electric Signal F5000-103 Auto Align Beam Detector is a high-quality and reliable fire detection solution for large spaces. With its impressive detection range, auto-align functionality, and advanced features, it provides effective fire monitoring and early warning capabilities to enhance the safety and security of various commercial and industrial environments.

Features:

• Dual Detection: The beam detector uses both infrared and ultraviolet sensing technologies to provide reliable and accurate fire detection.
• Adjustable Sensitivity: The sensitivity of the detector can be adjusted to accommodate different environmental conditions and minimize false alarms.
• Automatic Compensation: The detector automatically compensates for changes in ambient light levels to maintain consistent performance.
• Fault Monitoring: The detector continuously monitors its own operation and reports any faults or malfunctions, ensuring reliable operation.
• Tamper Detection: The detector is equipped with tamper detection features to alert if there is any unauthorized interference or tampering.
• Remote Monitoring: The detector can be integrated into a larger fire alarm system for remote monitoring and control.

Specifications:

• Detection Range: 27 feet (8 meters) to 330 feet (100 meters)
• Operating Voltage: 10.5V to 33V DC
• Current Consumption: Standby: 22mA, Alarm: 80mA
• Operating Temperature: -4?F to 122?F (-20?C to 50?C)
• Mounting: Wall or ceiling mount
• Communication: Relay output for alarm signal transmission
• Dimensions: 9.25″ (234mm) height x 6.14″ (156mm) width x 3.78″ (96mm) depth
• Weight: 3.31 lbs (1.5 kg)
