Sargent KP-8278-LNB-26D-RH 8200 Series KP8278 Keypad Entry w/ Cylinder less Deadbolt Mortise Lock

Sargent KP-8278-LNB-26D-RH 8200 Series KP8278 Keypad Entry w/ Cylinder less Deadbolt Mortise Lock

Designed for openings that require standalone, basic authorized entry capabilities, KP Series keypad locks are battery-powered and self-contained to allow for easy, individual keypad programming according to the user?s opening requirements and/or preferences.

Combining the non-volatile memory of a motor-driven microprocessor-based controller with the physical security of ANSI/BHMA Grade 1 mechanical hardware, KP Series locks provide the security and functionality needed to locally control access to storerooms, offices, stairwells, conference rooms and restrooms.

The Keypad Operated Products motorized 8200 Series Mortise Lock has a clean, crisp design and is available with the SARGENT Studio Collection, Coastal Series and traditional lever designs along with a full array of finishes. The mortise locks offer economical access control solutions for stand-alone applications. The mortise locks are available with or without deadbolt and with or without cylinder override. KP Series mortise locks feature Ecoflex? technology for improved battery life.

Specifications

• Finish: 626/US26D-Satin Chrome
• Finish Description: Satin Chrome
• Function: 78-Entry/Cylinder Override-No Deadbolt
• Grade: ANSI/BHMA Grade 1
• Keyblank Grouping: SRGT-LA-6-1
• Keying Charges: CCAM
• Keyway: Sargent LA

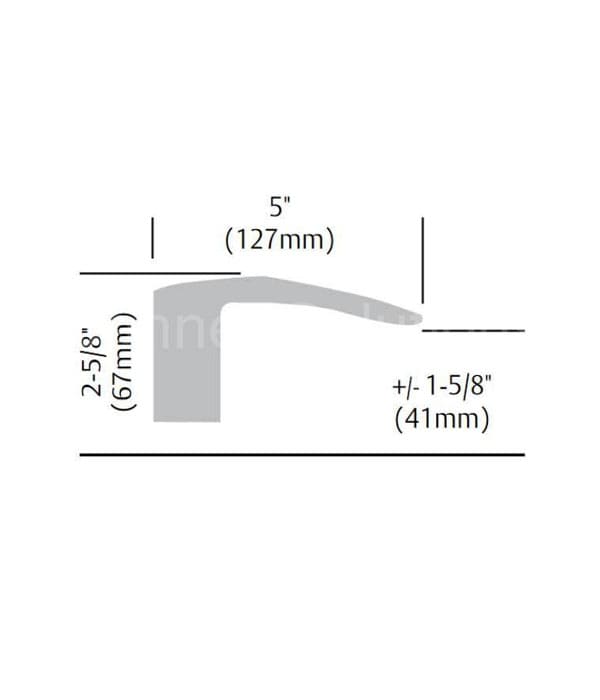

• Lever Style: B-Lever
• Manufacturer: Sargent
• Product Type: Electronic Mortise Lock
• Rose/Escutcheon Trim: LN-Rose
• Series: Parts/Accessories

Benefits

• Strength & Reliability:
  Far exceeds independently verified testing. Verified for over 14 million cycles
• Ease of Install:
  Pre-assembled components make installation fool-proof
• Customizable:
  A wide variety of functions, lever designs and finishes make this lock ideal for all types of applications

Certification Compliance

• • ANSI/BHMA:
    Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims. ANSI/ASTM F476-84 Grade 40 with concealed mortise cylinder.

Note: LFIC (Removable) Cylinders and SFIC Cylinders do not meet Security Grade 1 requirements.

• ADA:
  Meets A117.1 Accessibility Code
  Meets BOMA International 4.13.8 Complies with American Disability Act; Consult local authorities
• UL-cUL:
  UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing
• Positive Pressure:
  Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
• California State Reference Code:
  (Formerly Title 19, California State Fire Marshal Standard)
  All levers with returns comply; levers return to within 1/2″ (13mm) of door face

Windstorm Certifications

• Florida Building Code:
  FL2998
• UL Certification Directory:
  ZHEM.R21744 ? Latching Hardware

Maximum Strength & Durability

• Certified to and exceeds ANSI/BHMA A156.13, Series 1000, Operational Grade 1 and Security Grade 1 with all standard trims
• Exceeds cycle testing requirements by 14 times the ANSI/BHMA A156.13 Grade 1 standard
• Case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64″ (3mm) (.109″)
• 1/8″ (.125″) cold-rolled steel inside front holds lock securely in door
• Heavy duty wrought steel hubs and high carbon steel spring cartridge provide superior strength and cycle life for 8200 locks
• Latchbolt is stainless steel with 3/4″ (19mm) projection one-piece, anti-friction reversible latch
• Deadbolt is one-piece hardened stainless steel with 1″ (25mm) projection
• Optional 8200 stainless steel hubs for Institutional setting (specify 3- option)
• Patent pending and/or patent www.assaabloydss.com/patents

Maximum Flexibility

• Fast and easy installation. Lock is easily re-handed without removing parts or opening the lock case
• Aesthetic design. Many escutcheon and lever styles available to match a wide range of styles
• Many standard architectural grade finishes, including Polished Nickel (US14) & Satin Nickel (US15) finishes
• 53 functions including 4 electrical functions. The most in the industry for a broad range of applications
• Versatile. Offered for door thicknesses ranging from 1-3/8″ (35mm) to 6″ (152mm)
• Available with vandalism deterrent trim and/or secure fastener options Torx? and spanner screws for high abuse conditions
• Available with push/pull trim, perfect for hospital applications
• Status indicator options provide peace of mind on the locked/unlocked status of a door

Innovation

• First in the industry to offer a multi-functional lockbody that embodies 8 functions in 1 lockbody
• Easy operation. Only 30? of lever rotation required to retract latchbolt
• Lever springs contained inside of the lock case for easier installation
• SARGENT?s revolutionary MicroShield? available. This antimicrobial silver-based finish coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. EPA and NSF approved and FDA listed
• Broad offering of electro-mechanical configurations offer higher security for the most demanding access/egress control applications featuring ElectroLynx? quick connectors

Security

• Multiple security trim options available: free-wheeling, security escutcheon and anti-vandal pull trim (patent pending)
• Security key systems available
  (Degree, Signature, Keso, Keso F1, & XC)
