Sargent KP-8278-LNJ-26D-LH-LC 8200 Series KP8278 Keypad Entry w/ Cylinder less Deadbolt Mortise Lock
Stand Alone Keypad Mortise Lock Without Deadbolt, LN Rose, J Lever, US26D Satin Chrome, Left Hand, Less Cylinder
Specifications
- Finish: 626/US26D-Satin Chrome
- Finish Description: Satin Chrome
- Function: 78-Entry/Cylinder Override-No Deadbolt
- Grade: ANSI/BHMA Grade 1

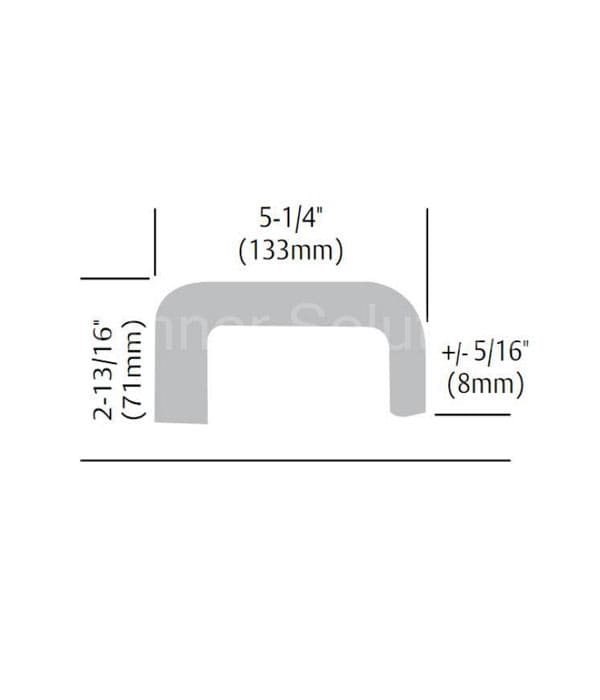

- Lever Style: J-Lever
- Manufacturer: Sargent
- Product Type: Electronic Mortise Lock
- Rose/Escutcheon Trim: LN-Rose
- Series: Parts/Accessories
Features
- Non-volatile memory
- All programming at keypad
- Keypad made of ultraviolet stable textured material
- Operating temperature for keypad: 4?F ? 140?F
- Adjustable unlock time
- Use on exterior doors with weatherseal gasket and shroud
- UL Listed for fire doors (12 – required for KP8800/8900 Series)
- UL Listed to Canadian safety standards
- Built-in remote ?Request to Enter? requires wire harness (52-2071)
- Low battery indication – four chirps after code entry
- Operates with 4 “C” alkaline batteries (included)
- Typical 40,000 operations per set of batteries
- LEDs on keypad:
Green indicates unlocked
Yellow indicates programming mode
Flashing green and solid yellow indicates deadbolt thrown
User Codes
- Over 1,100,000 possible user combinations
- 100 user codes
- Operates utilizing any one to six digits per code – digits may be repeated or start with “0”
- One master code – assigns emergency, supervisory and user codes, allows access during low battery
- One emergency code – allows entry when deadbolt is thrown (KP8276/KP8277) or during low battery
- One supervisory code – allows temporary lockout of selected users, changes unlock time duration, requests infrared interrogation output, and may add user codes
- “One time” user codes allows visitors “one time” entry
- Unit can be put in “passage only” mode at keypad
Mechanical Features
- Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims
- Motor driven 8200 Series mortise lock
- Stainless steel 3/4″ (19mm) projection one-piece, anti-friction reversible latch
- Stainless steel non-handed auxiliary deadlatch
- Specify hand on order. Easily field reversible without disassembling lock body
- Includes code to activate horn when keypad buttons are pushed
- Lever trim through-bolted for increased security and durability
- 1-3/4″ (44mm) door standard. Consult factory for other thicknesses
- 4-3/4″ (121mm) minimum stile for electrical function locks
Keypad Operated Products Mortise Lock Functions
- All KP Mortise functions feature
Deadlatch deadlocks latchbolt
Inside lever retracts latchbolt (and deadbolt simultaneously) at all times - Cylinder Override Function features
Key outside retracts latchbolt
Cylinder override requires a #41 Cylinder (1-1/8″) - Deadbolt Function features:
When deadbolt thrown, outside lever operable only with Emergency or Master code
1″ hardened stainless steel deadbolt
Thumbturn retracts and projects deadbolt - Inside Escutcheon
Zinc die cast
Projection at bottom 9/32″ (7mm)
Projection at top 2-1/8″ (54mm)
