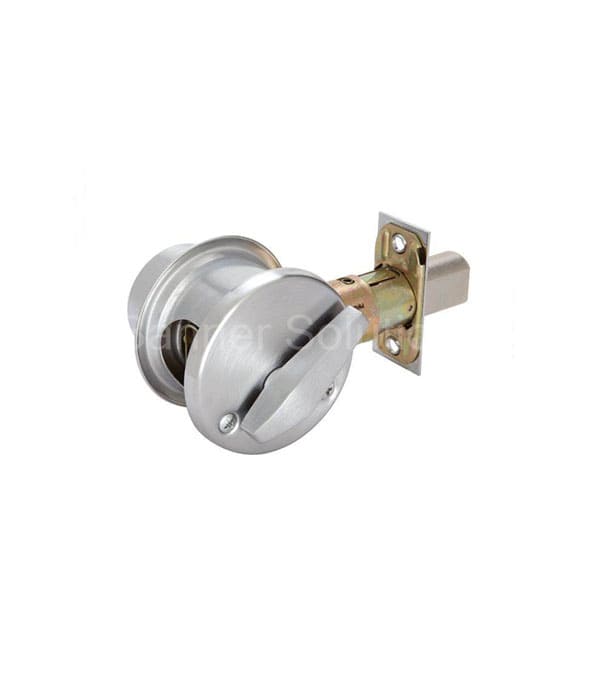

Schlage Commercial B250PD-626-12-100-10-025 B250PD Single Cylinder Deadbolt
Single Cylinder Outside, Holdback Turn Inside, 5-Pin Cylinder,”C” Keyway, 2-3/8″ Backset Square Corner Deadlatch, 4-7/8″ ANSI Strike. 626 Satin Chrome
Specifications
- Backset: 2-3/8 Inch, 1 x 2-1/4 Inch, Square Corner
- Cylinder Type: P_6_Pin_Conventional
- Cylinder Type: P-6 Pin Conventional (Keyed 5)
- Finish: 626/US26D-Satin Chrome
- Finish Description: Satin Chrome
- Function: 50-Single Cylinder Deadlatch (Night Latch)
- Grade: ANSI/BHMA Grade 2
- Keyblank Grouping: BALD-SCHL-C-6-1
- Keying Charges: CCAM
- Keyway: Schlage C
- Manufacturer: Schlage Commercial
- Product Type: Auxiliary Lock
- Rose/Escutcheon Trim: Square Rose
- Series: B250 Series
- Strike: ANSI, 1-1/4″ x 4-7/8″, 1-1/4″ Lip, Square Corner
Certifications
- ANSI:
B250 Series meet or exceed A156.36-2010 Grade 2 strength and operational requirements. - UL437 Listed locking cylinder optional:
Specify Primus 20-500 Series cylinder B250 Series Grade 2 products. - ADA compliant:
Schlage Lock Company offers a wide selection of locks designed to meet the Americans with Disabilities Act.
