Schlage Commercial B252PD-605-12-103-10-001 B252PD Double Cylinder Deadbolt

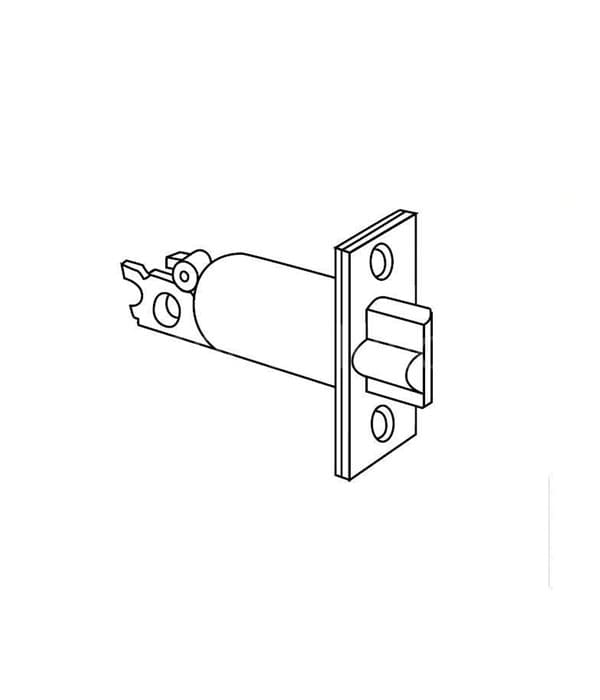

Double Cylinder, 5-Pin Cylinder,”C” Keyway, 2-3/4″ Backset Square Corner Deadlatch, 2-3/4″ T-Strike. 605 Bright Brass
Specifications
- Backset: 2-3/4 Inch
- Cylinder Type: P_6_Pin_Conventional
- Cylinder Type: P-6 Pin Conventional (Keyed 5)
- Finish: 605/US3-Bright Polished Brass
- Finish Description: Bright Polished Brass
- Function: 52-Double Cylinder Deadlatch
- Grade: ANSI/BHMA Grade 2
- Keyblank Grouping: SCHL-C-6-1
- Keying Charges: CCAM
- Keyway: Schlage C
- Manufacturer: Schlage Commercial
- Product Type: Auxiliary Lock
- Rose/Escutcheon Trim: Round Rose
- Series: B250 Series
- Strike: T-Strike, 1-1/8″ x 2-3/4″, 1-1/4″ Lip, Sq Corner
Certifications
- ANSI:
B250 Series meet or exceed A156.36-2010 Grade 2 strength and operational requirements. - UL437 Listed locking cylinder optional:
Specify Primus 20-500 Series cylinder B250 Series Grade 2 products. - ADA compliant:
Schlage Lock Company offers a wide selection of locks designed to meet the Americans with Disabilities Act.
