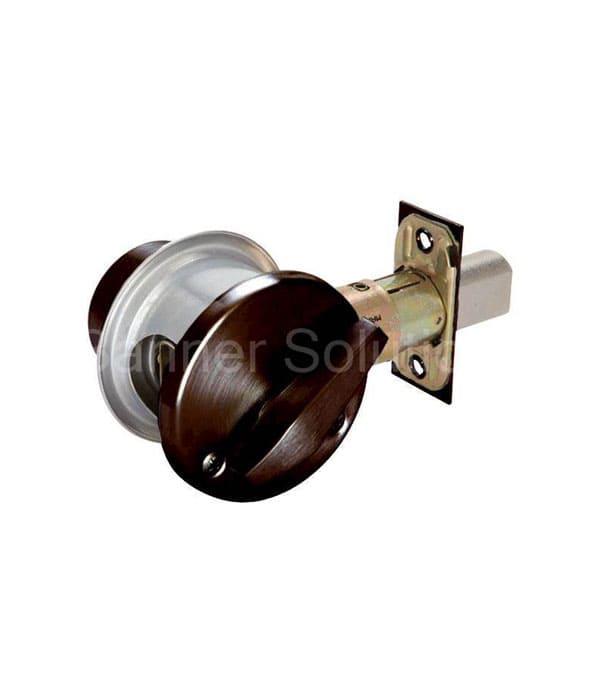

Schlage Commercial B560P-613-12-287-10-094-C123 B560P Single Cylinder Deadbolt
Single Cylinder Deadbolt Lock, Grade 2, 6-Pin Cylinder,”C123″ Keyway, Adjustable Triple Option Bolt, 2-3/4″ Strike Square Corner. 613 Oil Rubbed Bronze
Specifications
- Backset: 2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
- Cylinder Type: P_6_Pin_Conventional
- Cylinder Type: P-6 Pin Conventional (Keyed 5)
- Finish: 613/US10B-Oil Rubbed Dark Bronze
- Finish Description: Oil Rubbed Dark Bronze
- Function: 60-Single Cylinder Deadlatch
- Grade: ANSI/BHMA Grade 2
- Keyblank Grouping: SCHL-C123-6-1
- Keying Charges: CCAM
- Keyway: Schlage C123
- Manufacturer: Schlage Commercial
- Product Type: Auxiliary Lock
- Rose/Escutcheon Trim: Round Rose
- Series: B500 Series

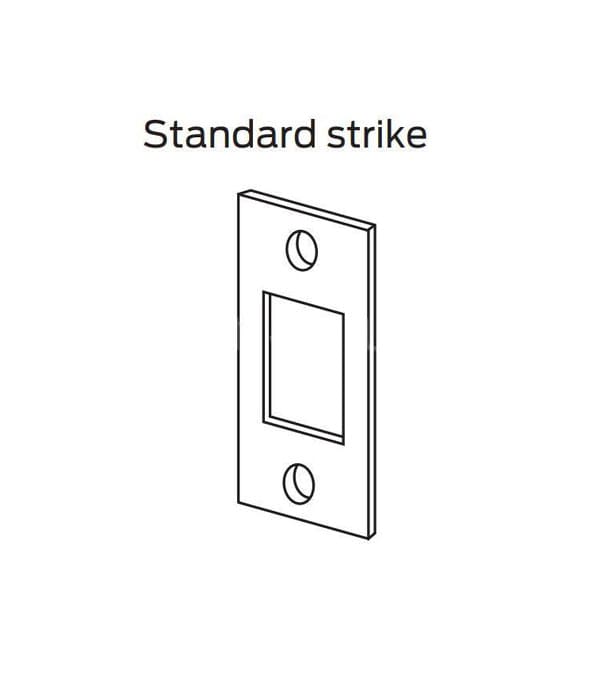

- Strike: Deadbolt, 1-1/8″ x 2-3/4″,Square Corner
Certifications
- ANSI:
B250 Series meet or exceed A156.36-2010 Grade 2 strength and operational requirements. - UL / cUL:
UL 10B and UL 10C listing optional for B500 Series as auxiliary locks. Letter F and UL symbol on latch front indicate listing. - UL437 Listed locking cylinder optional:
Specify Primus 20-500 Series cylinder B250 Series Grade 2 products. - ADA compliant:
Schlage Lock Company offers a wide selection of locks designed to meet the Americans with Disabilities Act.
