Schlage Commercial B662P-626-12-630-10-094 B662P Double Cylinder Deadbolt
Double Cylinder Deadbolt Lock, 6-Pin Cylinders,”C” Keyway, 2-3/8″ Backset Square Corner Bolt, 2-3/4″ Strike Square Corner. 626 Satin Chrome
Specifications
- Backset: 2-3/8 Inch, 1 x 2-1/4 Inch, Square Corner
- Cylinder Type: P_6_Pin_Conventional
- Cylinder Type: P-6 Pin Conventional (Keyed 5)
- Finish: 626/US26D-Satin Chrome
- Finish Description: Satin Chrome

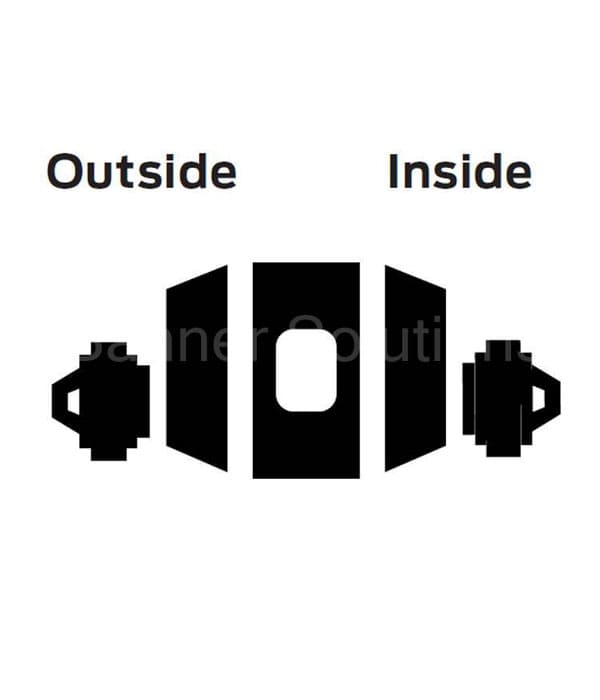

- Function: 62-Double Cylinder Deadbolt
- Grade: ANSI/BHMA Grade 1
- Keyblank Grouping: SCHL-C-6-1
- Keying Charges: CCAM
- Keyway: Schlage C
- Manufacturer: Schlage Commercial
- Product Type: Auxiliary Lock
- Rose/Escutcheon Trim: Round Rose
- Series: B600 Series

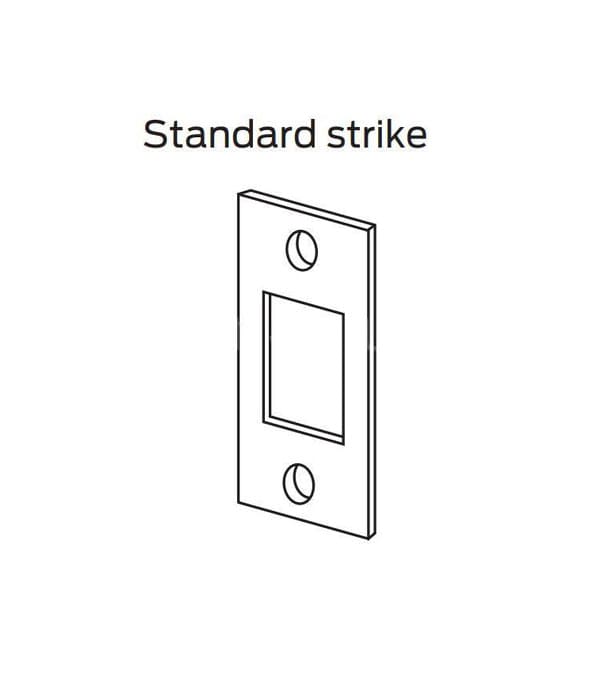

- Strike: Deadbolt, 1-1/8″ x 2-3/4″, Square Corner
- UPC: 043156958139
Certifications
- ANSI:
B600 Series meet or exceed A156.36-2010 Grade 2 strength and
operational requirements. - UL / cUL:
B600 Series locks are UL10B Listed auxiliary locks for A label single doors, 4′ x 8′. - ADA compliant:
Schlage Lock Company offers a wide selection of locks designed to
meet the Americans with Disabilities Act.
