Schlage Commercial B662P-626-12-630-10-094-C123 B662P Double Cylinder Deadbolt

SKU : B662P-626-12-630-10-094-C123 Category

Double Cylinder Deadbolt Lock, 6-Pin Cylinders,”C123″ Keyway, 2-3/8″ Backset Square Corner Bolt, 2-3/4″ Strike Square Corner. 626 Satin Chrome

Schlage Commercial B662P-626-12-630-10-094-C123 B662P Double Cylinder Deadbolt

Double Cylinder Deadbolt Lock, 6-Pin Cylinders,”C123″ Keyway, 2-3/8″ Backset Square Corner Bolt, 2-3/4″ Strike Square Corner. 626 Satin Chrome

Specifications

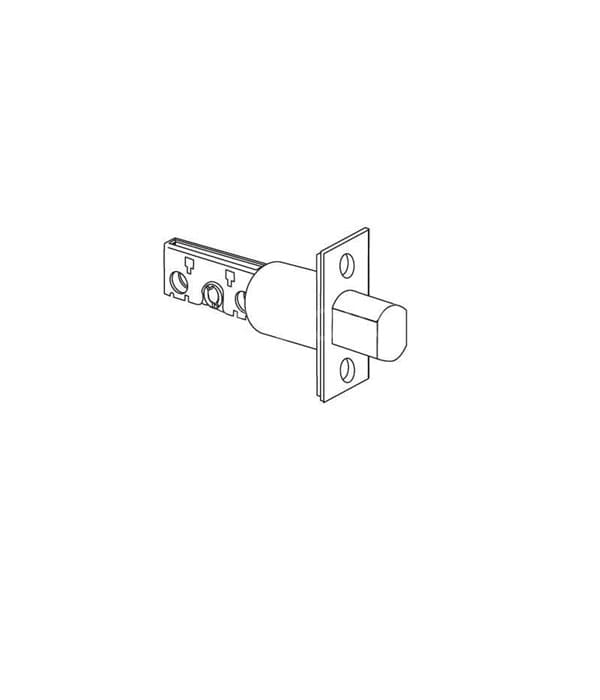

  • Backset: 2-3/8 Inch, 1 x 2-1/4 Inch, Square Corner
  • Cylinder Type: P_6_Pin_Conventional
  • Cylinder Type: P-6 Pin Conventional (Keyed 5)
  • Finish: 626/US26D-Satin Chrome
  • Finish Description: Satin Chrome

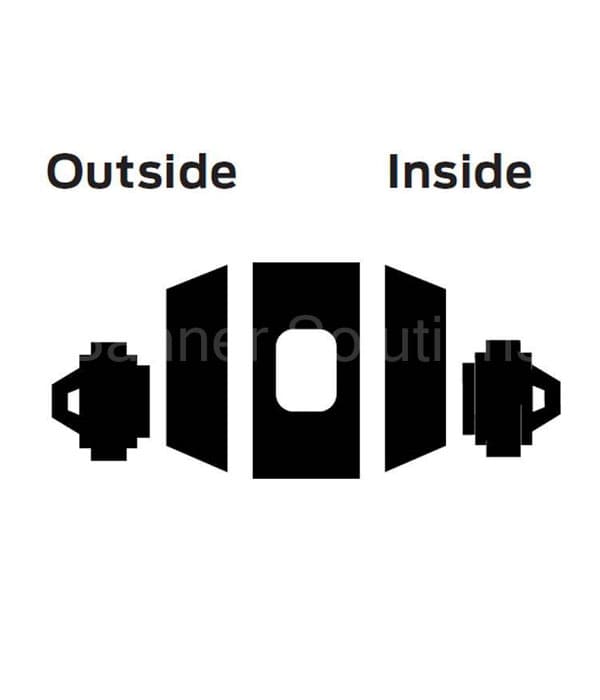

  • Function: 62-Double Cylinder Deadbolt
  • Grade: ANSI/BHMA Grade 1
  • Keyblank Grouping: SCHL-C123-6-1
  • Keying Charges: CCAM
  • Keyway: Schlage C123
  • Manufacturer: Schlage Commercial
  • Product Type: Auxiliary Lock
  • Rose/Escutcheon Trim: Round Rose
  • Series: B600 Series

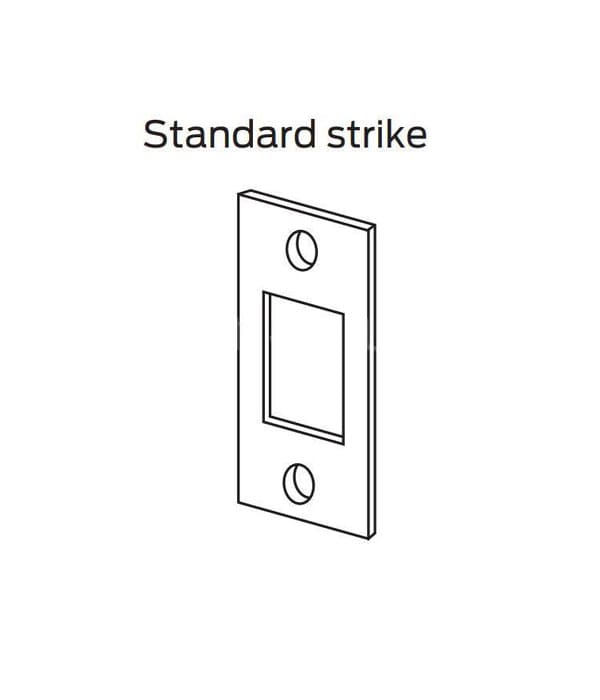

  • Strike: Deadbolt, 1-1/8″ x 2-3/4″, Square Corner

Certifications

  • ANSI:
    B250 Series meet or exceed A156.36-2010 Grade 2 strength and operational requirements.
  • UL / cUL:
    UL 10B and UL 10C listing optional for B500 Series as auxiliary locks. Letter F and UL symbol on latch front indicate listing.
  • ADA compliant:
    Schlage Lock Company offers a wide selection of locks designed to meet the Americans with Disabilities Act.
Brand

B662P-626-12-630-10-094-C123-Catalog

Download

B662P-626-12-630-10-094-C123-DeadBolts

Download

B662P-626-12-630-10-094-C123-Manual

Download
